Cisco TelePresence IX5200 Installation Guide

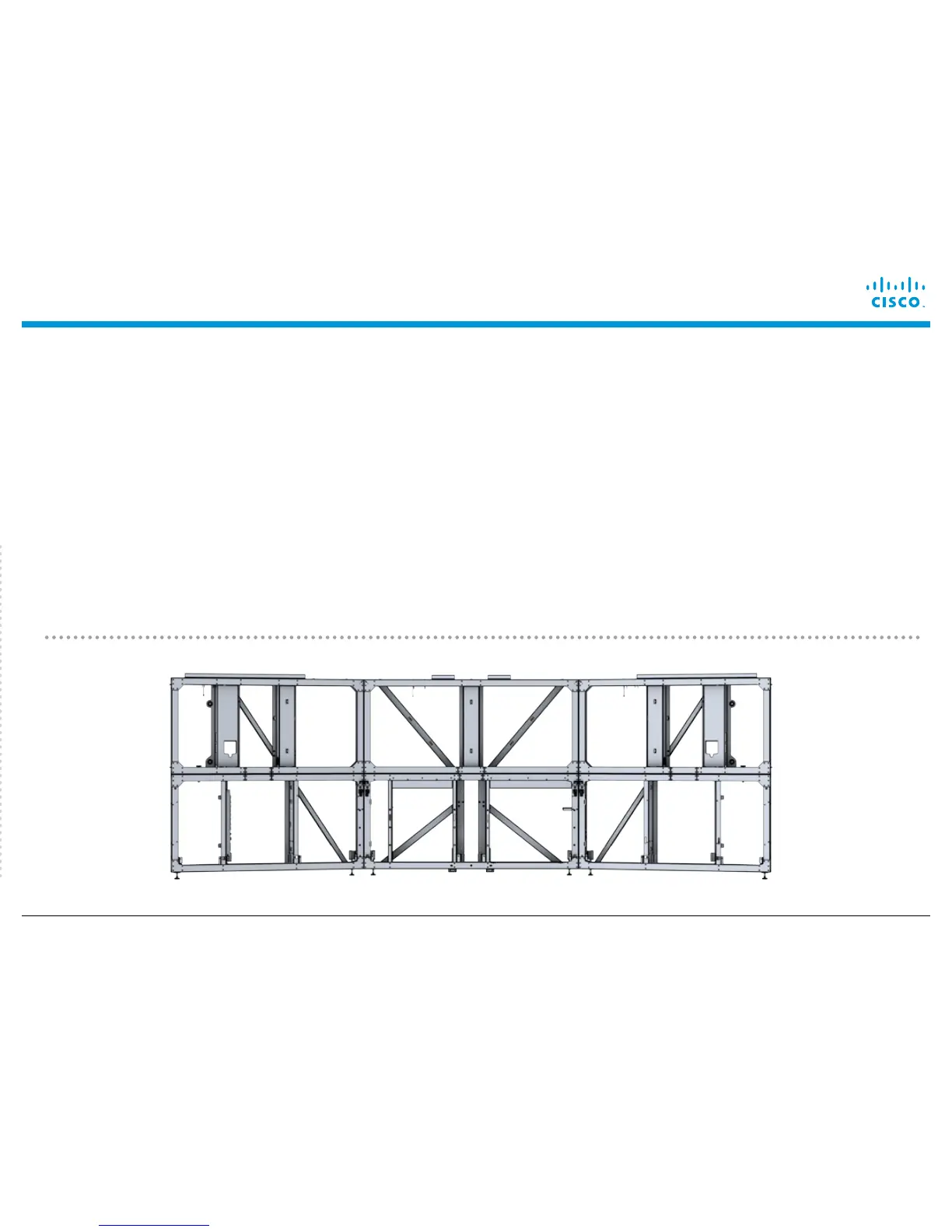

Installing the Lower and Upper Display Frames
Page 6
© 2015 Cisco Systems, Inc. All rights reserved.
Required Parts
• 1x each left, center, and right lower display frames (800-
40923-xx, 800-40920-xx, 800-40928-xx)
• 1x each left, center, and right upper display frames
(800-40934-xx, 800-40948-xx, 800-40941-xx)
• 2x Tie bars 700-43084-xx
• 56x black M8 X 16mm screws 69-2792-xx
• 1x compliance label 47-27415-xx
Required Tools
• #3 Phillips Driver
• 13mm wrench or adjustable wrench
• 19mm 12-point ratcheting box end wrench
• Metric tape measure
• Spirit level
• Laser level
Installing the Lower and Upper Display Frames
