IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Microphone (Mic) Bar—Part Number CTS-5K-MIC=
Step 4 Remove the mini-DisplayPort and mute button cables from the mic bar, and remove the mic bar from the
table.

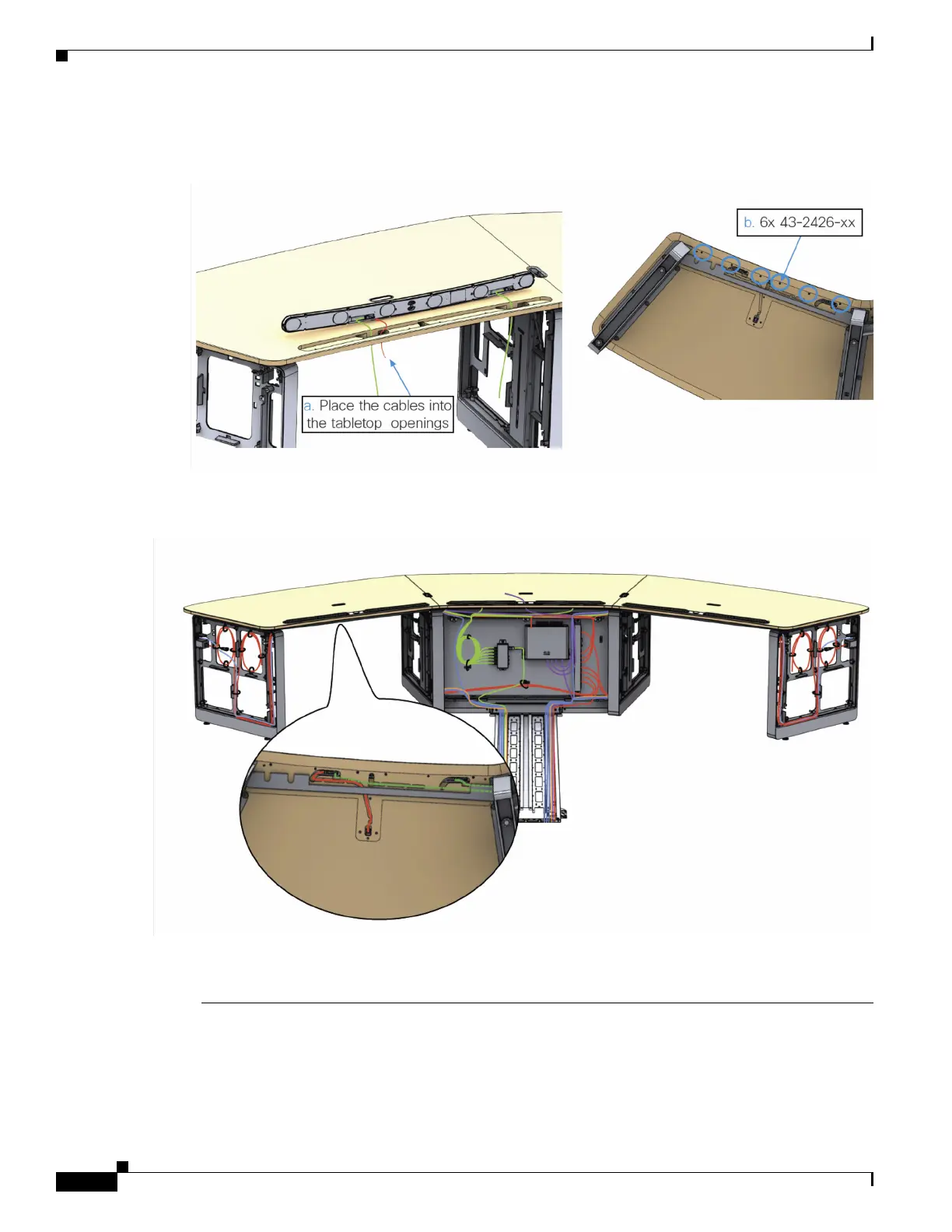

Step 5 Place the mic bar on the table, and connect the mute button cable and mini-DisplayPort cables
Step 6 Make sure that the cables underneath the table are routed correctly.
Step 7 Set the mic bar down in its recess in the table and reconnect using the six screws you removed earlier.
Step 8 Replace the front panel and mute button covers in the reverse order that you removed them.
