Cisco Telepresence MX800 Quick Reference Guide

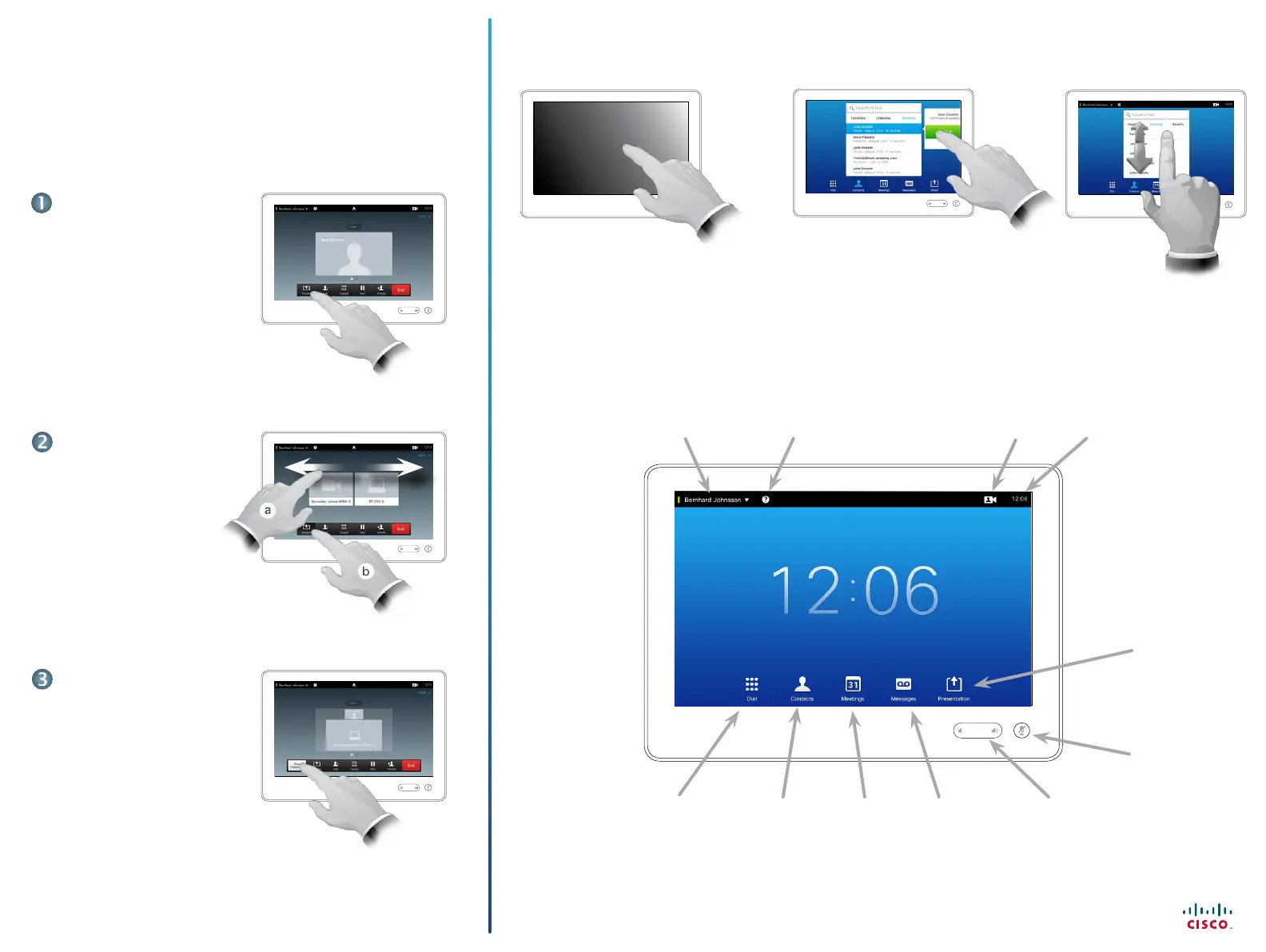

A tour of the Touch padSharing content
Make sure your presentation source is switched on and connected to
the video system before you tap Presentation.
Make sure your source is
connected and on. Tap
Presentation, as outlined.
When the presentation is
over, tap Stop Presenting,
as outlined.
Scroll horizontally (a), if
needed, to locate the
required source, as outlined.
Then tap Present (b).
You should now see the
presentation on the screen.
Quick Reference Guide
Cisco TelePresence MX200 G2/MX300 G2/MX700/MX800/SX80
TC7. 2
Tap the touch screen
to wake up the system,
if needed.
Tap a button
to activate its
function.
Scroll in lists
as on a smart
phone.
Tap Dial to
invoke the
dial pad.
Tap Contacts to
invoke the list of
contacts including
Favorites,
Directory and
History.
Tap Meetings
to invoke a list
of upcoming
scheduled
meetings.
Tap
Messages
to invoke the
voice mail
system, if
applicable.
Tap
Presentation
to start sharing
content and
to conduct
presentations.
Press and hold
the left side of the
Volume button
to decrease the
loudspeaker volume
and the right side to
increase the volume.
Press the
Microphone
button to
mute / unmute
microphone.
Time of day is
indicated in the
upper right corner.
Tap the Camera
icon to activate
self-view and
camera settings.
Tap the ? to
contact or
access the Help
desk, if available.
Tap the upper left corner to
activate /deactivate the Do not
disturb
feature, to activate /
deactivate the Standby feature, and
to access the Settings.
D1507703 Quick Reference Guide MX200 G2/MX300 G2/MX700/MX800/SX80 TC7.2 English, July 2014

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
