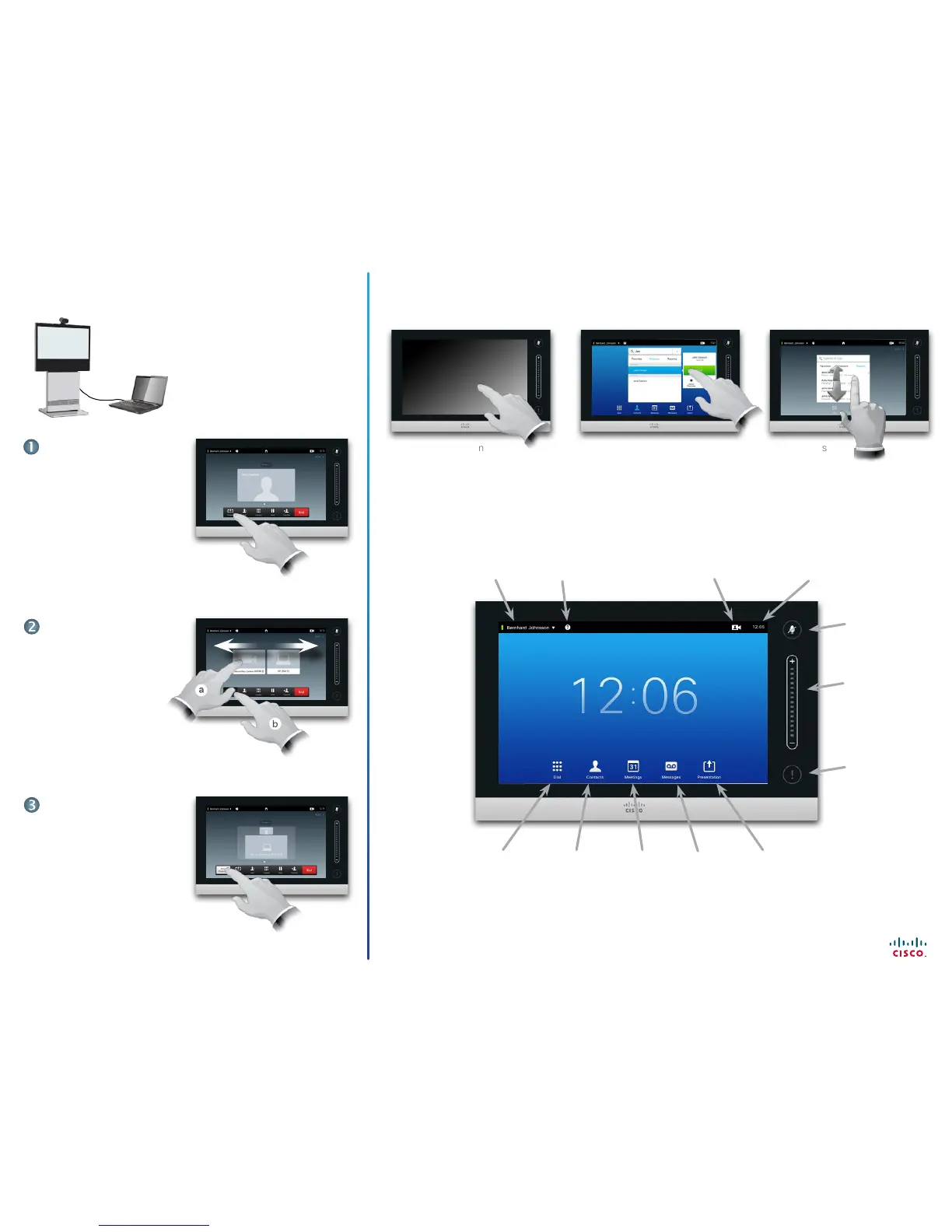

Cisco TelePresence Quick Reference Guide

Tap here to
invoke the
dial pad.
Tap here to
invoke the list
of contacts
including
Favorites,
Directory and
History.
Tap here to
invoke a list
of upcoming
scheduled
meetings.
Tap here to
invoke the
voice mail
system, if
applicable.
Tap here to
start sharing
content and
conduct
presentations.
Any messages
to you while you
were away will be
indicated here.
Adjust volume
here (tap and
drag).
Tap to
mute / unmute
microphone.
A tour of the Touch padSharing content
Make sure your presentation source
is switched on and connected to
the video system before you tap
Presentation.
Tap the touch screen
to wake up the system,
if needed.
Tap a button
to activate its
function.
Scroll in lists
as outlined.
Make sure your source is
connected and on. Tap
Presentation, as outlined.
When the presentation is
over, tap Stop Presenting,
as outlined.
Scroll horizontally (a), if
needed, to locate the
required source, as outlined.
Then tap Present (b).
You should now see the
presentation on the screen.
D1504106 Quick Reference Guide TC7.2, English, July 2014
Quick Reference Guide
Cisco TelePresence, Prole Series
Codec C-series, Quick Set C20
SX20 Quick Set, MX200, MX300
Tap here to
invoke help
desk contact,
if available.
Tap here to activate /
deactivate the Do not
disturb
feature, to activate /
deactivate the Standby
feature, and to access the
Settings.
Time of day.
Tap here
to activate
self-view.
TC7. 2
