ENGINE
103
CHECKING AND SETTING THE VALVE TIMING
Engine : RFS
TOOLS
[1] Belt tension measuring instrument : 4122-T
[2] Camshaft pulley locating peg : 9041-T.Z
Tool kit 7004-T
[3] Crankshaft locating peg : 7014-T.N
[4] Camshaft pulley locking peg : 4200-T.G
[5] Tensioner spanner : 7017-T.W Tool kit 7004-T
[6] Toothed sector for locking the flywheel : 9044-T

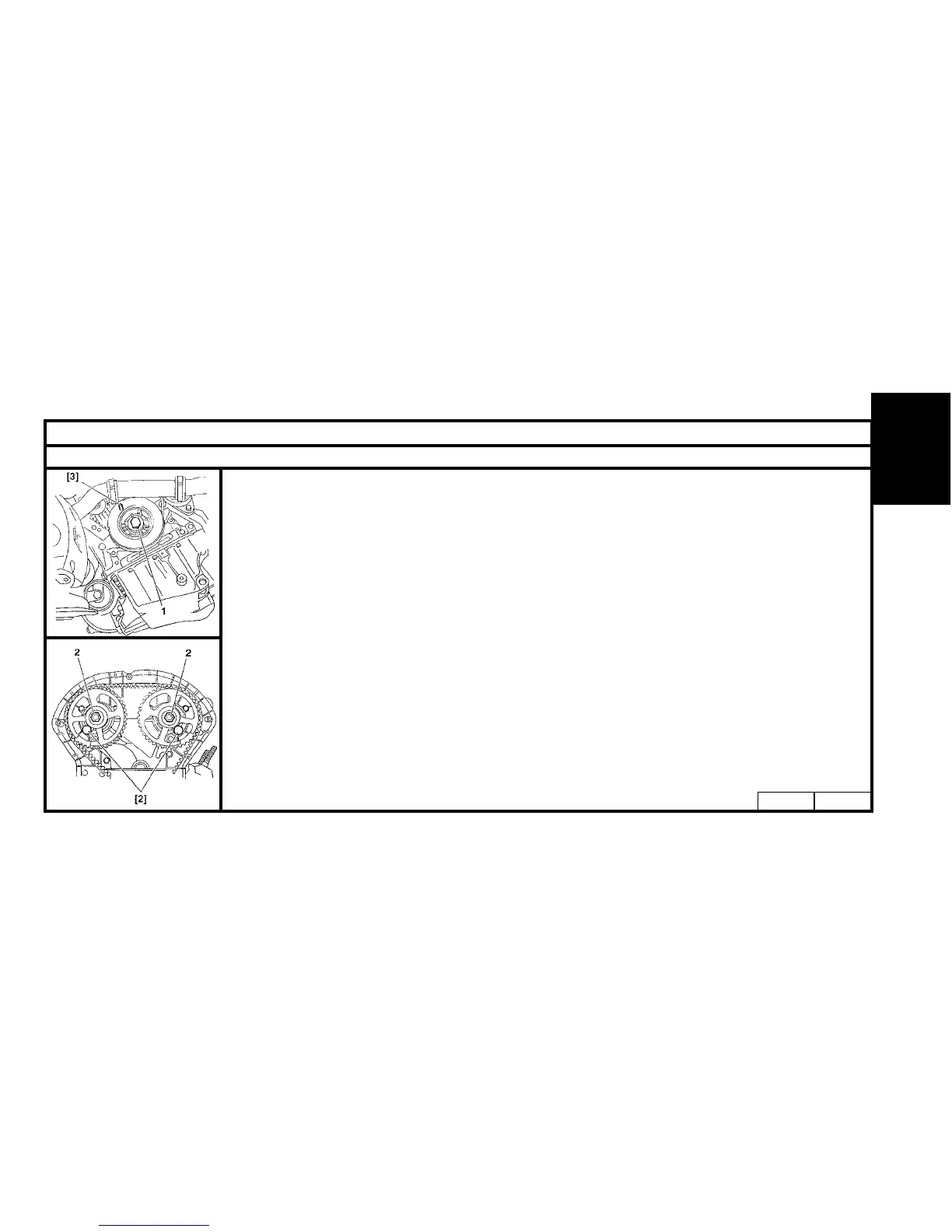

CHECKING THE SETTING
- Turn the engine by the crankshaft screw (1).
- Peg the crankshaft using the tool [3].
ESSENTIAL : Check that the crankshaft DAMPERS pulley is in good condition. If the hub/pulley
markings do not line up, the crankshaft pulley must be replaced.
- Peg the camshaft using the tool [2]
(The locating pegs [2] should slide in easily).
- If this is not the case, set the timing.
NOTE : Camshaft hubs (See pages 138 and 139).
B1EP12GCB1EP12FC

