CITROEN C4 CACTUS - Safety; Airbags

138
Safety
C4-cactus_en_Chap07_securite_ed02-2014
Lateral airbags
Deployment
Alateralairbagisdeployedunilaterallyinthe
eventofaserioussideimpactappliedtoallor
partofthesideimpactzoneB, perpendicular
tothelongitudinalcentrelineofthevehicleona
horizontalplaneanddirectedfromtheoutside
towardstheinsideofthevehicle.
Thelateralairbaginflatesbetweenthehipand
shoulder of the front occupant of the vehicle
andthecorrespondingdoortrimpanel.
Systemwhichprotectsthedriverandfront
passengerintheeventofaserioussideimpact
inordertolimittheriskofinjurytothechest,
betweenthehipandtheshoulder.
Eachlateralairbagisfittedintheseatbackrest
frame,doorside.

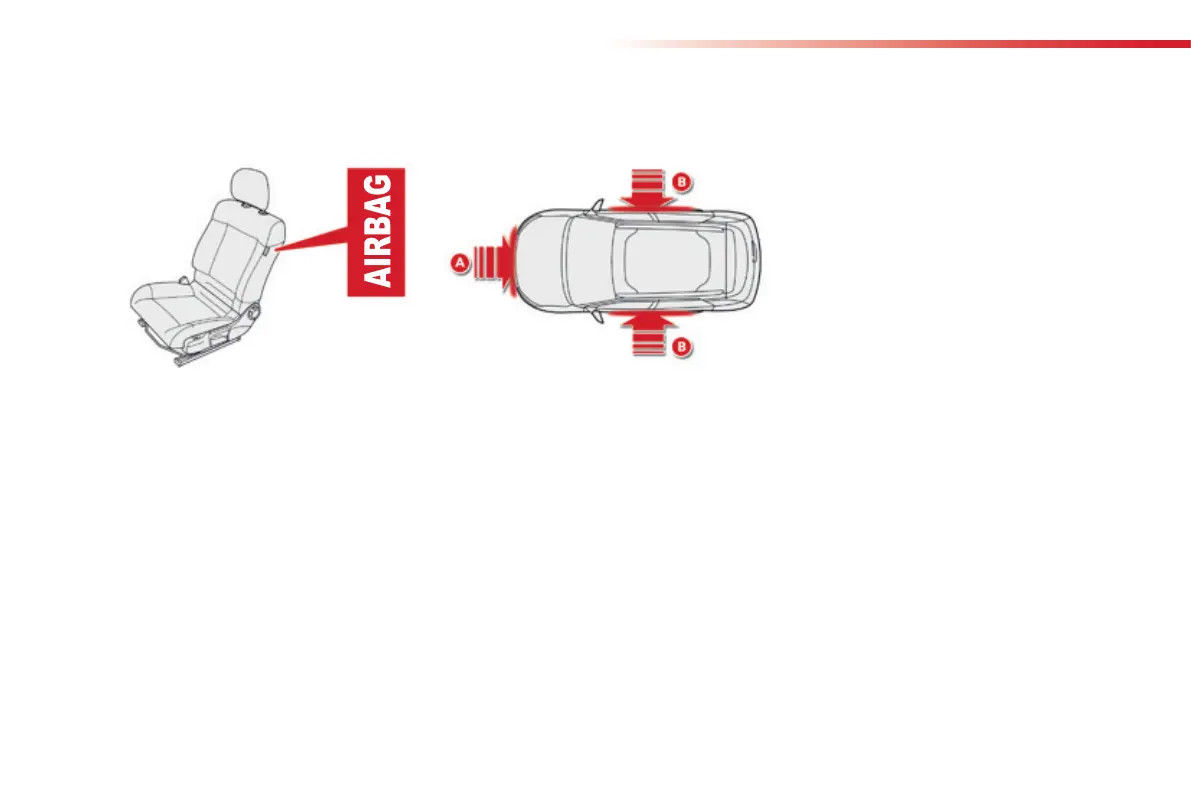

Impact detection zones
A. Frontimpactzone.
B. Sideimpactzone.
