Visibility
C5_en_Chap05_visibilite_ed01-2015
Manual controls
Lighting off (ignition off)
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps.
Dipped headlamps or main
beam headlamps.
B. Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main beam
headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays

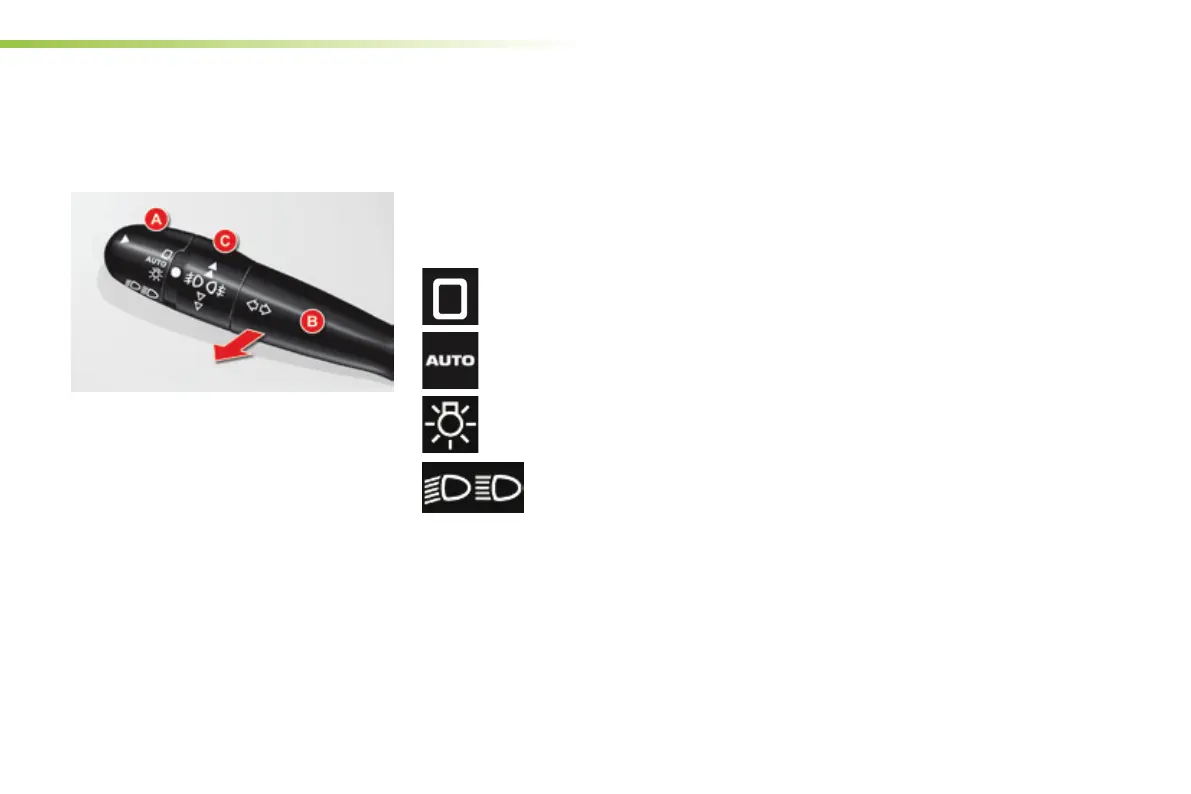

The lighting is controlled directly by the driver
by means of the ring A and the stalk B.
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
C. Foglamps selection ring.
The foglamps operate with the sidelamps and
the dipped and main beam headlamps.
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
