Citronic CASA-8A - Page 3

CASA active speaker cabinets User Manual

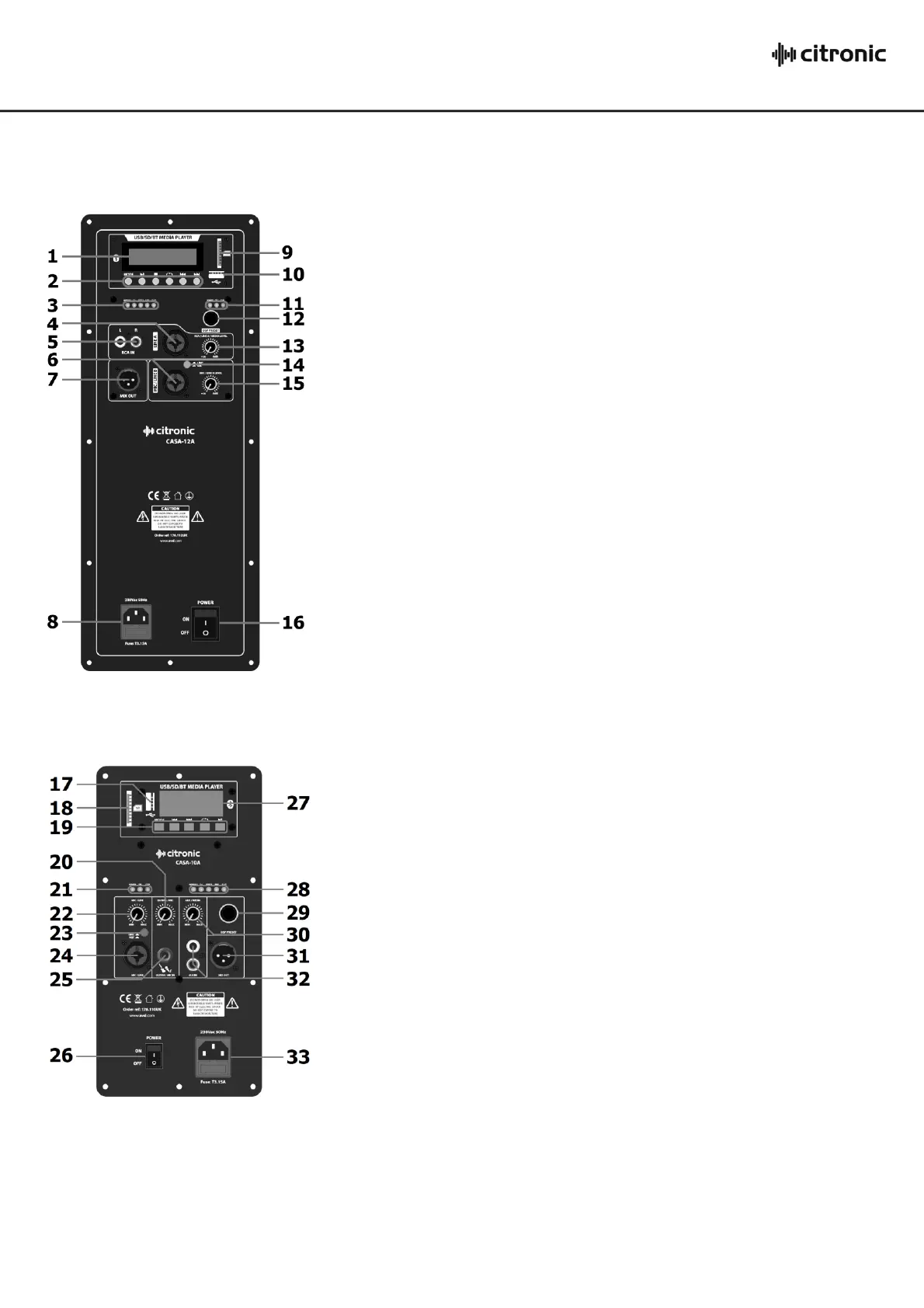

Rear panel layout
CASA-12A
CASA-8A / CASA-10A
1.
Media player display
2.
Media player controls
3.
DSP setting indicator LEDs
4.
LINE A input combo Jack/XLR
5.
RCA line input (L+R)
6.
MIC/LINE B input combo Jack/XLR
7.
MIX line output XLR
8.
IEC mains inlet & fuse holder
9.
SD card slot
10.
USB port
11.
Amplifier status LEDs
12.
DSP rotary selector
13.
RCA/LINE A/MEDIA volume control
14.
Input B MIC/LINE level selector
15.
MIC/LINE B volume control
16.
Power on/off switch
17.
USB port
18.
SD card slot
19.
Media player controls
20.
GUITAR/MIC IN volume control
21.
Amplifier status LEDs
22.
MIC/LINE volume control
23.
MIC/LINE level selector
24.
MIC/LINE input combo Jack/XLR
25.
GUITAR/MIC IN 6.3mm jack
26.
Power on/off switch
27.
Media player display
28.
DSP setting indicator LEDs
29.
DSP rotary selector
30.
AUX/MEDIA volume control
31.
MIX line output XLR
32.
AUX input L+R RCA
33.
IEC mains inlet & fuse holder
