171.227, 171.228 User Manual
Connection

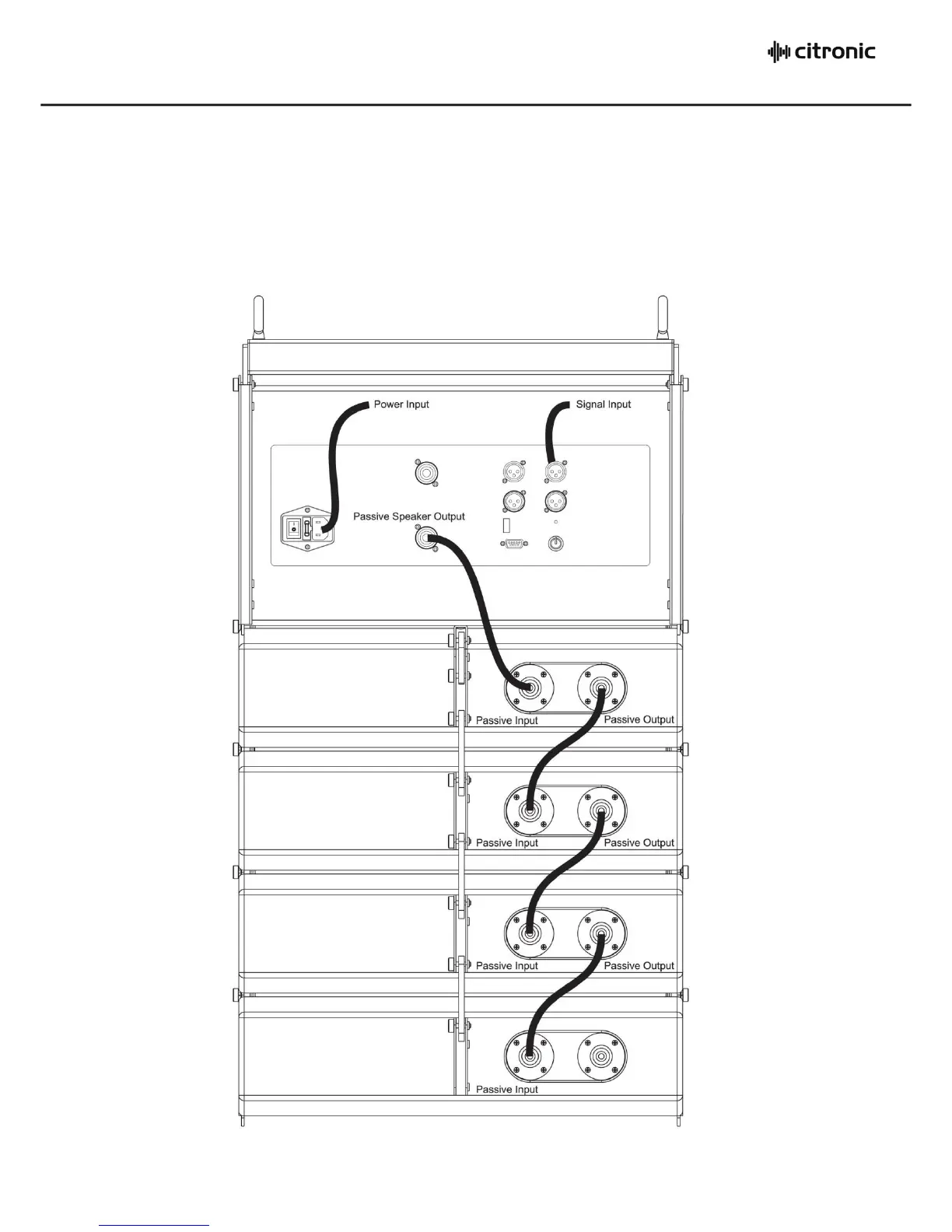

Using the supplied speaker leads, connect 4 passive units to one sub unit as shown below.
For multiple arrays, connect each group of 4 passive units to one sub unit.
No more than 4 passive units may be connected to a single sub.
Use the supplied IEC lead to connect to mains, ensuring correct voltage and power capacity
Connect signal input via XLR (connect to LINE input – not to be confused with RS-485 input)
To continue the signal onto further units, connect from the XLR LINE output
