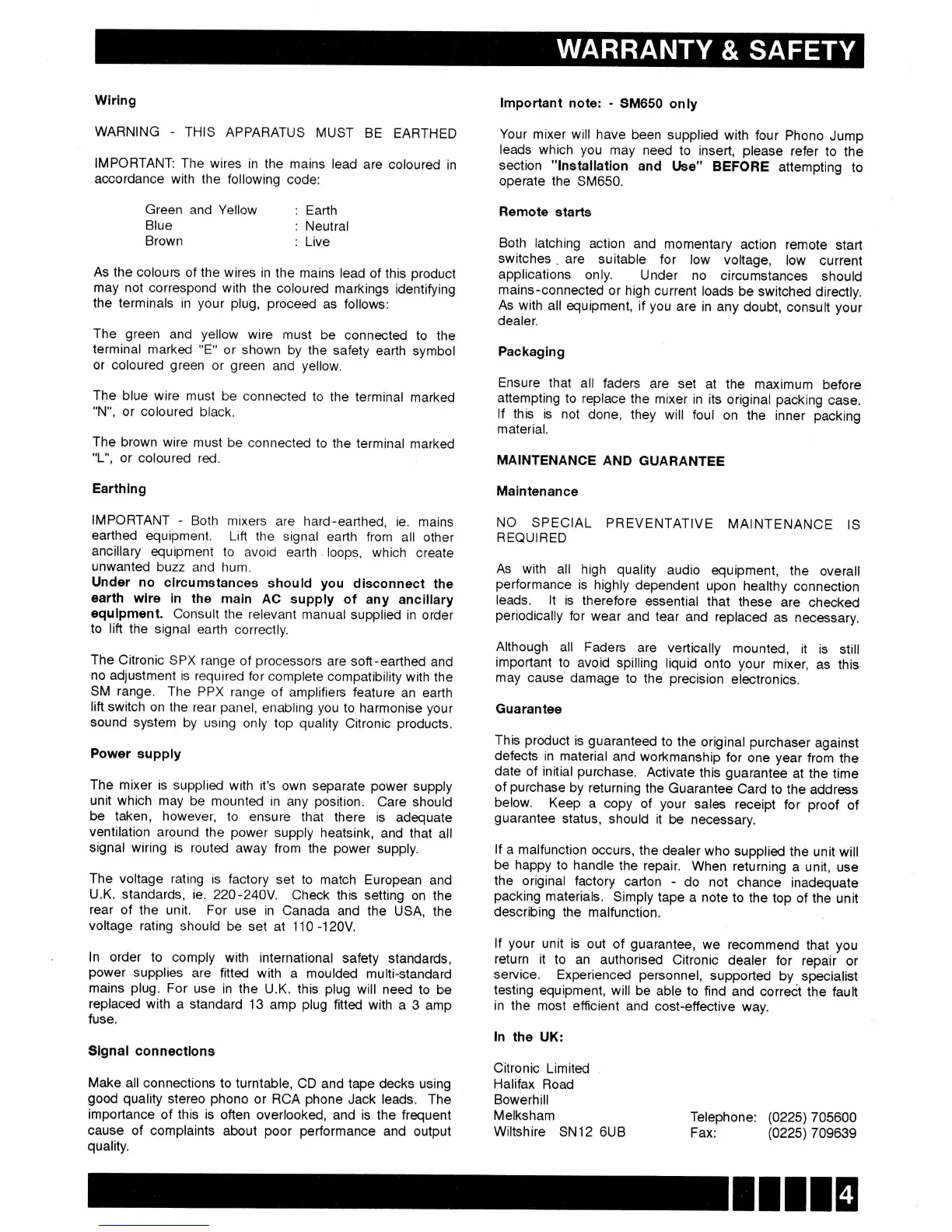

Wiring
WARNING
-
THIS APPARATUS
MUST
BE
EARTHED
IMPORTANT: The wires
in
the mains lead
are coloured
in
accordance
with the following
code:
Green
and Yellow
Blue
Brown
: Earth
:
Neutral
: Live
As the
colours
of the
wires in
the mains
lead of
this
product
may
not correspond
with
the coloured
markings
identifying
the
terminals in
your
plug, proceed
as
follows:
The
green
and
yellow
wire must
be connected
to the
terminal
marked
"E"
or
shown
by the safety
earth
symbol
or coloured
green
or
green
and
yellow.
The
blue wire
must be connected
to the
terminal
marked
"N",
or coloured
black.
The
brown
wire
must be connected
to the
terminal
marked
"L",
or coloured
red.
Earthlng
IMPORTANT
-
Both
mixers
are hard-ear1hed,
ie.
mains
earthed
equipment.
Lift the
signal
eafth
from
all other
ancillary
equipment
to
avoid earth
.
loops,
which
create
unwanted
buzz
and
hum.
Under
no clrcumstances
should
you
disconnect
the
earth
wlre
ln
the maln
AC supply
of any
ancillary
equlpment.
Consult
the
relevant
manual
supplied
in order
to lift
the
signal
earth
correctly.
The Citronic
SPX
range of
processors
are sott-earthed
and
no
adjustment
is
required
for complete
compatibility
with the
SM
range.
The PPX
range of amplifiers
feature
an earth
lift switch
on the
rear
panel,
enabling
you
to harmonise
your
sound
system
by using
only
top
quality
Citronic
products.
Power supply
The mixer is supplied
with
it's own separate
power
supply
unit which may
be
mounted
in any
position.
Care should
be taken,
however,
to ensure that
there
is adequate
ventilation
around
the
power
supply
heatsink,
and
that
all
signal
wiring is
routed away
from
the
power
supply.
The voltage rating
is
factory
set to
match
European
and
U.K.
standards,
ie.
220-240V.
Check this
setting
on the
rear
of
the unit.
For use
in Canada
and the USA,
the
voltage
rating should
be set
at 110
-120V.
ln
order
to comply
with
international
safety
standards,
power
supplies
are
fitted with
a moulded
multi-standard
mains
plug.
For
use
in the U.K.
this
plug
will need
to
be
replaced
with a standard
13
amp
plug
fitted
with a 3
amp
fuse.
Slgnal connectlons
Make
all connections
to turntable,
CD
and tape decks using
good
quality
stereo
phono
or RCA
phone
Jack leads. The
importance
of this is often
overlooked,
and is the frequent
cause
of complaints
about
poor performance
and
output
quality.
lmportant
note:
-
SM650
only
Your
mixer will have
been
supplied
with four
Phono
Jump
leads which
you
may
need
to insert,
please
refer
to
the
section
"lnstallation
and
Llse"
BEFORE
attempting
to
operate
the
SM650.
Remote
starts
Both
latching
action
and
momentary
action
remote
stafi
switches
.
are suitable
for
low voltage,
low current
applications
only.
Under
no
circumstances
should
mains-connected
or
high current
loads
be switched
directly.
As
with
all equipment,
if
you
are
in any
doubt,
consult
your
dealer.
Packaging
Ensure
that
all faders
are set
at the
maximum
before
attempting
to
replace
the
mixer
in its
original
packing
case.
lf
this is
not
done,
they
will
foul on
the inner
packing
material.
MAINTENANCE
AND GUARANTEE
Maintenance
NO SPECIAL
PREVENTATIVE
MAINTENANCE
IS
R EQU
IH ED
As with
all
high
quality
audio
equipment,
the
overall
performance
is
highly
dependent
upon
healthy
connection
leads.
lt is
therefore
essential
that
these
are checked
periodically
for
wear
and tear
and
replaced
as
necessary.
Although
all Faders
are
vedically
mounted,
it
is
still
important
to
avoid
spilling
liquid
onto
your
mixer,
as this
may
cause
damage
to
the
precision
electronics.
Guarantee
This
product
is
guaranteed
to the
original
purchaser
against
defects
in
material
and
wokmanship
for
one
year
from
the
date of
initial
purchase.
Activate
this
guarantee
at the
time
of
purchase
by
returning
the Guarantee
card
to
the
address
below.
Keep
a copy
of
your
sales
receipt
for
proof
of
guarantee
status,
should
it be
necessary.
lf
a
malfunction
occurs,
the dealer
who
supplied
the unit
wilr
be
happy to
handle
the
repair.
When
returning
a unit,
use
the
original
factory
carton
-
do not chance
inadequate
packing
materials.
Simply
tape
a
note
to
the top
of
the
unit
describing
the
malfunction.
lf
your
unit
is out
of
guarantee,
we
recommend
that
you
return
it
to
an authorised
Citronic
dealer
for
repair
or
service.
Experienced
personnel,
supported
by specialist
testing
equipment,
will be
able
to find
and correit
the fault
in
the
most efficient
and
cost-etfective
way.
ln
the
UK:
Citronic
Limited
Halifax
Road
Bowerhill
Melksham
Wiltshire
SN12 6UB
Telephone:
(0225)
705600
Fax:
(0225)
709639
