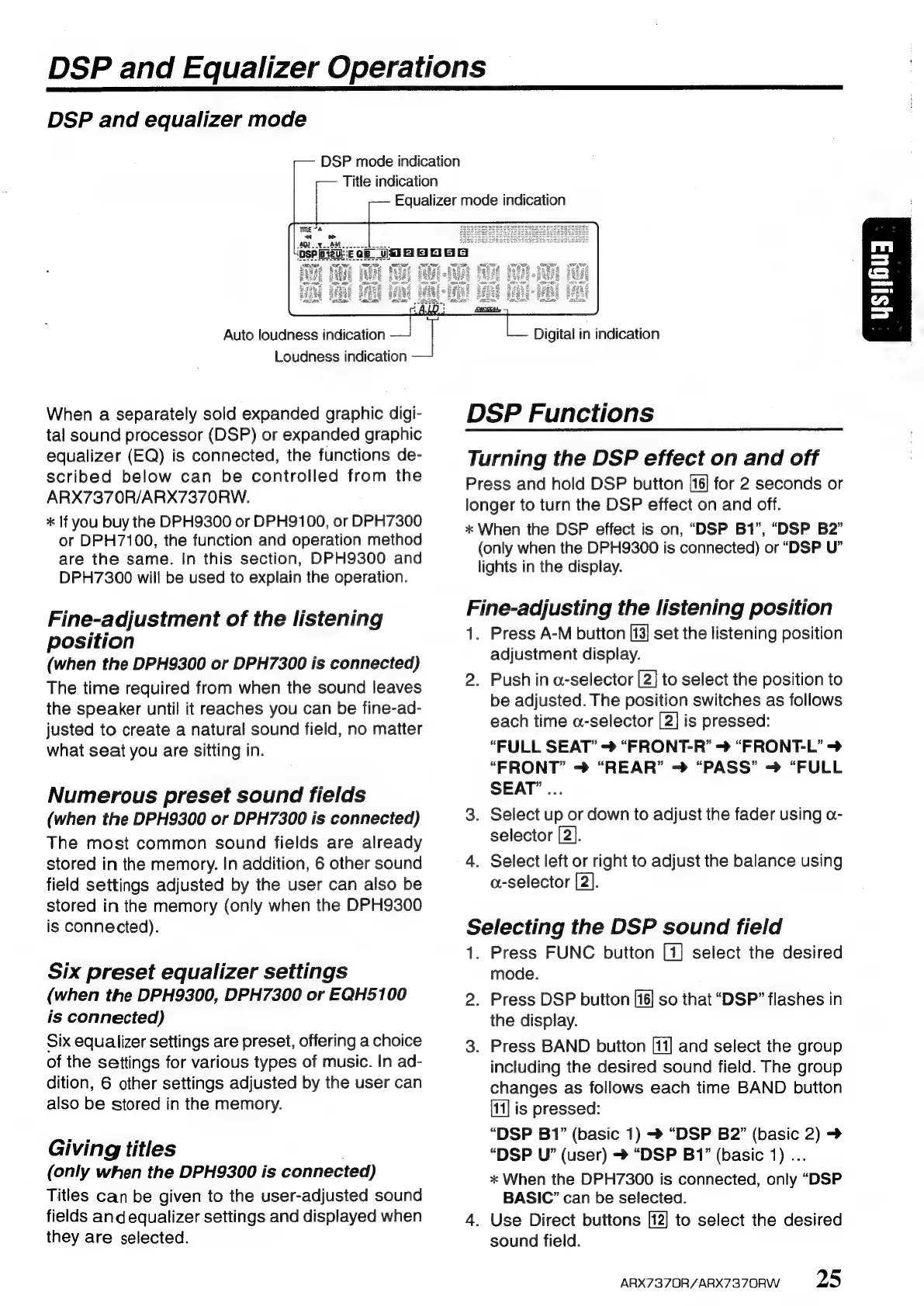

DSP and Equalizer Operations
DSP and equalizer mode
TE “4
«
Auto loudness indication
Loudness indication
When a separately sold expanded graphic digi-
tal sound processor (DSP) or expanded graphic
equalizer (EQ) is connected, the functions de-
scribed below can be controlled from the
ARX7370R/ARX7370RW.
* If you buy the DPH9300 or DPH9100, or DPH7300
or DPH7100, the function and operation method
are the same. In this section, DPH9300 and
DPH7300 will be used to explain the operation.
Fine-adjustment of the listening
position
(when the DPH9300 or DPH7300 is connected)
The time required from when the sound leaves
the speaker until it reaches you can be fine-ad-
justed to create a natural sound field, no matter
what seat you are sitting in.
Numerous preset sound fields
(when the DPH9300 or DPH7300 is connected)
The most common sound fields are already
stored in the memory. In addition, 6 other sound
field settings adjusted by the user can also be
stored in the memory (only when the DPH9300
is connected).
Six preset equalizer settings
(when the DPH9300, DPH7300 or EQH5100
is connected)
Six equalizer settings are preset, offering a choice
of the settings for various types of music. In ad-
dition, 6 other settings adjusted by the user can
also be stored in the memory.
Giving titles
(only when the DPH9300 is connected)
Titles can be given to the user-adjusted sound
fields and equalizer settings and displayed when
they are selected.
DSP mode indication
Title indication
Equalizer mode indication
Digital in indication
DSP Functions
Turning the DSP effect on and off
Press and hold DSP button |16] for 2 seconds or
longer to turn the DSP effect on and off.
* When the DSP effect is on, “DSP B1”, “DSP B2”
(only when the DPH9300 is connected) or “DSP U”
lights in the display.
Fine-adjusting the listening position
1. Press A-M button [13] set the listening position
adjustment display.
2. Push in a-selector [2] to select the position to
be adjusted. The position switches as follows
each time a-selector [2] is pressed:
“FULL SEAT” - “FRONT-R’ > “FRONT-L’ >
“FRONT” > “REAR” ~ “PASS” ~> “FULL
SEAT” ...
3. Select up or down to adjust the fader using a-
selector [2].
4. Select left or right to adjust the balance using
a-selector [2].
Selecting the DSP sound field
1. Press FUNC button select the desired
mode.
2. Press DSP button [16] so that “DSP” flashes in
the display.
3. Press BAND button and select the group
including the desired sound field. The group
changes as follows each time BAND button
[11] is pressed:
“DSP B1” (basic 1) ~ “DSP B2” (basic 2) >
“DSP U” (user) > “DSP B1” (basic 1) ...
* When the DPH7300 is connected, only “DSP
BASIC” can be selected.
4. Use Direct buttons [12] to select the desired
sound field.
ARX7370R/ARX7370RW 25
