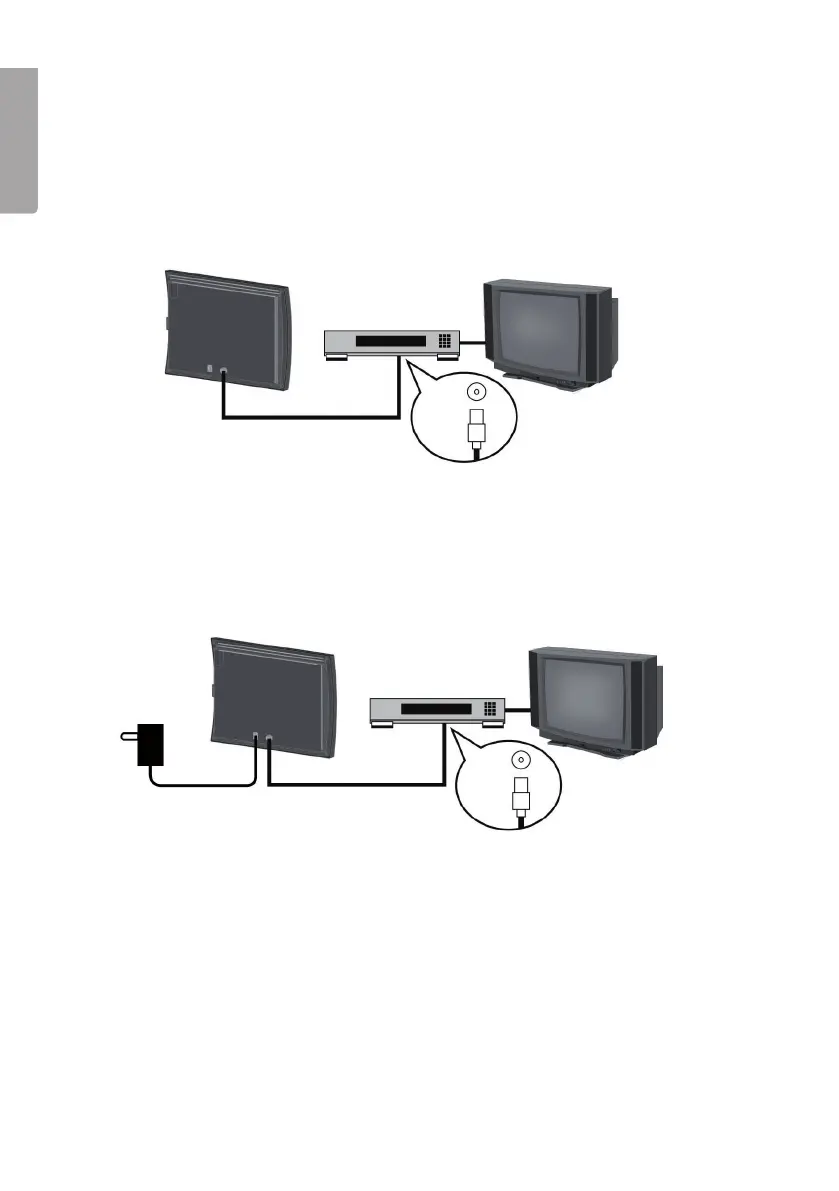

Connections
1. The decoder normally supplies the antenna with 5VDC/30mA power.
Remember to turn the switch on.
AC/DC adaptor
230V, 50Hz ,
6VDC/100mA
2. If the switch does not supply the antenna with 5VDC/30mA power you should
use the AC/DC adaptor.
NOTE! I you are unsure if the decoder supplies the antenna with power
you can still try the AC/DC adaptor. The AC/DC adaptor does not harm the
antenna or the decoder.
Coaxial cable
Decoder
Coaxial cable
Decoder
