Clayton Power LPS - Page 6

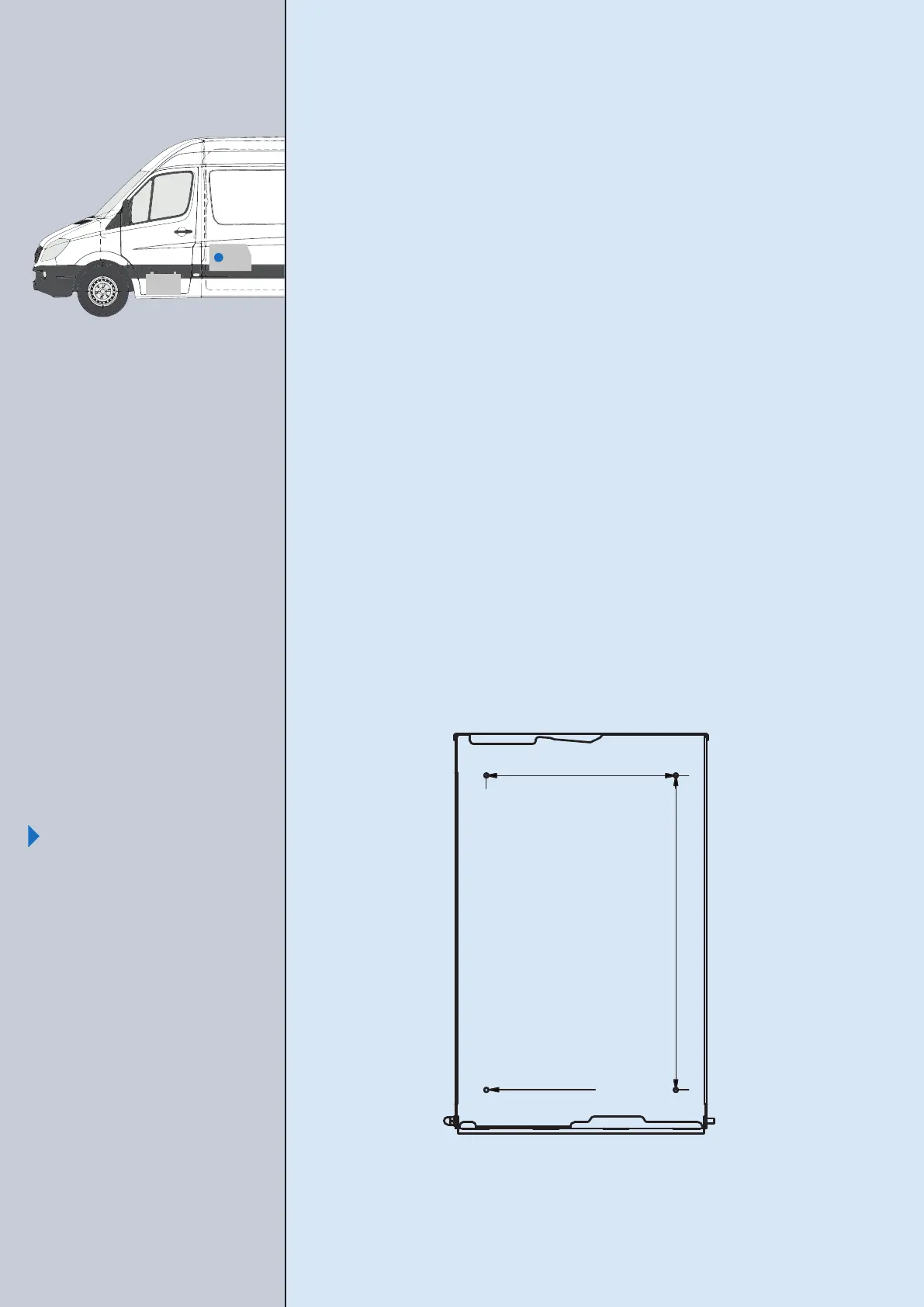

LPS Mounting Console (recommended)
Mount the LPS in the van by using an
LPS Mounting Console and 4 screws D4,20.
Part No.: ACWO00107GF
Dimensions: 420 x 300 x 55 mm
Not included the LPS as standard.
PARTS LIST
PART NUMBERQTYITEM
LPS_InsideBracket_004
11
LPS_InsideBracket_Lock
1
2
Hex domed Cap Nut -
M5
23
LOCK WASHER - M52
4
3D Part Name No:
LPS_InsideBracket_Assembly
Date:
02-09-2016
Rev:
.004
Drawn by:
Clayton
Material:
Steel
Sheet:
Scale:
A4 1 : 1
Color coating:
COPYRIGHT:
THIS DRAWING MAY UNDER NO CIRCUMSTANCE BE COPIED OR EDITED
WITHOUT APPROVAL FROM Clayton Power ApS
Pakhusgården 42-48
DK 5000 Odense C
TLF: 46985760
www.claytonpower.com
Drawing No:
LPS-003-600
All Dimensions in mm
Checked by:
ML
187,00
310,00
394,00 251,00
1
2
4
3
4,20 THRU
LPS - Lithium Power Supply
Mounting
6
LPS
1a Unpacking
1b Mounting
Charging from the van
2a Starter battery
2b D+ Ignition signal
Charging from mains
3 Mains connection
Outputs
4a 12 V Output
4b 230 V Output
5 LPS Remote
6 Test
LPS
Van Installation Guide
Front
Back
