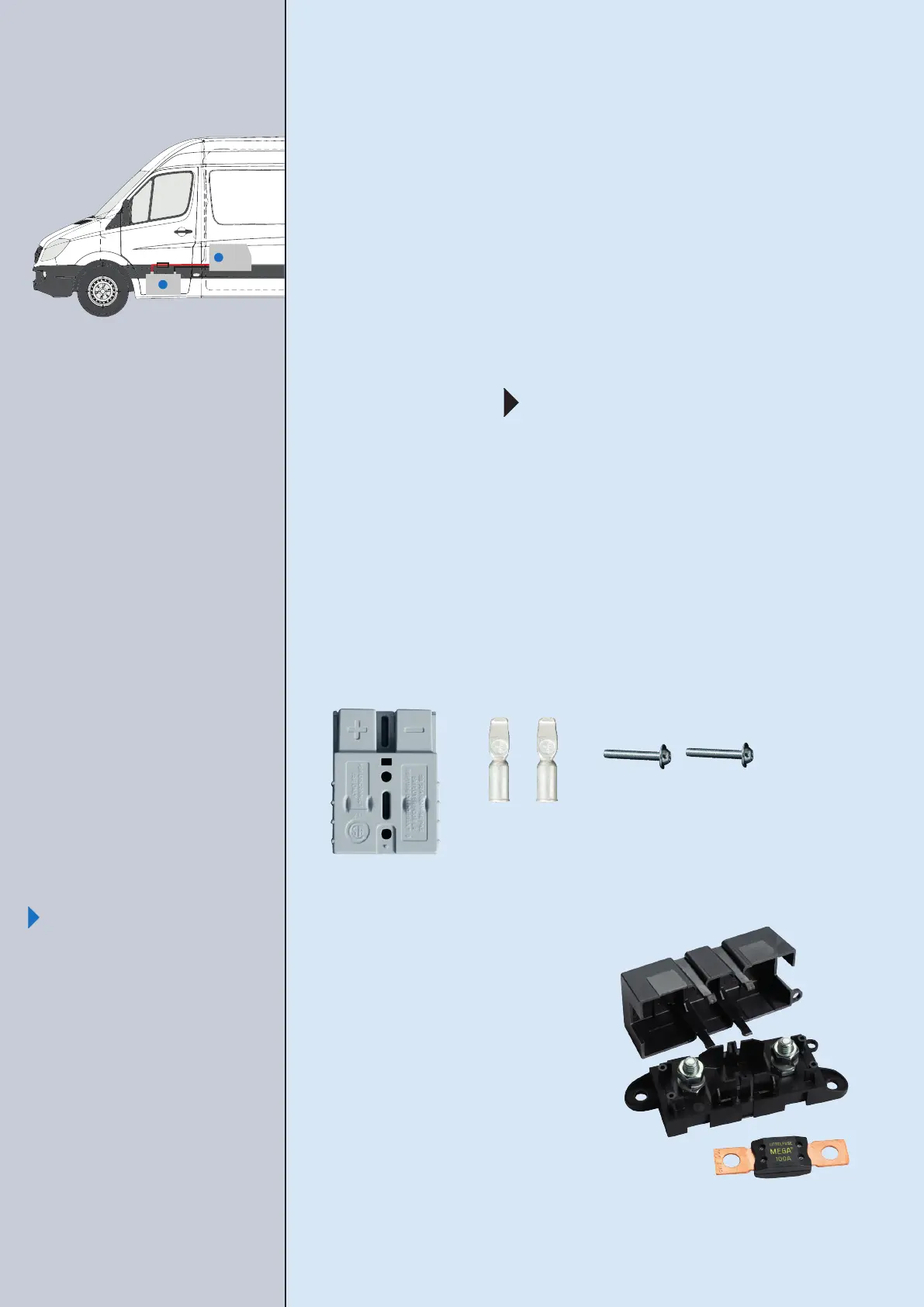

Clayton Power LPS - Charging from the van; Starter Battery Connection

Charging from the van
Starter Battery
LPS (12 VDC IN) Starter Battery
Connect the LPS to plus and minus pole
on the starter battery.
Plus to Plus - including 100A DC fuse
Minus to Minus (direct connection is recommended)
Use 16 mm2 cable. Maximum length: 5m
DC Fuse and Fuse Holder
DC Fuse Holder
Part no.: ACWO 00102GF
DC 100A Fuse
Part no.: ACWO 00103GF
