Clear-Com PS-10 User Manual

.V
WARRANTY
AND
MAINTENANCE
Your Clear-Com
System
contains mod-
individually
to ensure
that
it
ular,
solid-state
equipment
that
meets
or
exceeds
all
specifica-
allows
system
expansion
and field
tions.
All units
are guaranteed
by
serviceability.
Efficient
ventila-
Clear-Com against
defects in
mat-
tion is inherent
in chassis design;
erials and workmanship for one year
the
PS-dO can withstand an ambient
following date of purchase
(90 days
temperature
of 50
degrees
C (122
for headsets;
see
the warranty
card
degrees
F). Rugged
packaging
enclosed
with
each unit).
guards against abuse; the chassis
are 16 gauge
aluminum or stainless
steel,
with double-sided,
glass
Our
Engineering,
Service,
and Sales
epoxy plug-in
PC boards.
Our con-
Departments
will gladly
give you
servatively-engineered
circuitry
technical
advice and assistance.
assures
the longest component
life.
If you have
any questions
regarding
We shield heavily against hum, RF operation, modifications,
or appli-
pick-up,
and solid-state
dimmer
cations
of your
intercom system,
noise.
call us between
8:30 and
5 pm
(Pacific Standard Time) at 415-861-
Before shipping, we test each unit 6666.

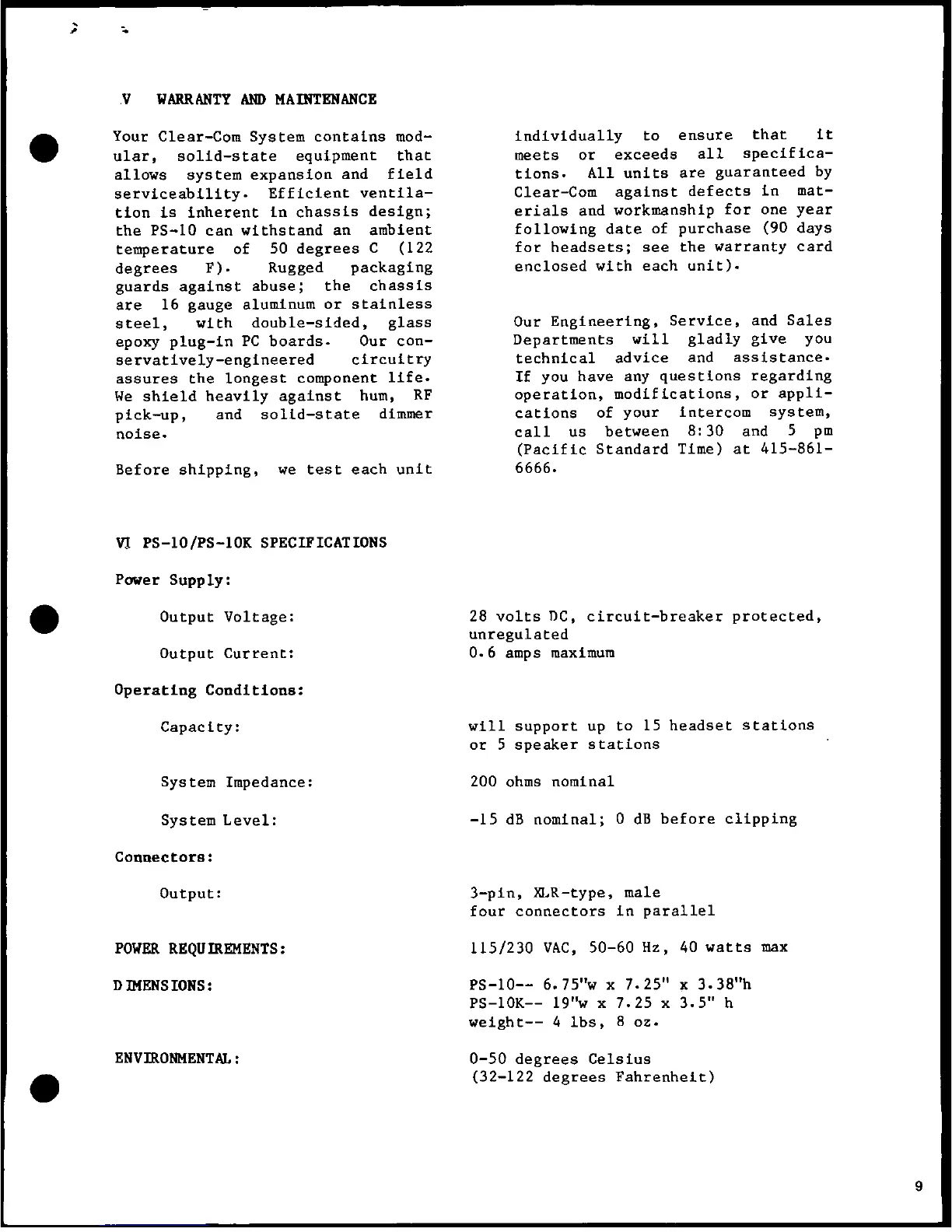

VI PS-10/PS-1OK SPECIFICATIONS
Power Supply:
Output
Voltage:
28 volts DC,
circuit-breaker protected,
unregulated
Output Current:
0.6 amps maximum
Operating
Conditions:
Capacity: will support up to 15 headset
stations
or 5 speaker stations
System Impedance:
200 ohms nominal
System Level:
-15 dB nominal; 0 dB
before clipping
Connectors:
Output: 3-pin, XLR-type, male
four connectors in parallel
POWER REQUIREMENTS:
115/230
VAC, 50-60 Hz,
40 watts max
DIM4ENSIONS:
PS-10-- 6.75"w x 7.25" x 3.38"h
PS-10K-- 19"w x 7.25 x 3.5" h
weight-- 4 lbs, 8 oz.
ENVIRONMENTAL:
0-50
degrees
Celsius
(32-122 degrees Fahrenheit)
