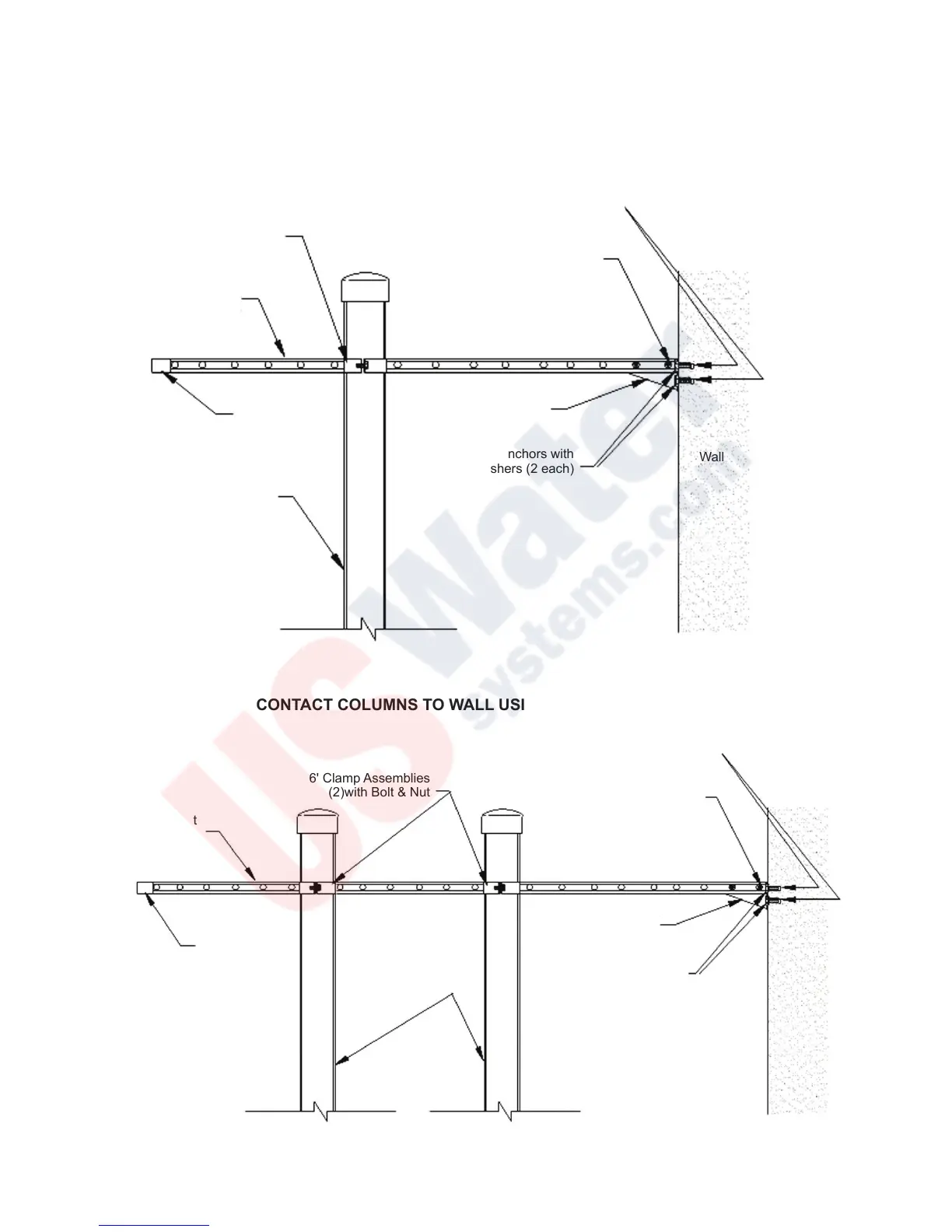

MOUNTING CONTACT COLUMN TO WALL USING UNISTRUT MOUNTING SYSTEM
MOUNTING TWO CONTACT COLUMNS TO WALL USING UNISTRUT MOUNTING SYSTEM
6' Clamp Assembly
with Bolt & Nut
Unistrut (may get cut
to length desired)
Unistrut
Protective
End Cap
Contact Column
Concrete Anchors with
Nuts & Washers (2 each)
"L" Bracket
Bolts, Nuts & Washers
(2 each)
1/2" Holes Drilled Into
Wall (3 .5" to 4" deep)
Wall
6' Clamp Assemblies
(2)with Bolt & Nut
Unistrut (may get cut
to length desired)
Unistrut
Protective
End Cap
Contact Columns
1/2" Holes Drilled Into
Wall (3 .5" to 4" deep)
Bolts, Nuts & Washers
(2 each)
Concrete Anchors with
Nuts & Washers (2 each)
"L" Bracket
Wall
