Assembly method of exhaust pipe
The pipe and the exhaust adapter must be installed or removed in accordance with the operating
instructions.
For AIR CONDITIONER mode, the exhaust pipe must be installed.
For FAN or DEHUMIDIFIER mode, the exhaust pipe must be removed.

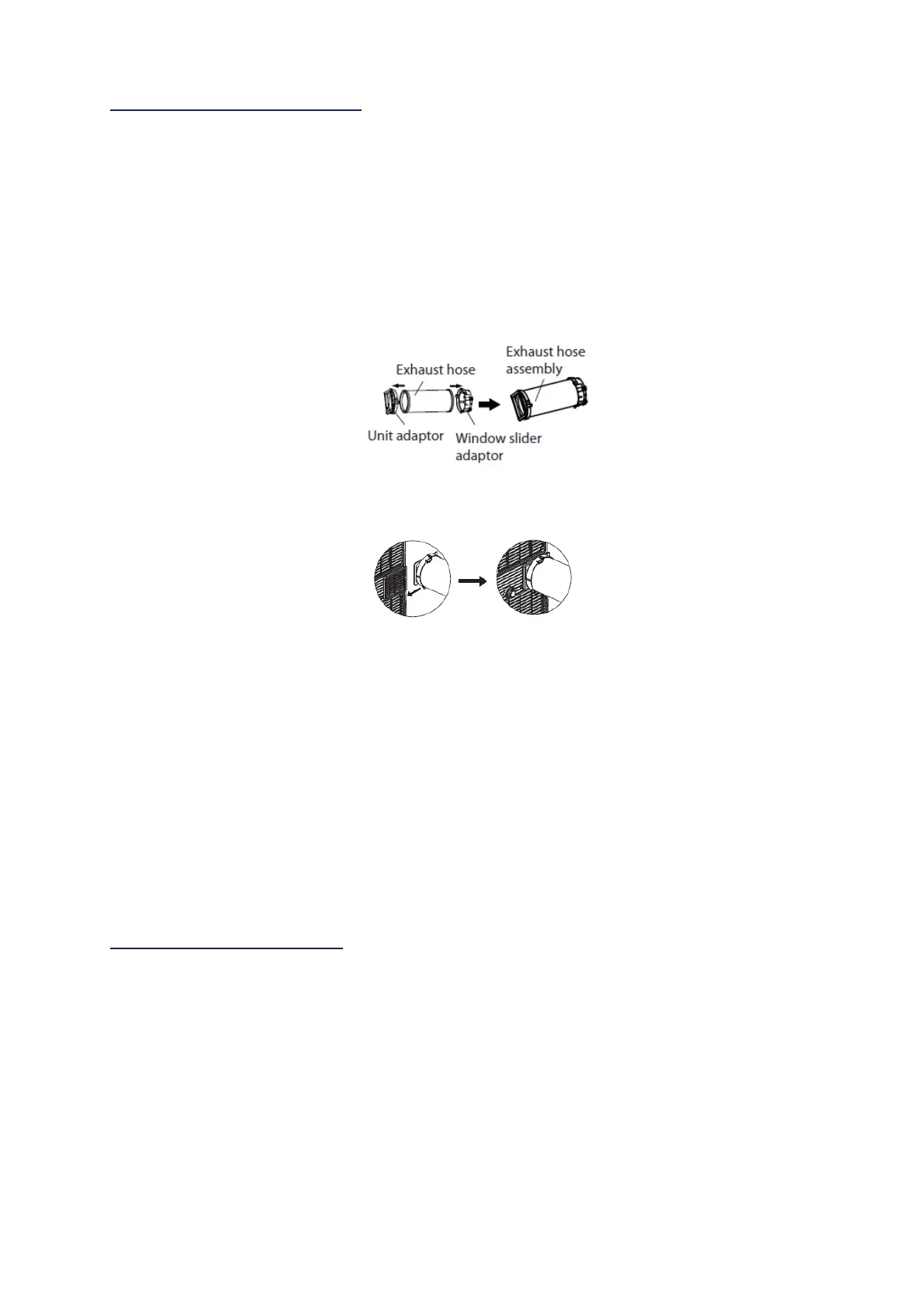

 Step one: Prepare the exhaust pipe by assembling the pipe with the appliance adapter and the
window slider adapter
 Step two: Install the exhaust pipe to the air outlet of the air conditioner according to drawing.
Caution:
1. Exhaust pipe is 28cm-150cm long (including adapter). We recommend using the minimum
length so as to save energy for you.
2. The length of exhaust pipe is especially designed in accordance with the specification of the
air conditioner. Please do not use other exhaust pipes of different lengths or materials, in such way
failure may be caused.
Installation of window sealplate
With this product, a window kit is provided.
This kit has been designed to be compatible with most standard horizontal or vertical windows.
We invite you to follow the diagrams below for a good installation.
