STATUS COMPONENT SYSTEM

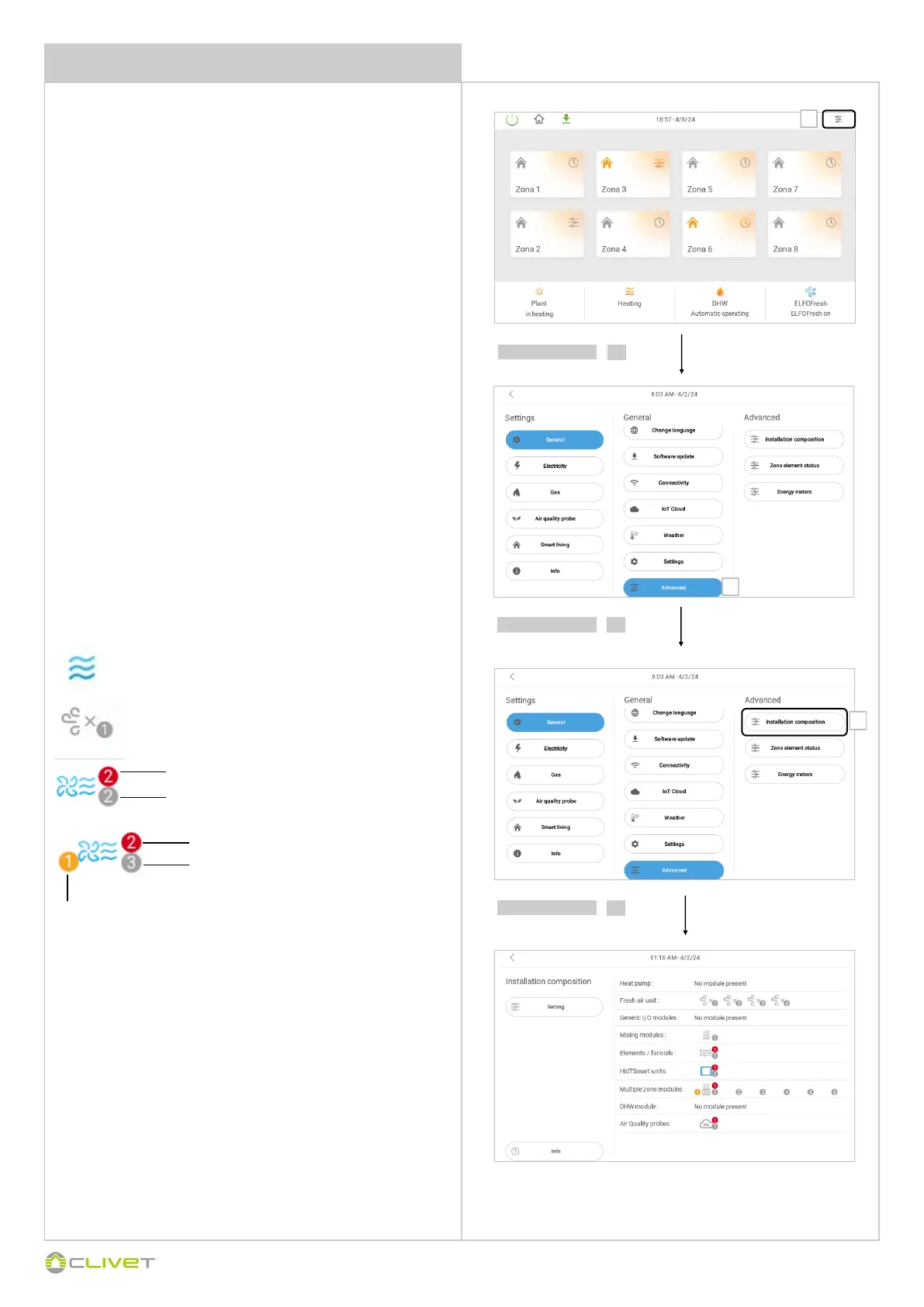

VERIFICATION OF THE COMPONENT COMMUNICATION
Once the system is restarted and the new configuration loaded, verify
the serial communication.
For a correct verification, wait 5/10 minutes from the first restart, this
period can vary depending on the composition of the system.
press for 2 sec.
1
A - Belonging to area: 2
B - Terminal number: 2
C - Circuit number: 1
D - module channel: 3
The unit does not communicate with CONTROL4 NRG, an alarm is
notified "communication with interrupted device".
Communication OK (blue)
B
Communication OFF (grey)
A
A
D
C
1
select
2
2
3
select
3
