CLIVET WDAT-SL3 FC Series User Manual

FCI conguration (No-glycol FREE-COOLING)
Size 400.2 - 440.2 Acoustic conguration: compressor soundproong (SC)
Size 320.2 - 340.2 - 360.2 Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
400.2 440.2 320.2 340.2 360.2
H (without Axitop) mm 2484 2484 2510 2510 2510
I mm 6238 6238 6555 6555 6555
J mm 3269 3269 3154 2952 2952
K mm 579 579 377 579 579
L mm 371 371 333 351 351
OD (water ttings diameter) 8’’ 8’’ 6’’ 6’’ 6’’
A - Length mm 10178 10178 10178 10178 10178
B - Depth mm 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668
W1 Supporting point kg 2454 2467 2203 2267 2408
W2 Supporting point kg 1302 1307 1106 1122 1153
W3 Supporting point kg 1105 1107 945 944 934
W4 Supporting point kg 614 616 605 609 613
W5 Supporting point kg 1182 1206 1087 1177 1196
W6 Supporting point kg 2359 2371 2125 2263 2313
W7 Supporting point kg 1282 1286 1089 1122 1133
W8 Supporting point kg 1113 1114 951 945 942
W9 Supporting point kg 612 614 603 609 611
W10 Supporting point
kg 1183 1206 1087 1177 1196
Shipping weight kg 12231 12297 11285 11675 11928
Operating weight kg 13206 13294 11801 12235 12499

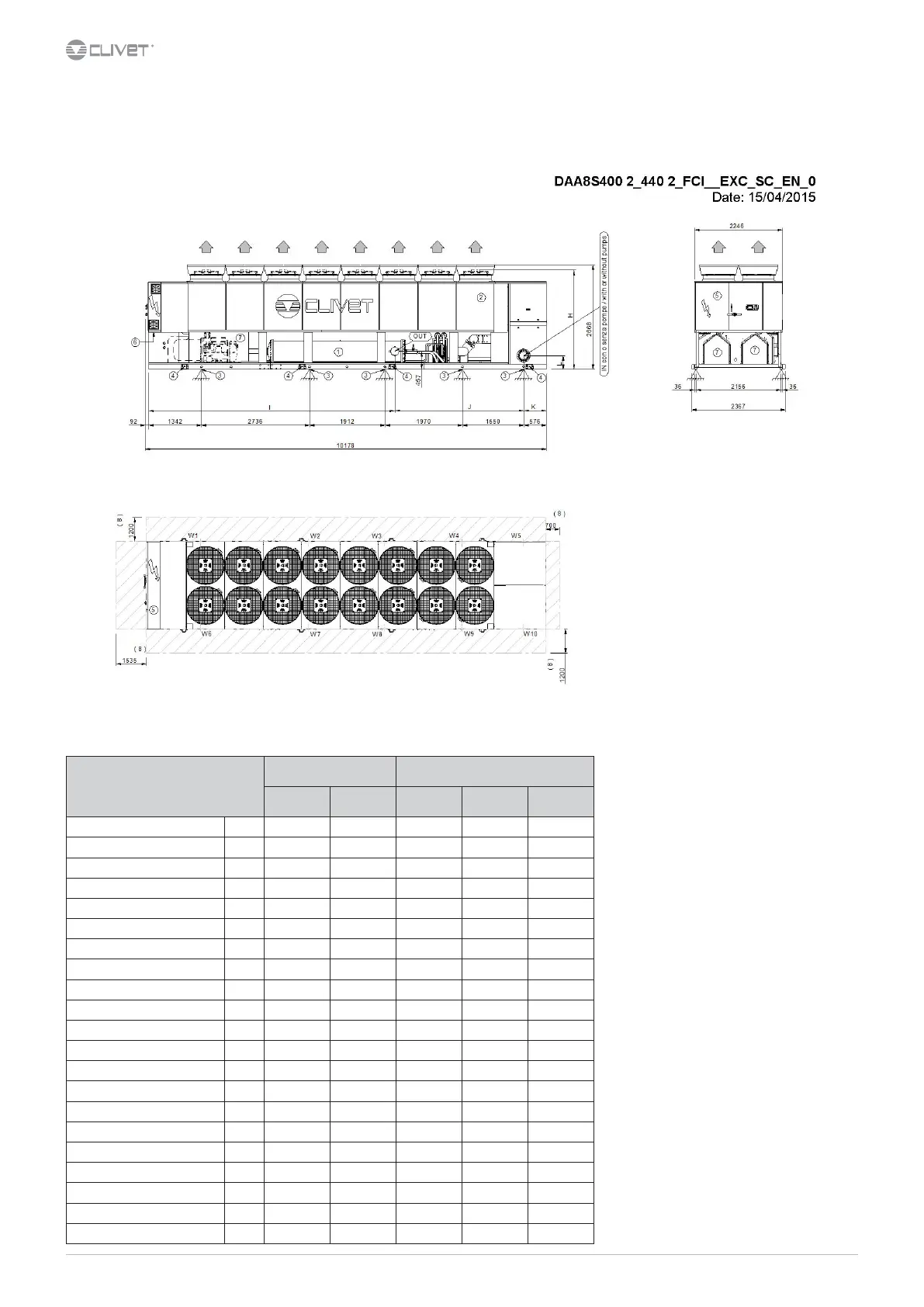

1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
The presence of optional accessories may result in a
substantial variation of the weights shown in the table.
Fan diusers are separately supplied.
Shipping weight referred to unit with glycol solution. For
the unit weight without glycol solution please refer to
the appropriate technical bulletin table.

