WiRELESS NEtWORK OVERViEW
Volume Zones A–F
Each channel (1-2-3) can have up to 6
different volume zones (A-F). Individuallly
set volume in each zone. Master volume
controls all zones.
Channels 1-2-3
There are three different channels in the network. Three CTX transmit-
ters can send from three different sound sources at the same time in
same area.
Features
- Full CD quality transmission
- No time delay
- RF band 2.4 GHz
- Sample rate 48 KHz
- Range 20–100 m
- Channel sniffing
- Frequency hopping
- 3 channels
- 6 volume zones
- 10 ID codes
For more technical specifications,
visit www.sonabaudio.com
ID Codes 0–9
Each channel can be set to 10 different ID codes.
This is a password solution so no audio signal will be
heard in other nearby systems using same channel.
This a an option to use when changing CHANNEL
(1-2-3) on nearby systems has been done first.
Avoid using more than 2 ID Codes on nearby
systems using same channel.

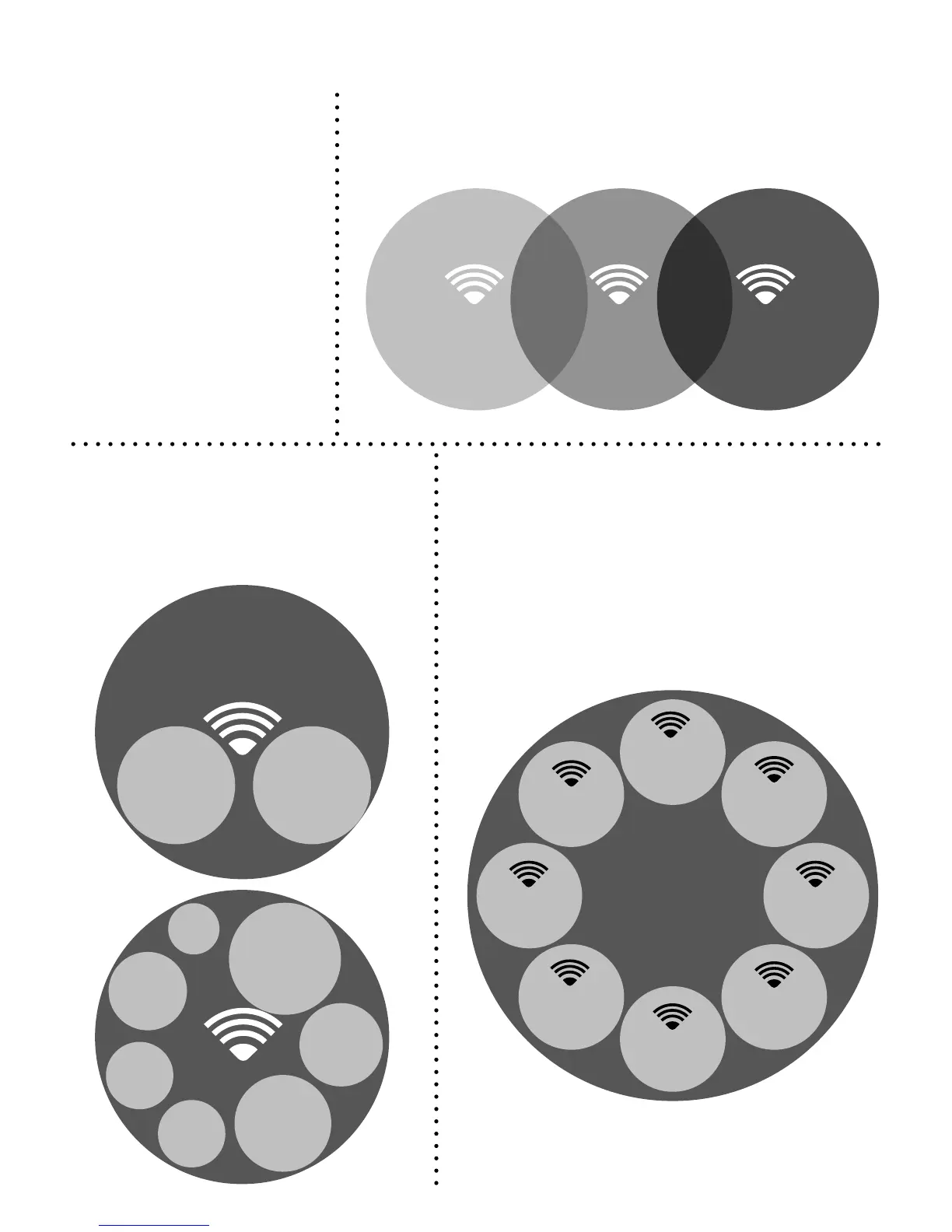

Channel 1,
zone A
Channel 1,
zone B
Channel 1,
zone C
Channel 2
MANY NEARBY
SONAB WIRELESS
SYSTEMS
Zone A
Zone B
Zone C
Zone E
Zone A
Zone D
Zone C
Channel 1 Channel 3Channel 2
Note:
Using same channel on nearby systems, with different ID
codes, will effect network performance.
Channel 1
ID code 1
Channel 2
ID code 1
Channel 3
ID code 1
Channel 1
ID code 2
Channel 2
ID code 2
Channel 3
ID code 2
Channel 1
ID code 3
Channel 2
ID code 3
