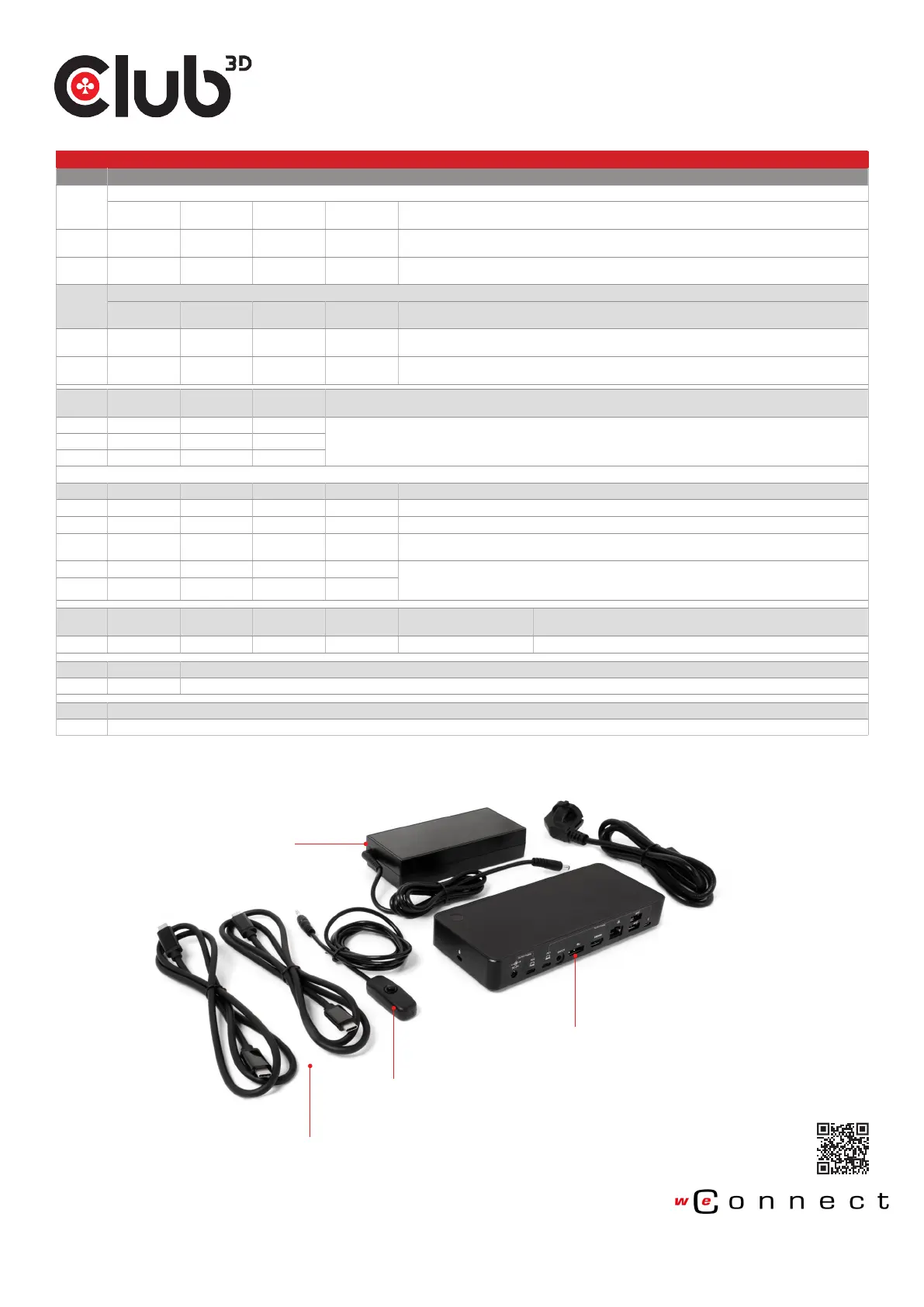

CSV-1585 QUICK INSTALLATION GUIDE
CSV-1585 QIG 01 2024 - page 2/2
DisplayPort™/HDMI™ KVM Switch/Dock 4K60Hz for USB Type-C inputs
Disclaimer: While we endeavour to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Products might obtain a certification during their lifetime. This doesn’t
change or alter the product specifications and/or performance in any way. Club 3D will provide the updated information on their website www. Club-3d.com at her discretion. Therefore Club 3D does not accept any rights claimed on the content of this document. Please
refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
Copyright © 2024, Club 3D B.V. www.club-3d.com
Warning Safe Usage: Only to be used at altitude 2000 meters/6562 feet and below.
INTERFACE SPECIFICATION CSV-1585
Type Details
Video1
Support MST function on Windows systems
Singledisplay
(DP™1.4)
Singledisplay
(DP™1.2)
Dualdisplay
(DP™1.4)
Dualdisplay
(DP™1.2)
HDMI™ 3840*2160/60Hz 3840*2160/30Hz 3840*2160/30Hz 1920*1080/60Hz
Support HDMI™ receptacle
(connect to HD display, LCDTV, projector etc., max resolution support 3840*2160/60Hz, compatible all resolution below 3840*2160/60Hz.)
DP™ 3840*2160/60Hz 3840*2160/30Hz 1920*1080/60Hz 1920*1080/60Hz
Support DP™ receptacle
(connect to HD display, LCDTV, projector etc., max resolution support 3840*2160/60Hz, compatible all resolution below 3840*2160/60Hz.)
Video2
Support SST function on Mac OS system
Singledisplay
(DP™1.4)
Singledisplay
(DP™1.2)
Dualdisplay
(DP™1.4)
Dualdisplay
(DP™1.2)
HDMI™ 3840*2160/60Hz 3840*2160/30Hz 3840*2160/60Hz 3840*2160/30Hz
Support HDMI™ receptacle
(connect to HD display, LCDTV, projector etc., max resolution support 3840*2160/60Hz, compatible all resolution below 3840*2160/60Hz.)
DP™ 3840*2160/60Hz 3840*2160/30Hz 3840*2160/60Hz 3840*2160/30Hz
Support DP™ receptacle
(connect to HD display, LCDTV, projector etc., max resolution support 3840*2160/60Hz, compatible all resolution below 3840*2160/60Hz.)
USB-A
interface
Speed Version BC1.2
USB-A1 5Gbps(640MB/s) 3.0/2.0 N/A
Support USB3.0
(Connect with USB FlashDrive, Mouse, Keyboard, Mobile HD. The max tansmission bandwidth of USB3.0 up to5 Gbps(640MB/S), Compatible USB2.0 Max
transmission bandwidth up to 480Mbps(60MB/s)
USB-A2 5Gbps(640MB/s) 3.0/2.0 N/A
USB-A3 5Gbps(640MB/s) 3.0/2.0 √
USB-C/F Charge Speed BC1.2 DeductPower
PC1 N/A N/A N/A N/A Connect with tablets, laptops, desktop hosts, etc.
PC2 N/A N/A N/A N/A Connect with tablets, laptops, desktop hosts, etc.
USB-C1 PD3.0/100W N/A N/A N/A
Supply power for PC1 though C1 port, the charging power depends on PD adapter. Max power delivery for charging is 100W support to
connect with 5V/1A---20V/5A fast charger.
USB-C2 5Gbps(640MB/s) 3.0/2.0 √ N/A Support USB3.0
(Connect with USB Flash Drive, Mouse, Keyboard, Mobile HD. The max transmission bandwidth of USB3.0 up to 5Gbps(640MB/S),
Compatible USB2.0 Max transmission bandwidth up to 480Mbps(60MB/s)
USB-C3 5Gbps(640MB/s) 3.0/2.0 √ N/A
AUDIO Stereophonic MIC Record
Earphones Cable
control function
Sampling Rate Supported Standard
AUDIO √ √ √ 24bit/96KHz CTIA Support stereophonic output,recording and headset button control.
Network Speed
RJ45 10/100/1000M Support Gigabit Ethernet, downward compatible.
SWITCH port
SWITCH Connect with manual switch through this port, same function with POWER SWITCH, be used to switch between from on/off and PC1/PC2.
• 1X CSV-1585 DisplayPort™/HDMI™ KVM
Switch/Dock 4K60Hz For USB Type-C inputs
• Power Supply 100-240VAC/
20V/6A DC 120Watt
(Specify Power Plug)
• 2x USB Type-C Cable
length approx.: 1m / 3.28 ft
• 1x Remote Cable length
approx.: 1m / 3.28 ft
