INSTALLATION INSTRUCTIONS FOR CMP CABLE GLAND TYPES A2F

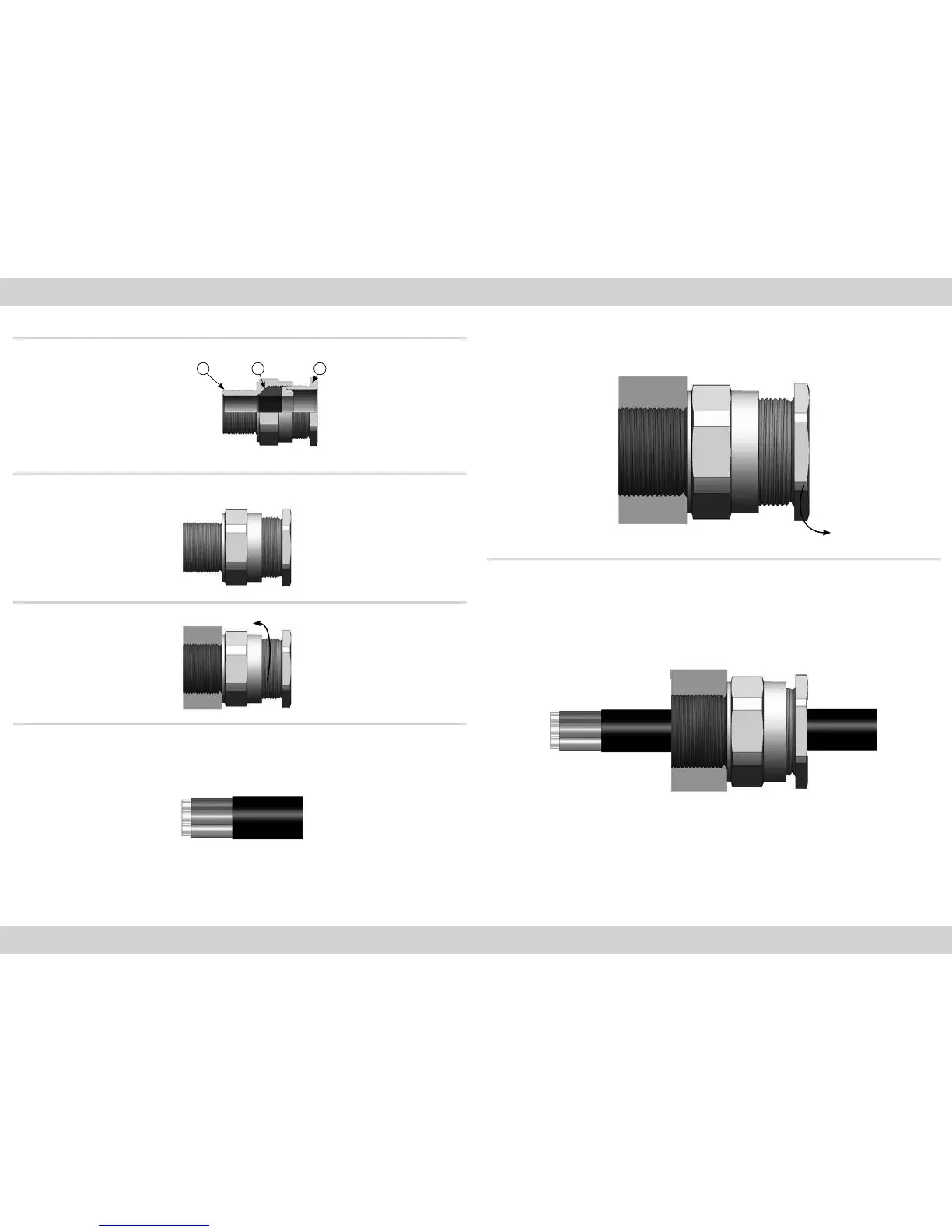

CABLE GLAND COMPONENTS - It is not necessary to dismantled the cable gland any further than illustrated below
1. Entry Item
2. Seal
3. Seal Nut
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING THE INSTALLATION
1. It is not necessary to dismantle the gland any further than illustrated below.
3. Determine the conductor length required to suit the installation and prepare the cable accordingly, removing part of the outer sheath
where required to reveal the insulated conductors.
4. Slacken the seal nut (3) to relax the seal (2).
5. Pass the cable through the gland to the desired position, then tighten the seal nut by hand until resistance is felt (when the seal
contacts the cable). Tighten with a spanner one further turn.
2. Fit the gland into the equipment and fully tighten the entry item (1).
1. 2. 3.
