CN 80 - Page 4

Page 4

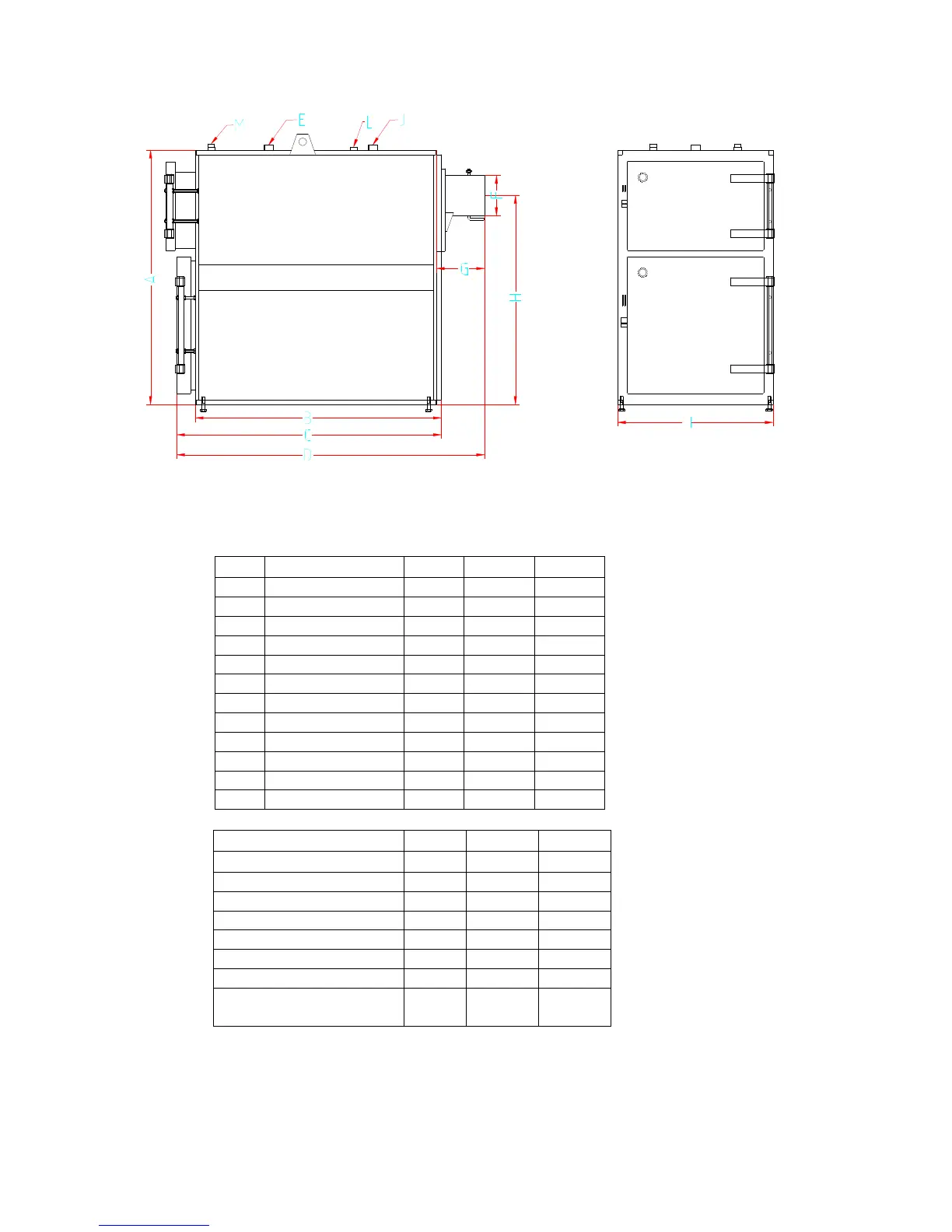

Key CN 80 CN 120
A mm 1700 1780
B mm 1540 1540
C mm 1800 1800
D mm 2130 2130
E Return pipe mm 2” 2”
F Smoke outlet mm 250 250
G mm 300 310
H mm 1400 1480
I mm 980 1180
J Supply / Return inches
2” 2”
L Expansion vessel inches
1” 1”
M Flue regulator inches
1” 1”
Yield wood
kW
65 100
Yield automatic stoking
kW
80 120
Heat surface m2 7.5 9.6
Volume fire chamber m2 0.75 1.07
Test pressure bar 4 4
Water content litre 490 560
Fire box diameter mm 815 970
Fire box depth mm 1450 1450
Smoke tube stub
diameter
mm 250 250
