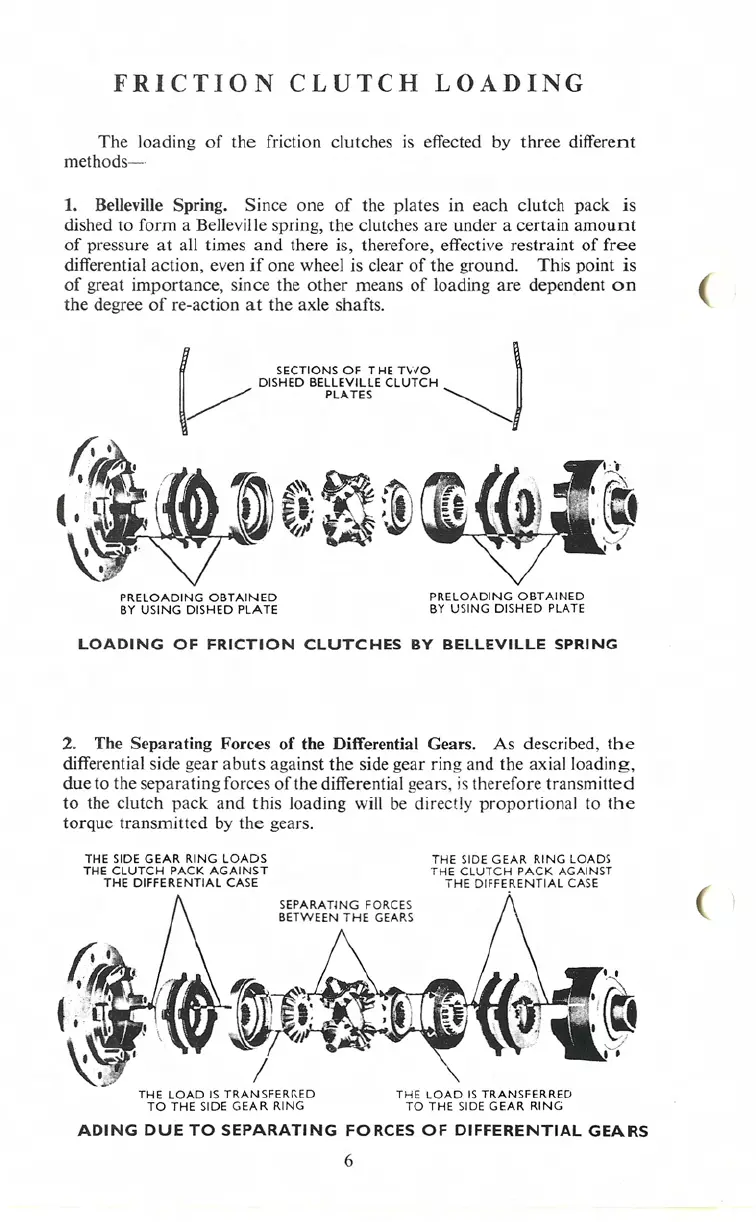

FRICTION CLUTCH LOADING
The loading of the friction clutches is effected by three different
methods-
1. Belleville Spring. Since one of the plates in each clutch pack is
dished to form a Belleville spring, the clutches are under a certain amount
of pressure at all times and there is, therefore, effective restraint of free
differential action, even if one wheel is clear of the ground. This point is
of great importance, since the other means of loading are dependent
on
the degree of re-action at the axle shafts.
{
SECTIONS OF T HE TV~O )
DISHED BELLEVIL LE CLUTCH
/ PLATES ~
!O
J
~\~"
®
•. ~t: ~
~ tll~··
PRELOADING OBTAINED
BY USING DISHED PLATE
PRELOADING OBTAINED
BY USING DISHED PLATE
LOADING OF FRICTION CLUTCHES BY BElLEVILLE SPRING
2. The Separating Forces of the Differential Gears. As described, the
differential side gear abuts against the side gear ring and the axial loading,
due to the separating forces of the differential gears, is therefore transmitted
to the clutch pack and this loading will be directly proportional to the
torque transmitted by the gears.
THE SIDE GEAR RING LOADS
THE CLUTCH PACK AGAINST
THE DIFFERENTIAL CASE
THE SIDE GEAR RING LOADS
THE CLUTCH PACK AGAINST
THE DIFFERENTIAL CASE
THE LOAD IS TRANSFERr,ED
TO THE SIDE GEAR RING
THE LOAD IS TRANSFERRED
TO THE SIDE GEAR RING
ADING DUE TO SEPARATING FORCES OF DIFFERENTIAL GEARS
