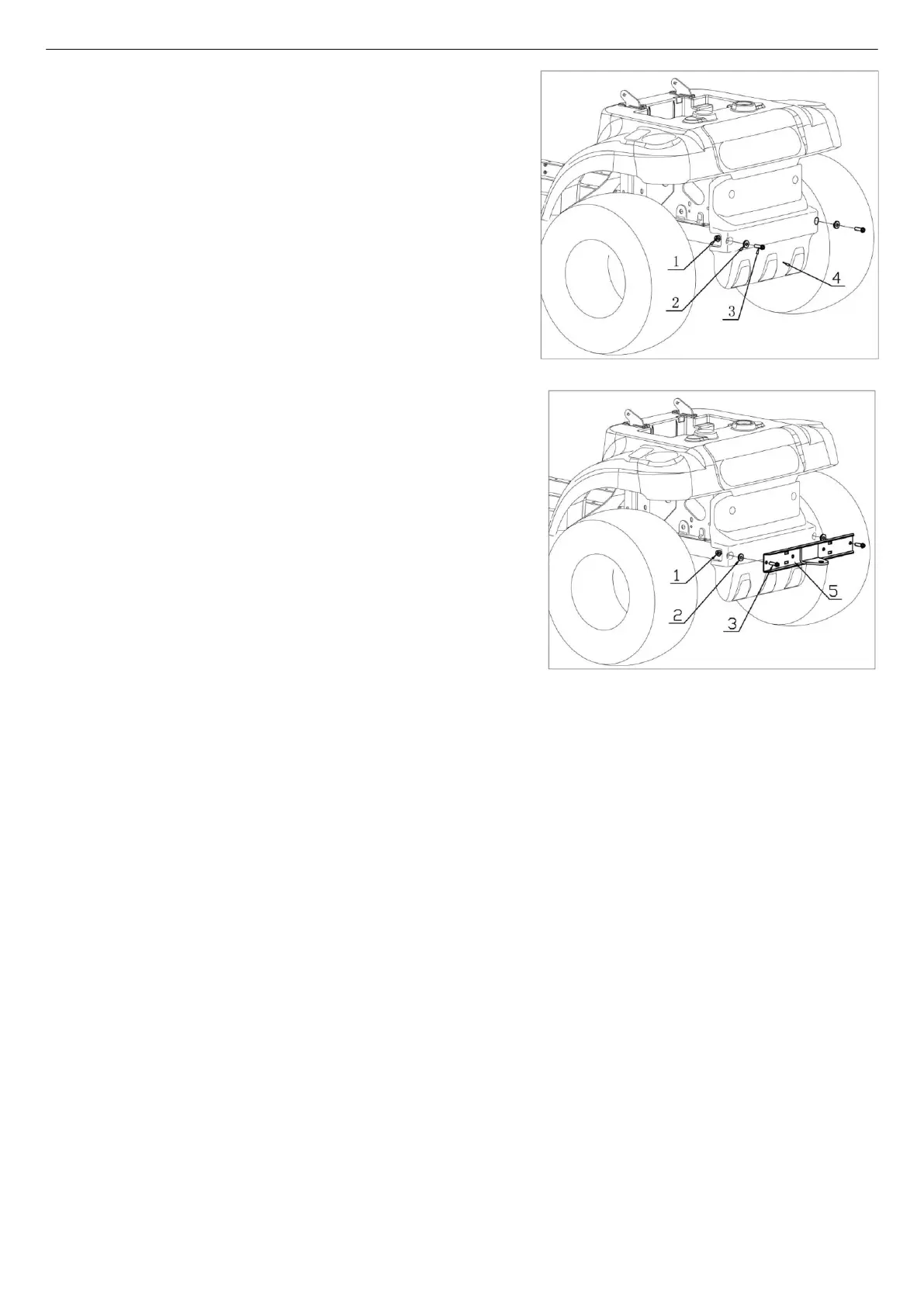

MOUNTING THE TOWING KIT
a. Remove the tension arm bushing (2), the hexagonal flange
bolts M8×20 (3), and the hexagonal flange locking nuts M8 (1)
that secured the gearbox cover (4);
b. Insert the bushing (2) into the two holes where the bolts were
just removed, align the towing plate (5),
Then install the hexagonal flange bolts M8×40 (3), hexagonal
flange locking nut M8 (1), and then tighten the bolt.
