Turning On Your microTALK
®
Radio
1. Press and hold the Power button for two
(2) seconds. A series of audible tones will
indicate the radio is On.
Your microTALK
®
radio is now in Standby Mode,
ready to receive transmissions. The radio is
always in Standby Mode except when the Talk
or Call buttons are pressed.
Battery Low
When battery power is low, the Battery Low
icon will blink. Your batteries should be replaced
or recharged, if using rechargeable batteries.
Battery/Power Saver
Your microTALK
®
radio has a unique circuit
designed to extend battery life. If there are no
transmissions within ten (10) seconds, the radio
will automatically switch to Battery Save Mode.
This will not affect the radio’s ability to receive
incoming transmissions.
Talking to Another Person
1. Press and hold the Talk button.
2. With the microphone about two (2) inches (5cm)
from your mouth, speak in a normal voice.
3. Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
Both radios must be tuned to
the same channel to communicate.
Selecting a Channel
1. With the radio on, select any of the 22
channels by pressing the Channel Up or
Channel Down button.
Both radios must be tuned to
the same channel to communicate.
7
English
Using Your Radio
6
English
Using Your Radio
5
English
Using Your Radio
4
English
Product Features
Battery
Compartment
Battery
Door Latch
Belt Clip
3
English
Product Features
2
English
Making Life Easier & Safer
PR135
2-WAY RADIO MODEL
Nothing Comes Close To A Cobra
™
English
Owner’s Manual
Introduction Introduction Introduction
Staying in touch with your family and friends is
convenient and easy when using your microTALK
®
radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking, and working; keeping
track of family and friends at a crowded public event; checking with
travel companions in another car; talking with neighbors; arranging
meeting spots with others while shopping at the mall.
Secure your microTALK
®
radio while on the go.
Carrying your microTALK
®
radio with you is
easy when using the belt clip or wrist strap.
The belt clip easily attaches to your belt, purse,
or backpack. Simply squeeze the clip and place
it where you prefer.
For Assistance In the U.S.A.
In this user’s manual, you should find all the information you need
to operate your microTALK
®
radio. If you require further assistance
after reading this manual, Cobra
®
Electronics offers the following
customer assistance services:
Automated Help Desk
English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators
English and Spanish. 8:00 a.m. to 6:00 p.m. CT,
Monday through Friday (except holidays) 773-889-3087 (phone).
Questions
English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only. www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo
@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
IMPORTANT NOTICE: FCC LICENSE REQUIRED
This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which
require an FCC (Federal Communications Commission) license. A user must be licensed
prior to operating on channels 1 through 7 or 15 through 22, which comprise the GMRS
channels of this radio. Serious penalties could result for unlicensed use of GMRS channels,
in violation of FCC rules, as stipulated in the Communications Act’s Sections 501 and
502 (amended).
Licensed users will be issued a call sign by the FCC, which should be used for
station identification when operating this radio. GMRS users should also cooperate
by engaging in permissible transmissions only, avoiding channel interference with
other GMRS users, and being prudent with the length of their transmission time.
For licensing information and application forms, please call the FCC Hotline
at 800-418-FORM. Request form #159 and form #605. Questions regarding
the license application should be directed to the FCC at 888-CALL-FCC.
Additional information is available on the FCC’s website at www.fcc.gov.
Safety Information for microTALK
®
radios
Your wireless handheld portable transceiver contains a low power transmitter.
When the PTT button is pushed, it sends out radio frequency (RF) signals.
The device is authorized to operate at a duty factor not to exceed 50%. In August
1996, the Federal Communications Commissions (FCC) adopted RF exposure
guidelines with safety levels for handheld wireless devices.
Important:
To maintain compliance with the FCC’s RF guidelines, hold the transmitter at least
2 inches (5 centimeters) from your face and speak in a normal voice, with the antenna
pointed up and away. If you wear the handset on your body while using the headset
accessory, use only the Cobra
®
supplied belt clip for this product and ensure that the
antenna is at least 1 inch (2.5 centimeters) from your body while transmitting. If the
distance between the antenna and the body is LESS THAN 1.0" (2.5 cm), DO NOT USE
THIS DEVICE IN THE BODY WORN CONFIGURATION. Use only the supplied antenna.
Unauthorized antennas, modifications, or attachments could damage the transmitter
and may violate FCC regulations.
Normal Position:
Hold the transmitter approximately 2" from your face and speak
in a normal voice, with the antenna pointed up and away.
©2002 Cobra
®
Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
On/Off
Power Button
Backlit
LCD
Display
Channel
Up/Down
Buttons
Speaker/
Microphone
Call
Button
Light/
Max Range
Button
Antenna
Volume Up/
Down Button(s)
Lock
Button
Features
• Two-Way Radio
With a range up to
two (2) miles (3 km).
• 22 Channels
Seven shared with FRS/
GMRS, seven FRS only,
and eight GMRS only.
• UHF FM Frequencies
• Backlit LCD Display
• Call Alert
• Key Lock Button
• “Roger Beep”
Selectable On/Off
confirmation tone.
• Battery/Power Saver
• Auto Squelch
• Maximum
Range Extender
• Belt Clip
• Wrist Strap
Talk
Button
Channels 1 through 7 are shared with FRS/
GMRS. Channels 8 through 14 are FRS only.
Channels 15 through 22 are GMRS only.
See page 8 for FRS/GMRS frequency
allocations and compatibility charts.
Listening for a Response
When You are Finished Talking:
1. Release the Talk button to receive incoming
transmissions. Your microTALK
®
radio is
always in Standby Mode while the Talk or
Call buttons are not pressed.
Adjusting the Volume
1. Adjust the volume by pressing the
Volume Up or Volume Down button.
Calling Another Person
1. To alert another person that you are
calling, press the Call button.
The other person will hear a two (2) second ringing
tone. You cannot send or receive transmissions
during the two (2) second call tone.
“Roger Beep” Confirmation Tone
Your listener will hear an audible tone when you
release the Talk button. This alerts the other party
that you are finished talking and it is OK for them
to speak. This feature can be turned On or Off.
Turning “Roger Beep” On or Off
When turning On your microTALK
®
radio for
the first time, “Roger Beep” will be On.
1. Press the Call and Lock buttons at the same
time to turn the “Roger Beep” On or Off.
The setting you select will be saved when you
turn your radio Off and On again. When the
Roger Beep is On, the Roger Beep icon will
be displayed.
Illuminating the Display
1. Press the Light/Max Range button to
illuminate the display for ten (10) seconds.
Operation Operation Operation Operation
Maximum Range
Your microTALK
®
radio is equipped with Auto
Squelch, which automatically shuts Off weak
transmissions and unwanted noise due to
terrain, conditions, or if you’ve reached your
maximum range limit.
You can temporarily turn Off Auto Squelch,
allowing all signals to be received and extending
the maximum range of your radio.
To Turn Maximum Range Extender On:
1. Press and hold the Light/Max Range button
for five (5) seconds. You will hear two (2)
beeps indicating your radio is On.
To Turn Maximum Range Extender Off:
1. To turn Maximum Range Extender Off,
press and hold the Light/Max Range button
for one (1) second or change channels.
Using Lock
The Lock button locks the Channel and Power
buttons to prevent accidental operation.
To Use the Lock Function:
1. Press the Lock button for one (1) second
to turn the Lock On or Off.
A double beep sound is used to confirm your
Lock On or Off request. When in Lock Mode,
the Lock icon will be displayed.
microTALK
®
Range
Your microTALK
®
radio has a range of up to two
(2) miles (3 km). Your range will vary depending
on terrain and conditions. In flat, open country
your radio will operate at maximum range.
Buildings and foliage in the path of the signal
can reduce the range.
Dense foliage and hilly terrain will further
reduce the signal.
Remember, you can achieve
maximum range by using Maximum
Range Extender. See above for details.
C. Transmitter
1. Power . . . . . . . . . . . . . . . . . . . mW 500
2. Carrier Frequency Stability . . . . ±Hz 500
3. Modulation Limiting . . . . . . . . KHz 2.5
4. Carrier Attack Time . . . . . . . . . mS 80
5. Audio Frequency Response
@ 300 HZ . . . . . . . . . . . . . . . . dB -12
@ 2500 HZ . . . . . . . . . . . . . . . dB 3
6. Audio Distortion . . . . . . . . . . . . % 3
7. Hum Noise . . . . . . . . . . . . . . . dB 30
8. Transient Frequency Behavior
a) TX On . . . . . . . . . . . . . . . . . mS 30
b) TX Off . . . . . . . . . . . . . . . . mS 5
A. FRS/GMRS
Frequency
Allocation and
Compatibility
Important: Please note that Cobra
®
GMRS
models with 15 channels may designate
different channel numbers for the same
frequency. For example, a Cobra
®
15 channel
GMRS model would need to be tuned to
channel 11 in order to communicate with
a 22 channel GMRS tuned to channel 15.
Please refer to the chart below for channel/
frequency number compatibility.
A= 22 Channel GMRS
Channel No. Displayed
B = Channel No. For 15
Channel GMRS Models
C = Type of Radio Service
D = Frequency in MHz
E = Power in Watts
AB C D E
1 1 FRS/GMRS 462.5625 0.5
2 2 FRS/GMRS 462.5875 0.5
3 3 FRS/GMRS 462.6125 0.5
4 4 FRS/GMRS 462.6375 0.5
5 5 FRS/GMRS 462.6625 0.5
6 6 FRS/GMRS 462.6875 0.5
7 7 FRS/GMRS 462.7125 0.5
8 FRS 467.5625 0.5
9 FRS 467.5875 0.5
10 FRS 467.6125 0.5
11 FRS 467.6375 0.5
12 FRS 467.6625 0.5
13 FRS 467.6875 0.5
14 FRS 467.7125 0.5
15 11 GMRS 462.5500 0.5
16 8 GMRS 462.5750 0.5
17 12 GMRS 462.6000 0.5
18 9 GMRS 462.6250 0.5
19 13 GMRS 462.6500 0.5
20 10 GMRS 462.6750 0.5
21 14 GMRS 462.7000 0.5
22 15 GMRS 462.7250 0.5
B. Receiver
1. Sensitivity
For 12 DB SINAD . . . . . . . . . . dBm -122
For Call Signal Detection . . . . dBm -122
2. Max. Audio Output
@1 0 % T H D . . . . . . . . . . . . . . . mW 350
3. Max. S/N Ratio
@ 1mV RF Input . . . . . . . . . . . . dB 40
4. Squelch
a) Sensitivity . . . . . . . . . . . . dB sinad 10
b) Attack Time . . . . . . . . . . . . . mS 120
c) Closing Time . . . . . . . . . . . . mS 200
5. Audio Frequency Response
@ 300 HZ . . . . . . . . . . . . . . . . . dB -3
@ 2500 HZ . . . . . . . . . . . . . . . . dB -10
6. Signal Displacement BW . . . . +/-KHz 6
7. Adjacent Channel Rejection . . . . dB 50
8. Intermodulation Rejection . . . . . dB 65
9. Spurious Response Rejection . . . . dB 55
D. Power Supply
1. Battery Life (5:5:90 RATIO)
With Alkaline Batteries . . . . . . HR 24
2. Battery Operating Range . . . . . . V 4.2 – 6.0
Nominal
Unit
Customer Assistance Customer Assistance
This device complies with part 15 of the FCC rules. Operation is subject
to the condition that this device does not cause harmful interference.
FCC Warnings: Replacement or substitution of transistors, regular diodes or
other parts of a unique nature, with parts other than those recommended by
Cobra
®
may cause a violation of the technical regulations of part 95 of the FCC
Rules, or violation of type acceptance requirements of part 2 of the Rules.
Important FCC Licensing Information
This radio operates on General Mobile Radio Service (GMRS)
frequencies which require a Federal Communications Commission
(FCC) license. See page 9 for licensing and additional information.
Caring for Your microTALK
®
Radio
Your microTALK
®
radio will give you years of trouble-free service if
cared for properly. Handle the radio gently. Keep the radio away from
dust. Never put the radio in water or in a damp place. Avoid exposure
to extreme temperatures.
Installing and Replacing Batteries
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Pull up on the Battery Latch to remove
the battery compartment cover.
3. Insert four (4) AAA batteries. (Always use high
quality alkaline batteries.) Position batteries
according to polarity markings.
4. Replace Battery Compartment cover and belt clip.
See information on page 11 for
optional battery pack and desktop
charger accessories.

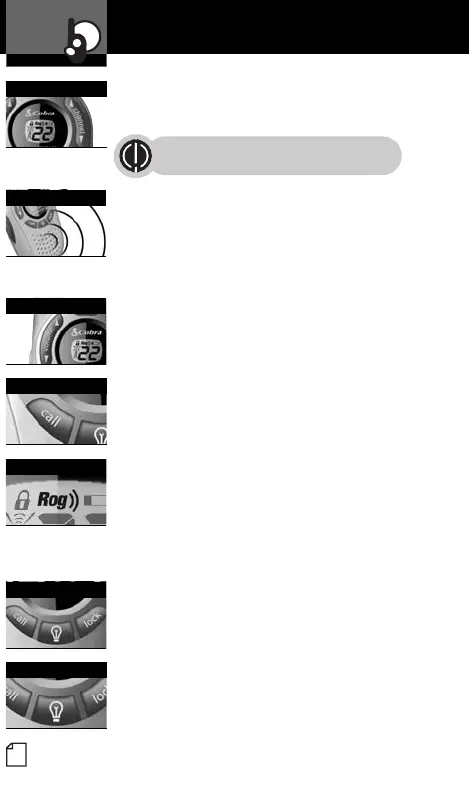

Insert Batteries
Pull Up Lock Tab
Remove Belt Clip
Backlit LCD
Display
Receive/Transmit
Tower Icon
Lock
Icon
Roger
Beep Icon
Battery
Low Icon
Main Channel Numbers
On/Off Power
Battery Low
Channel Select
Channel Select
Call Button
Talk Button
Listening
2" From Mouth
Adjusting Volume
Call/Lock
Roger Beep Icon
Light/Max Range
Lock Icon
Press Lock Button
Light/Max Range
Maximum Range
Reduced Range
Reduced Range
Printed in China Part No. 480-047-P
Belt Clip
Wrist Strap
Wrist Strap
Connector
If you have any questions about operation or installing
your new Cobra
®
product, or if you are missing parts…
Please call Cobra
®
first! DO NOT RETURN THIS PRODUCT
TO THE STORE! See customer service on page 2.
Product Service Questions
If your product should require factory service, please call Cobra
®
first before sending your radio.
This will ensure the fastest turn-around time on your repair. You may be asked to send your radio to the
Cobra
®
factory. It will be necessary to furnish the following to have the product serviced and returned.
1) For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction
or carbon of a sales receipt. If you send the original receipt, it cannot be returned; 2) Send the entire
product; 3) Enclose a description of what is happening with the radio. Include a typed or clearly
printed name and address of where the radio is to be returned; 4) Pack radio securely to prevent
damage in transit. If possible, use the original packing material; 5) Ship prepaid and insured by way
of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit
to Cobra
®
Factory Service, Cobra
®
Electronics Corporation, 6500 West Cortland Street, Chicago,
Illinois 60707 USA; 6) If the radio is in warranty, upon receipt of your radio it will either be
repaired or exchanged depending on the model. Please allow approximately 3 – 4 weeks before
contacting Cobra
®
for status. If the radio is out of warranty, a letter will automatically be sent
informing you of the repair charge or replacement charge. If you have any questions,
please call 773-889-3087 for assistance.
Limited 2-Year Warranty For Products Purchased in the U.S.A.
Cobra
®
Electronics Corporation warrants that its Cobra
®
GMRS radios, and the component parts
thereof, will be free of defects in workmanship and materials for a period of two (2) years from the
date of first consumer purchase. This warranty may be enforced by the first consumer purchaser,
provided that the product is utilized within the U.S.A. Cobra
®
will, without charge, repair or replace,
at its option, defective GMRS radios, products or component parts upon delivery to the Cobra
®
Factory Service department, accompanied by proof of the date of first consumer purchase, such
as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges will be at Cobra’s expense, if the product
is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may
also have other rights which may vary from state to state.
Exclusions: This limited warranty does not apply: 1) To any product damaged by accident;
2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or
repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the
product resides outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a particular purpose
are limited in duration to the length of this warranty. Cobra
®
shall not be liable for any incidental,
consequential or other damages; including, without limitation, damages resulting from loss of
use or cost of installation. Some states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitations may not apply to you.
For products purchased outside the U.S.A., please contact your local dealer for
warranty information.
Customer Assistance
Warranty
Customer Assistance
Item Description
#XX-XXX
Item Description
#XX-XXX
Item Description
#XX-XXX
Name
Address (No P.O. Boxes)
City State/Province Zip Country
Telephone
Credit Card Number Type: ❒ Visa ❒ Mastercard ❒ Discover Exp. Date
Customer Signature
The Cobra
®
line of quality products includes:
CB Radios, microTALK
®
Radios, Radar/Laser Detectors,
Safety Alert
®
Traffic Warning Systems, Accessories,
GPS (Global Positioning System), HighGear
™
Accessories
Ordering From U.S.
Call 773-889-3087 for pricing or visit www.cobra.com.
For credit card orders, complete and return this
order form to fax number 773-622-2269. Or call
773-889-3087 (Press 1 from the main menu)
8:00 a.m. to 6:00 p.m. CT, Monday through Friday.
Make check or money order payable to:
Cobra
®
Electronics, Attn: Accessories Dept.
6500 West Cortland Street, Chicago, IL 60707 USA
To order online, please visit our website: www.cobra.com
Shipping/
Amount Handling
$10.00 or less $3.00
$10.01-$25.00 $5.50
$25.01-$50.00 $7.50
$50.01-$90.00 $10.50
$90.01-$130.00 $13.50
$130.01-$200.00 $16.50
$201.01 plus 10% of purchase
For AK, HI and PR add additional $26.95 for FedEx
Next Day* or $10.95 for FedEx 2nd Day* shipments.
Please allow 2-3 weeks for delivery in the U.S.
Prices subject to change without notice.
* Excludes weekends and holidays.
Cobra to drop
in image,
item description
and part number
Cobra to drop
in image,
item description
and part number
Cobra to drop
in image,
item description
and part number
Item # U.S.Cost Each Qty Amount
U.S. Subtotal
(Tax if Applicable)
Shipping/Handling
Total
Tax Table
Illinois add 8.75%
Indiana, Ohio,
Wisconsin add 5%
Michigan add 6%
To Next Page
Loading...
Need help?
General
