Cobra MR F45-D User Manual

Electrical Power Connection
Your CobraMarine VHF radio is powered
from the vessel’s 13.8-volt negative ground
direct current electrical system (12-volt
nominal). A 10A fused power connection
lead is provided at the back of the
transceiver.
To Connect To A Power Source:
1. Attach the black (-) wire to a negative
(-) ground.
2. Attach the fused (10A) red power (+)
wire to the positive (+) side of the
power system.
NOTE
This radio will draw up to 8 amps when transmitting at full power.
NOTICES
A reverse polarity connection will damage the radio.
When replacing the fuse in your transceiver, use only the size and type originally
provided.
Nothing Comes Close to a Cobra
®
Mounting And
Powering The Radio
19
NOTE
All wiring is best kept as short as possible. If the power leads must be extended,
use a high-quality, marine-grade cable sized for up to 10 amps
of current. To minimize voltage drop, choose a wire gauge as follows:
Length Wire Gauge
Up to 1.5m (4.9ft) 1.6 mils (#14)
Up to 3.0m (9.8 ft) 2.0 mils (#12)
Up to 5.0m (16.4 ft) 2.6 mils (#10)
Up to 6.0m (19.7 ft) 3.3 mils (#8)
Installation And Start-Up
18
English
Installation And Start-Up
Mounting And
Powering The Radio

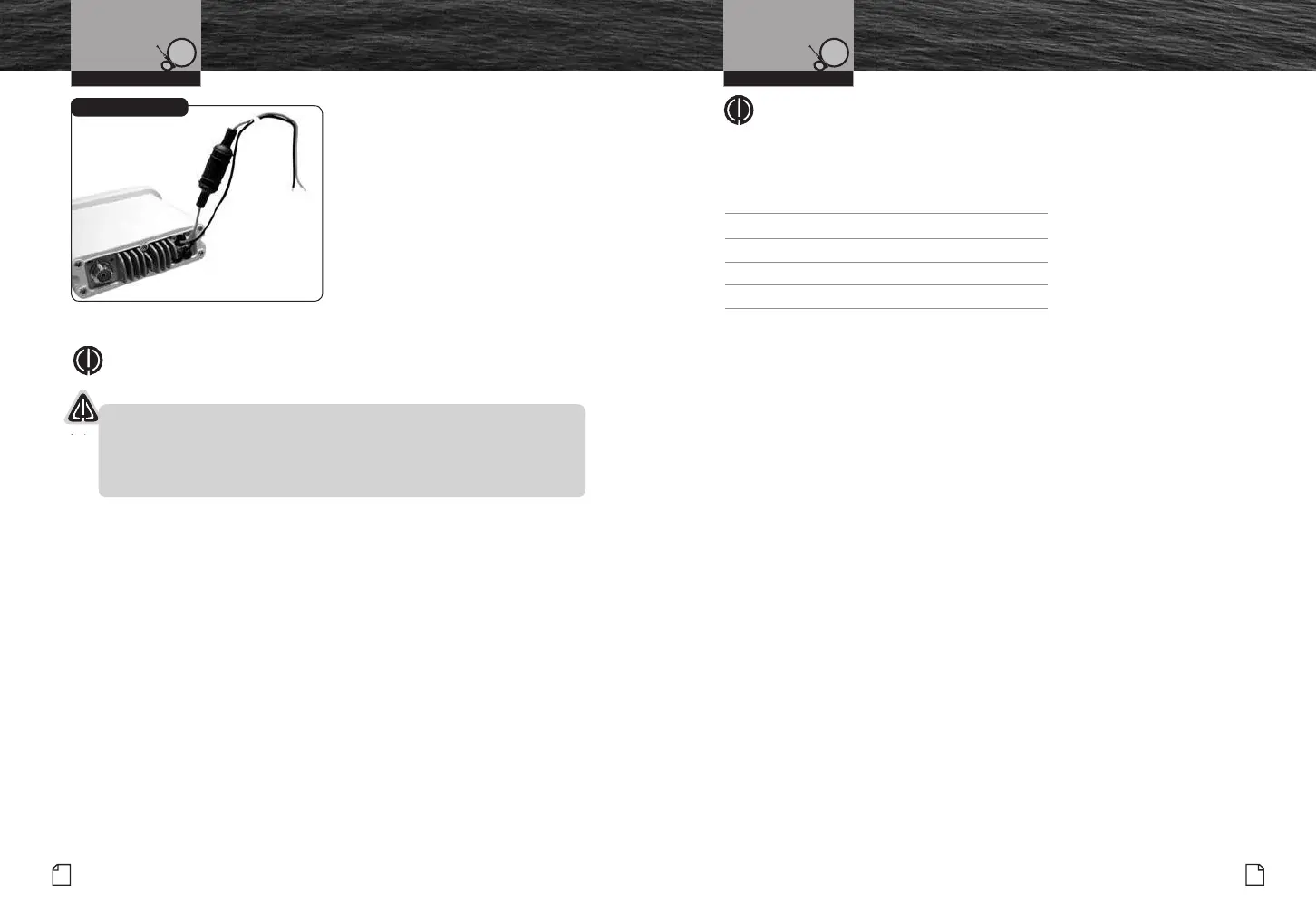

Power Connection Cables
Red Cable
Positive (+)
Black Cable
Negative (-)
– +
F45D_Install_Eng.indd 28-29 12/14/18 11:45 AM

Cobra MR F45-D Specifications

General

Operating frequency	156.025 - 157.425 MHz

Weight and Dimensions

Weight	1100 g
Dimensions (WxDxH)	159 x 180 x 57 mm
