Code 3 Matrix User Manual

Page 5 of 8
Problem Possible Causes(s) Comments/Response
No Communication
Ignition Input
An ignition wire input is rst required to bring the Central Node out of a sleep state. From
that point, the Central Node controls communication with all other Matrix compatible
devices. See the installation manual of the customer selected Central Node for further
troubleshooting of the ignition input.
Connectivity
Ensure that all CAT5 cables are securely connected and fully seated with positive lock
in their respective ports. Remember that the PRI-1 jack at the Central Node must rst be
used, before the SEC-2 jack can be used. Ensure that f an input on the splitter is used,
both outputs must have end nodes connected.
Troubleshooting:

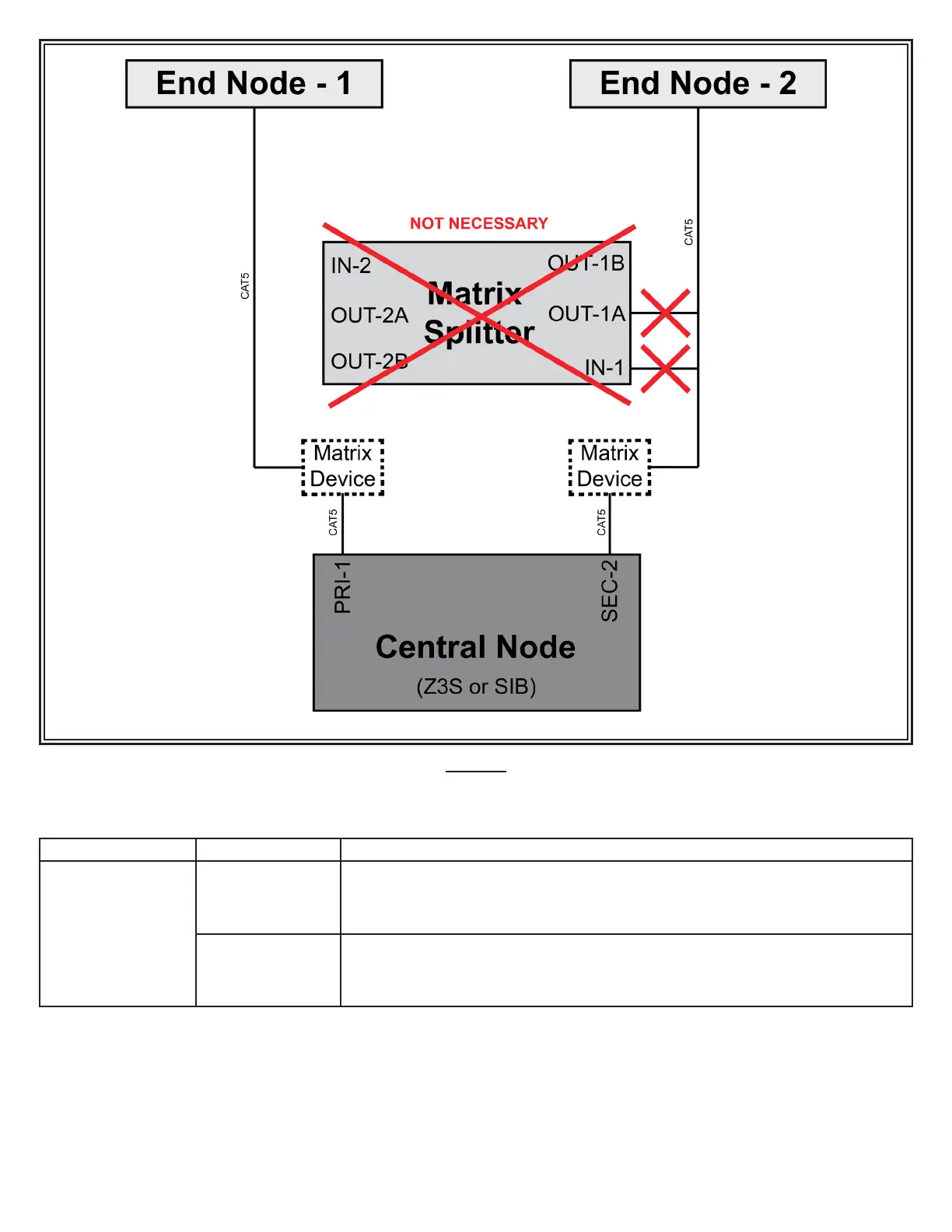

Figure 4
