2. Turn the key 90° clockwise and remove cylinder from boss.
3. With key turned 90° clockwise replace the cylinder, cylinder cover and handle.
* If intending to use a cylinder by a different manufacturer it is advisable to confirm beforehand that the new cylinder will fit the
boss. The CL5000 uses a 6 pin scrw-cap cylinder.
CHANGING KEY BY PASS FUNCTIONS

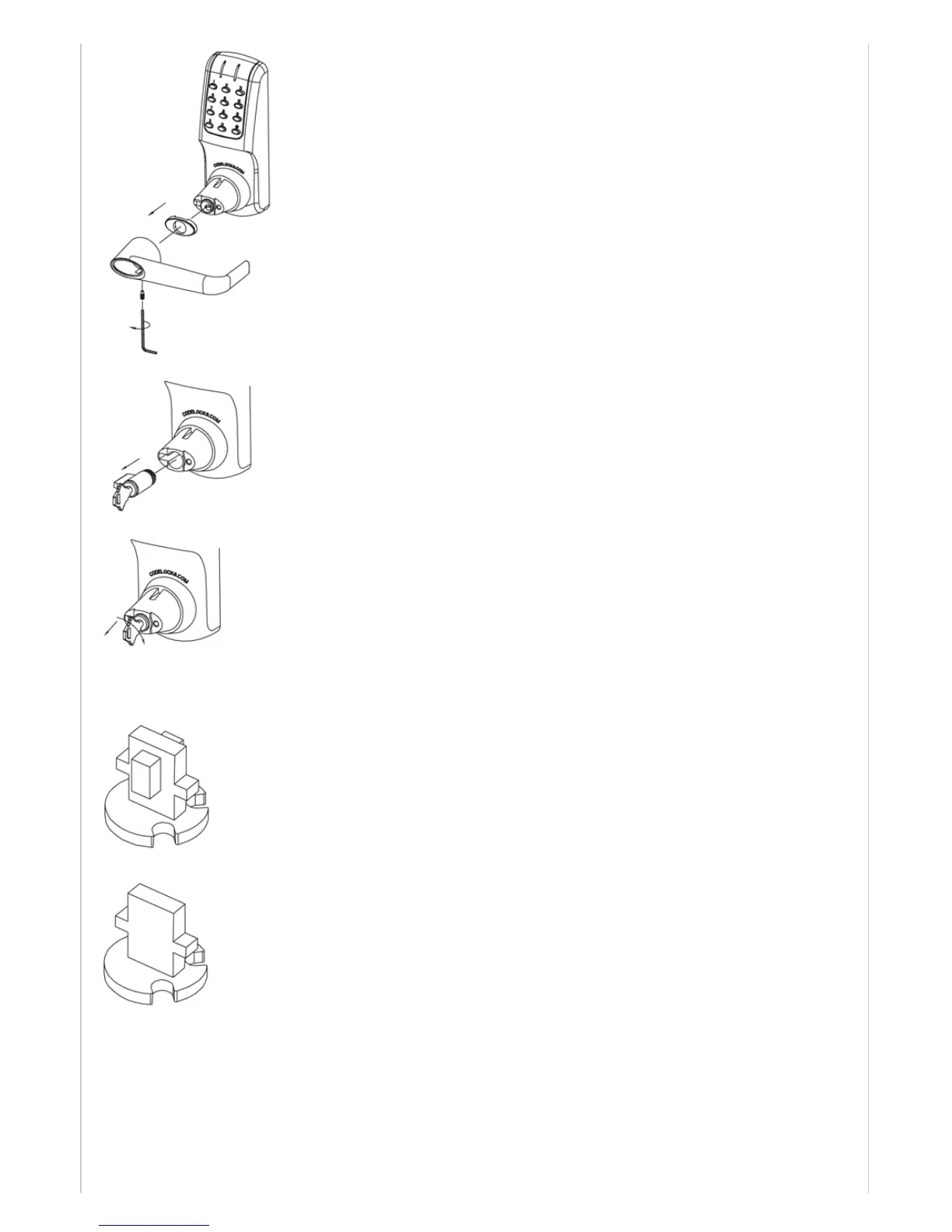

4. Storeroom function tailpiece allows key to turn 90° clockwise to enable handle to retract the latch – this is the factory fitted
function.
5. Classroom function tailpiece allows key to turn 90° clockwise and be removed leaving the handle engaged in Code Free Mode.
Code Free Mode is cancelled by turning key 90° anti-clockwise.
These tailpieces will fit most screw-cap cylinders from other manufacturers.
6. Hold down the control pin in the end of the cylinder and unscrew the cap.
