Installing In-Sight

1720 Series Wafer Readers

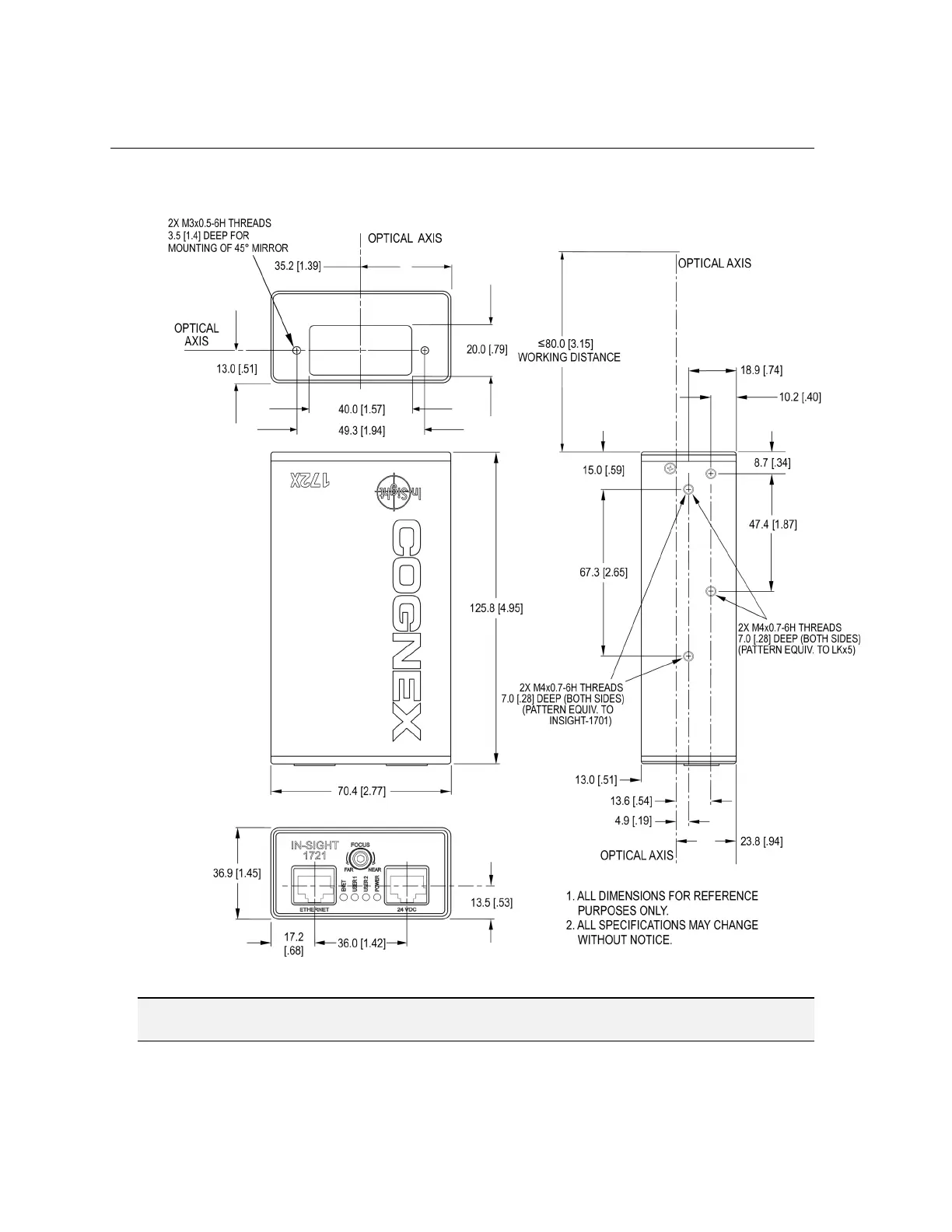

5.4.1 In-Sight 1720 Series Wafer Reader Dimensions

Figure 5-3: In-Sight 1720 Series Wafer Reader Dimensions

CAUTION The wafer reader must be mounted from only one side. Mounting the wafer reader from both sides may

damage optical components. The maximum torque is 1.5 N-m (13.5 in-lb).
