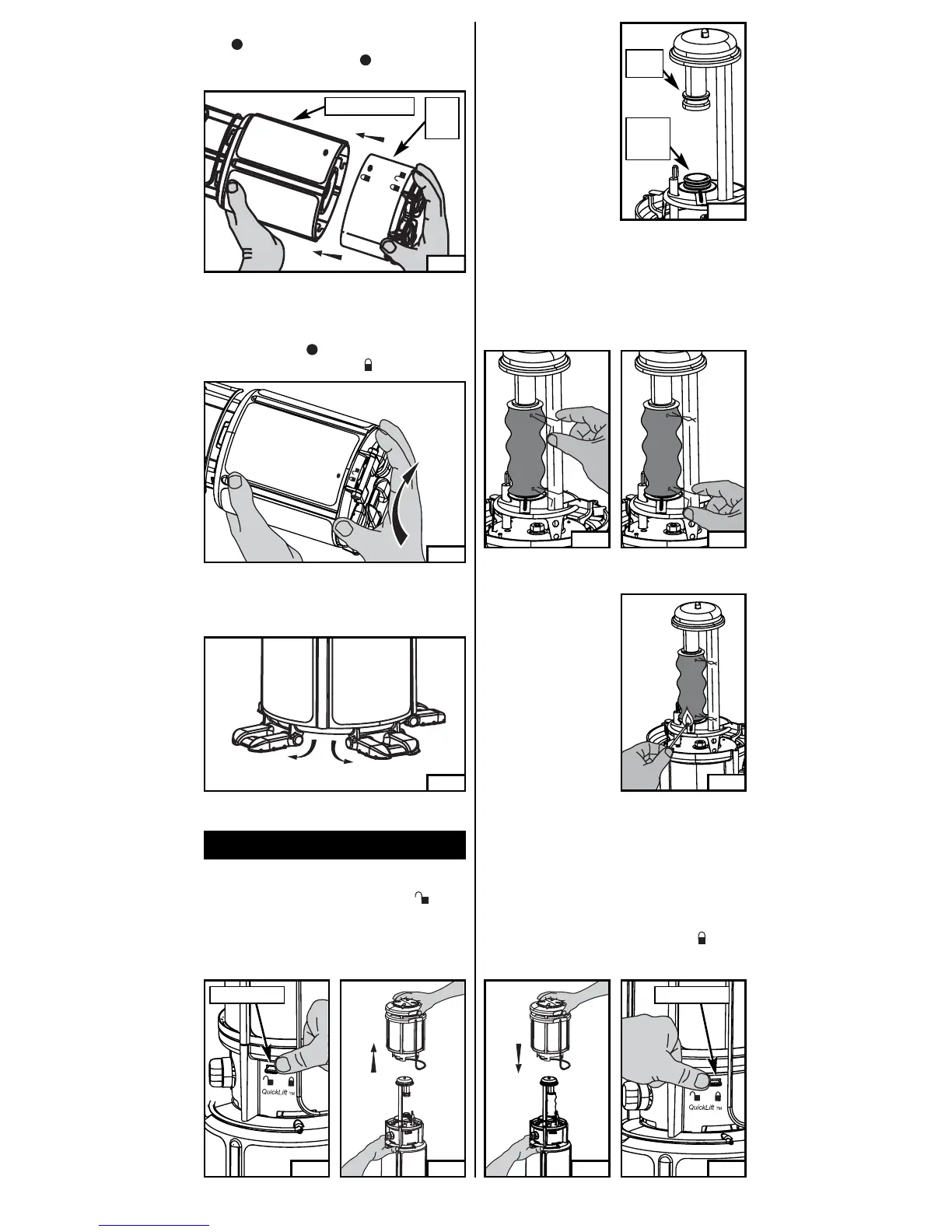

D Install lower carry case. Align the dot symbol
“ “ located on the bottom of the upper carry
case with the dot symbol “ “ on the lower
carry case. (Fig. 10)
Fig. 10
Lower
Carry
Case
Upper Carry Case
English-4
D Always unfold feet on lower carry case before
use. (Fig. 12)
Fig. 12
Fig. 11
D Slide the carry cases together and rotate until
the dot symbol “ “ on the upper carry case
aligns with the lock symbol “ “. (Fig. 11)
To Install Mantles
Fig. 13 Fig. 14
D Move Release Lever to the left until the lever is
above the QuickLift™ unlock symbol “ “.
(Fig. 13)
D Carefully remove the lantern head from the
base. (Fig. 14)
Release Lever
D Light bottom of man-
tle evenly. Burn until
nothing but white
ash remains. Once
the mantle has been
burned, it is very
fragile. Be careful
not to touch it with
finger or match. (Fig.
18)
D Always use genuine
Coleman® #95 size
mantles. If using
Insta-Clip®
II tabbed
mantles, follow the
instructions on the
mantle package.
D If using original wire
clip mantles, attach
MANTLE to BURNER
TUBE AND LOWER
MANTLE SUPPORT.
(Fig. 15) Keep red
stripe vertical and be
sure clips engage grooves.
Fig. 16 Fig. 17
Fig. 15
Lower
Mantle
Support
Burner
Tube
Fig. 18
Fig. 19 Fig. 20
D Replace lantern head, keeping bail toward rear
of lantern. (Fig. 19)
D Move Release Lever to the right until the lever
is above the QuickLift™ lock symbol “ “.
(Fig. 20)
Release Lever
D Twist clips. (Fig. 16 and 17)
