Coleman 3000 SERIES User Manual

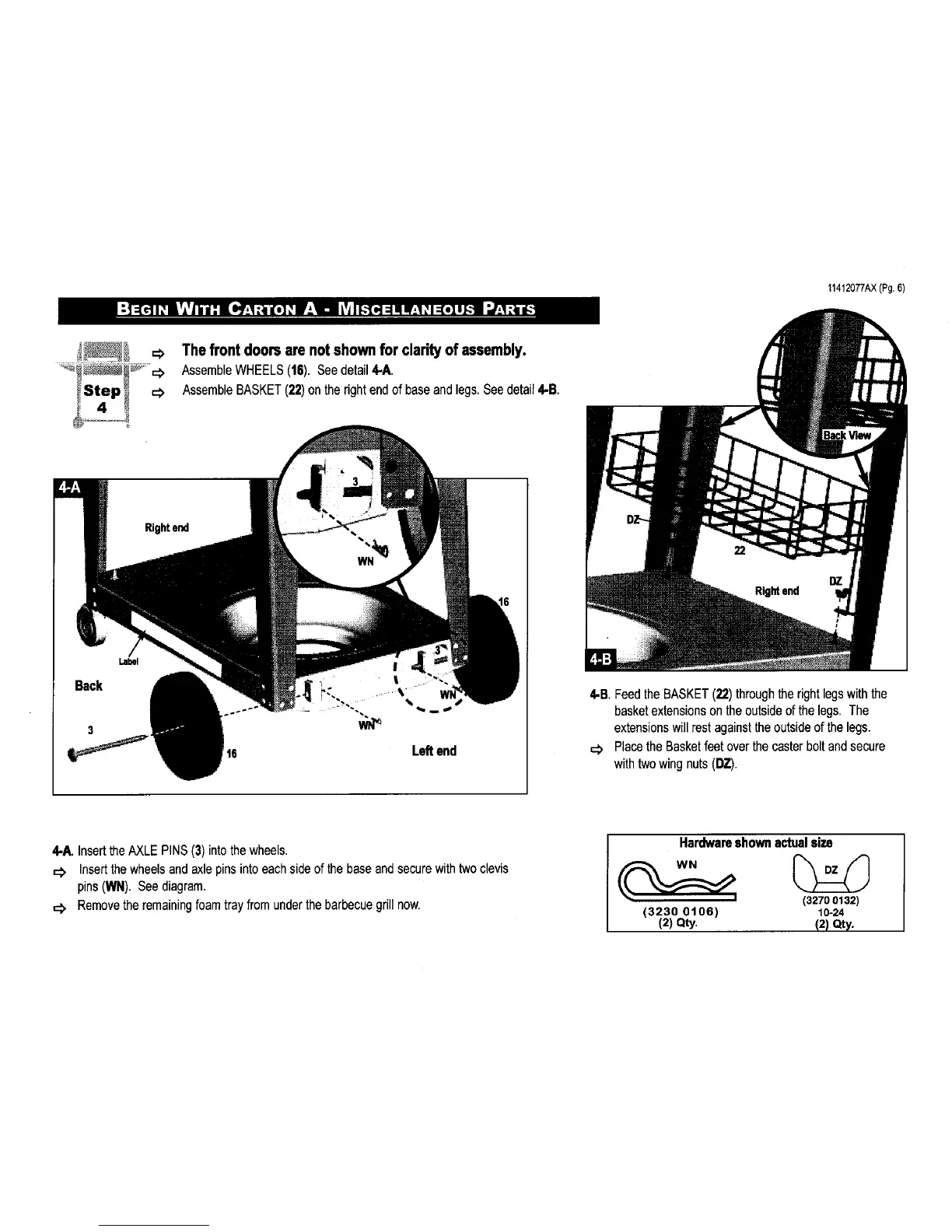

11412077AX(Pg.6)
The front doors are not shown for clarity of assembly.
=:> AssembleWHEELS(16). Seedetail 4-A.
<> AssembleBASKET(22)on the right endof baseand legs, Seedetair4-B.
Back
3
Label
Legend
4-B Feedthe BASKET(22)throughthe right legs with the
basketextensionson the outsideof the legs, The
extensionswill rest againstthe outsideof the legs.
=:> Placethe Basketfeet over the caster bolt andsecure
with twowing nuts(DZ).
4-A. Insertthe AXLEPINS(3) into thewheels.
=:> Insertthe wheelsand axle pins into eachside of the baseand securewith twoclevis
pins(WN). Seediagram.
Removethe remainingfoamtrayfrom underthe barbecuegrill now.
Hardwareshownactualsize
(3230 0106)
(2) Qty.
(3270 0132)
10-24
(2)Qty.
