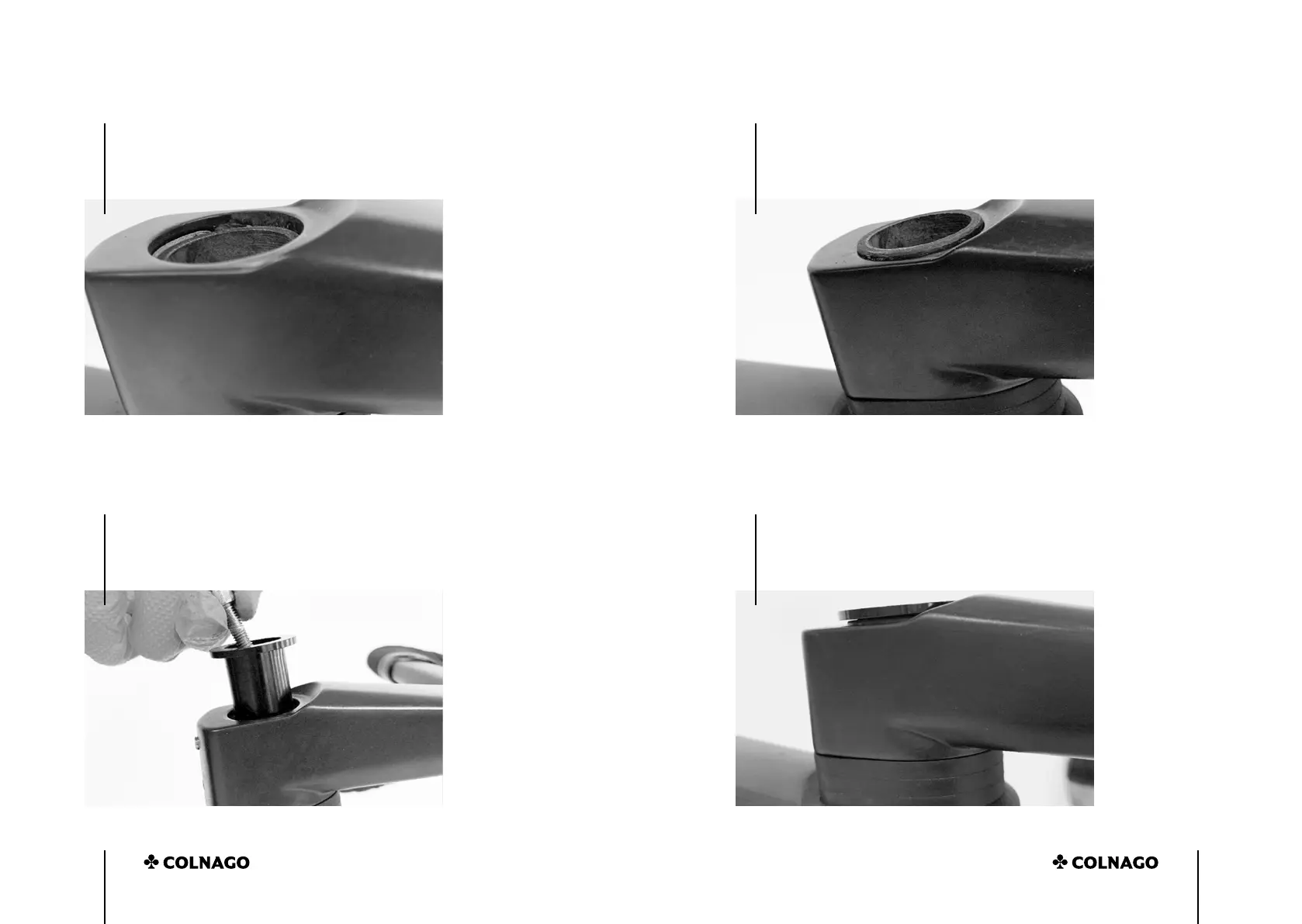

Correct mounting of the handlebar on the headset: the gap (2
millimeters) between the fork tube and the handlebar upper surface
allows to compress the bearings with the preload sleeve
Insert the metallic sleeve and lock it in position with a 5 millimeters
Allen key.The bolt threads into the expander previously mounted into
the fork tube. Tight it until any play from the headset is eliminated,
but not too much to make the steering rough.
15
16
Incorrect mounting of the handlebar: there’s gap between fork and
handlebar, but the fork is higher than the handlebar upper surface.
Incorrect mounting of the handlebar: there’s gap between fork and
handlebar and the preload sleeve is not able to put load on the
headset bearings.
