Colortrac Gx+28 - Page 7

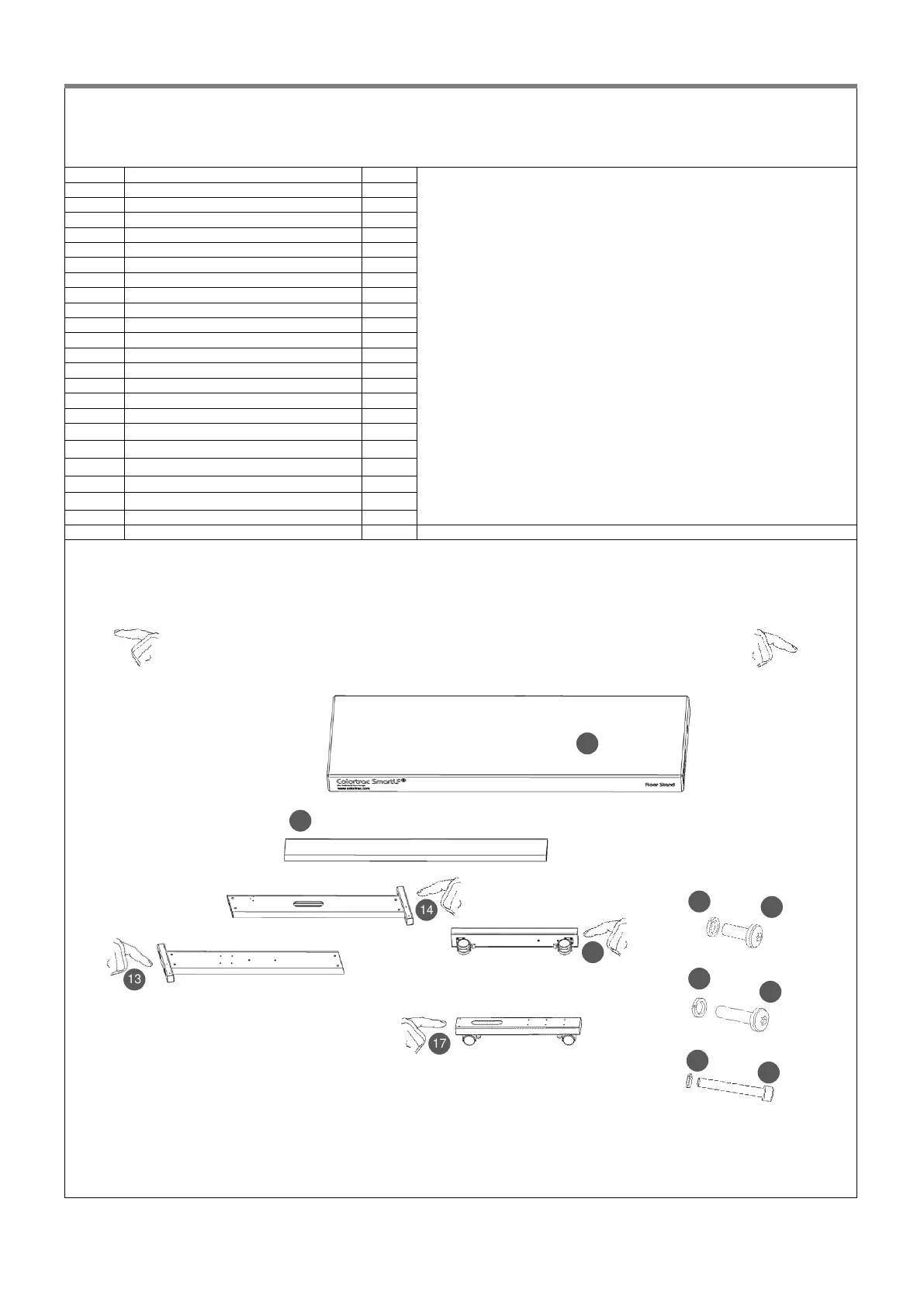

SMARTLF USER INSTRUCTIONS GX+ / GX+T 7
P/N: P005530 Colortrac Ltd © 2011
3
10
ITEM
DESCRIPTION
#
1
Ethernet interface cable
1
2
USB interface cable
1
3
Low voltage power supply
1
4
Mains cord
1
5
Software CD
1
6
Paper guides
3/5
7
User instructions (this document)
1
8
Stitch target
1
9
Normalisation target
1
10
Gx+ (T) scanner
1
11
Magnetic paper guide
1
12
Scanner packaging
1
13
Leg upright (right)
1
14
Leg upright (left)
1
15
Cross piece
1
16
Left foot
1
17
Right foot
1
18
M6x16 black hexagon bolt (feet)
4
19
M6 spring washer
8
20
M6x25 black hexagon bolt (crosspiece)
4
21
M5x40 black hexagon bolt (scanner)
4
22
M5 spring washer
4
23
Scanner stand packaging
1
23
13
14
15
18
LEFT
RIGHT
21
19
19
20
22
16
17
