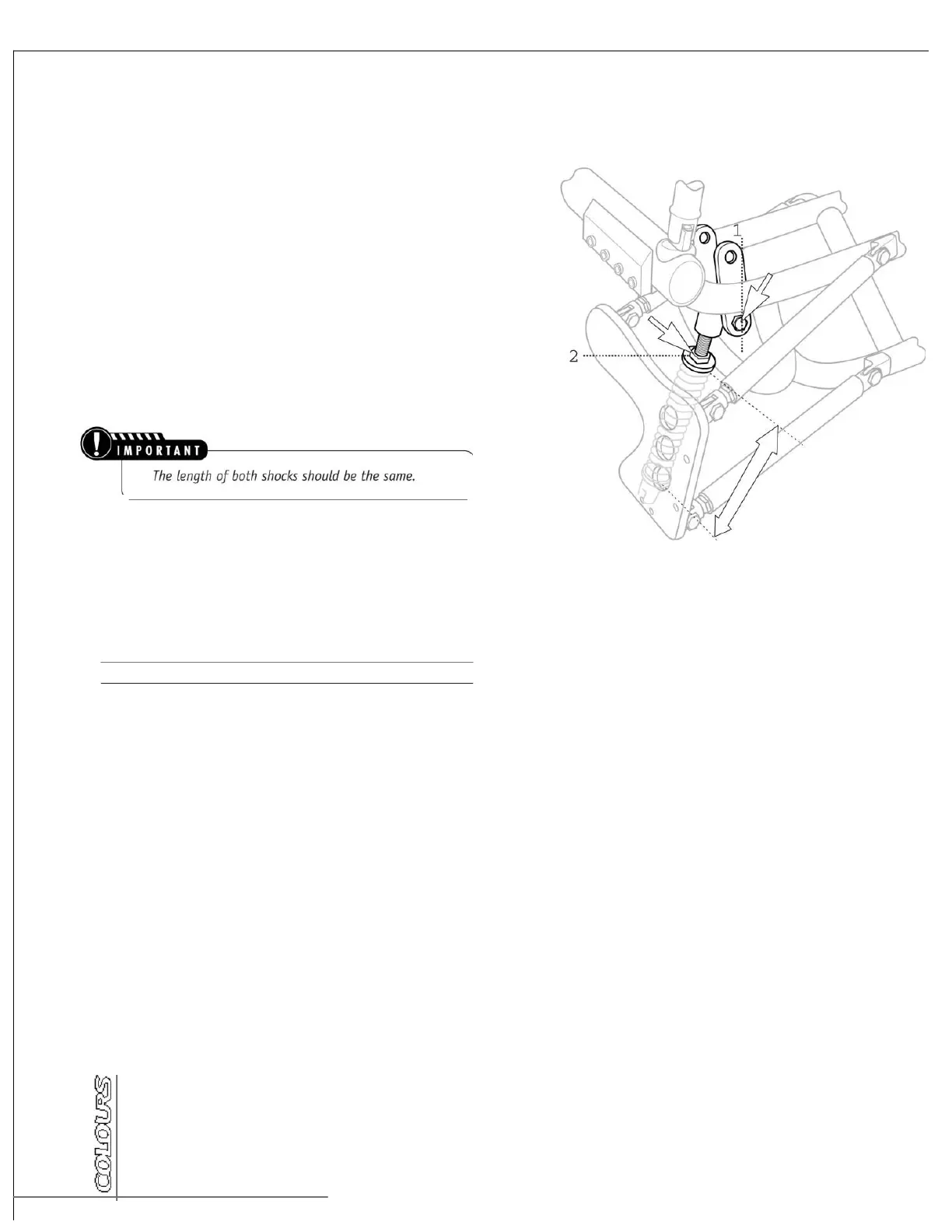

Adjusting the Shocks (Boing! & ShockBLade only)
To extend or decrease the length of the shocks on the Suspension Assembly:
1. Remove the screw securing the top of the shock assembly to the frame .
2.Loosen (to extend pre-load of the spring) or tighten (to decrease pre-
load of the spring) the nut at the top of the shock spring to the desired
setting .
3.Reinstall the shock assembly to the frame.
4.Repeat steps 1 through 3 on the other shoc k .
GETTING IT RIGHT PART 2
Advanced Adjustments
The following adjustments should only be
made by a n authorized Colours deal er . We dis-
cuss them for informational purposes only.
The four sections that make up part two of this
owner's manual are interrelated, hence, if a
single adjustment is made in one section it
will effect the adjustments in the other three
sections. Should a chair r equire a modification
in this section it is imperative that the adjust-
ments be made sequentially .
S EQUE N CE O F A DV ANC ED A DJU S TM E NT S
STEP 1. R E A R S EAT H E I G H T
STEP 2. F R 0 N T S EAT H E I G H T
STEP 3. CAMBER ANGLE
S TEP 4 . WHEEL ALIGNMENT ( TO E -IN I TO E- OUT )
STEP 5 . cAsTE R A N G L E
