.23
.58
14°
SPRING RATE ............................................................... N/A
STRESS RELIEVE AT 450
TOTAL COILS ................................................................ 12.5
LOAD AT COMPRESSED LENGTH OF ........................ N/A
LOAD AT COMPRESSED LENGTH OF ........................ N/A
DIRECTION OF HELIX ................................................... CCW
TYPE OF ENDS ............................................................. IAW DRAWING DIMENSIONS
HOLE DIA INTO WHICH SPRING FITS FREELY ......... N/A
ROD DIA OVER WHICH SPRING SLIDES FREELY .... N/A
SOLID LENGTH ............................................................. N/A
MINUTES AFTER FORMING.
2. F FOR 30
DIAMETER OF WIRE ..................................................... .047 .001
DIAMETER OF COIL (OD) ............................................. N/A
FREE LENGTH ............................................................. 7.12
ACTIVE COILS ............................................................... 11.5
NOTES:
MANUFACTURE IAW TYPE 1, GRADE A, 1.
OF SAE AS13572.
REVISION HISTORY
REV DESCRIPTION DATE APPRVD
DIM & TOL IAW ASME Y14.5 - 1994.
HEAT TREAT
THIRD ANGLE PROJECTION
6008607
SEE NOTE 2
Benson Consulting, LLP
―
Gastonia, NC 28054
Benson Consulting, LLP

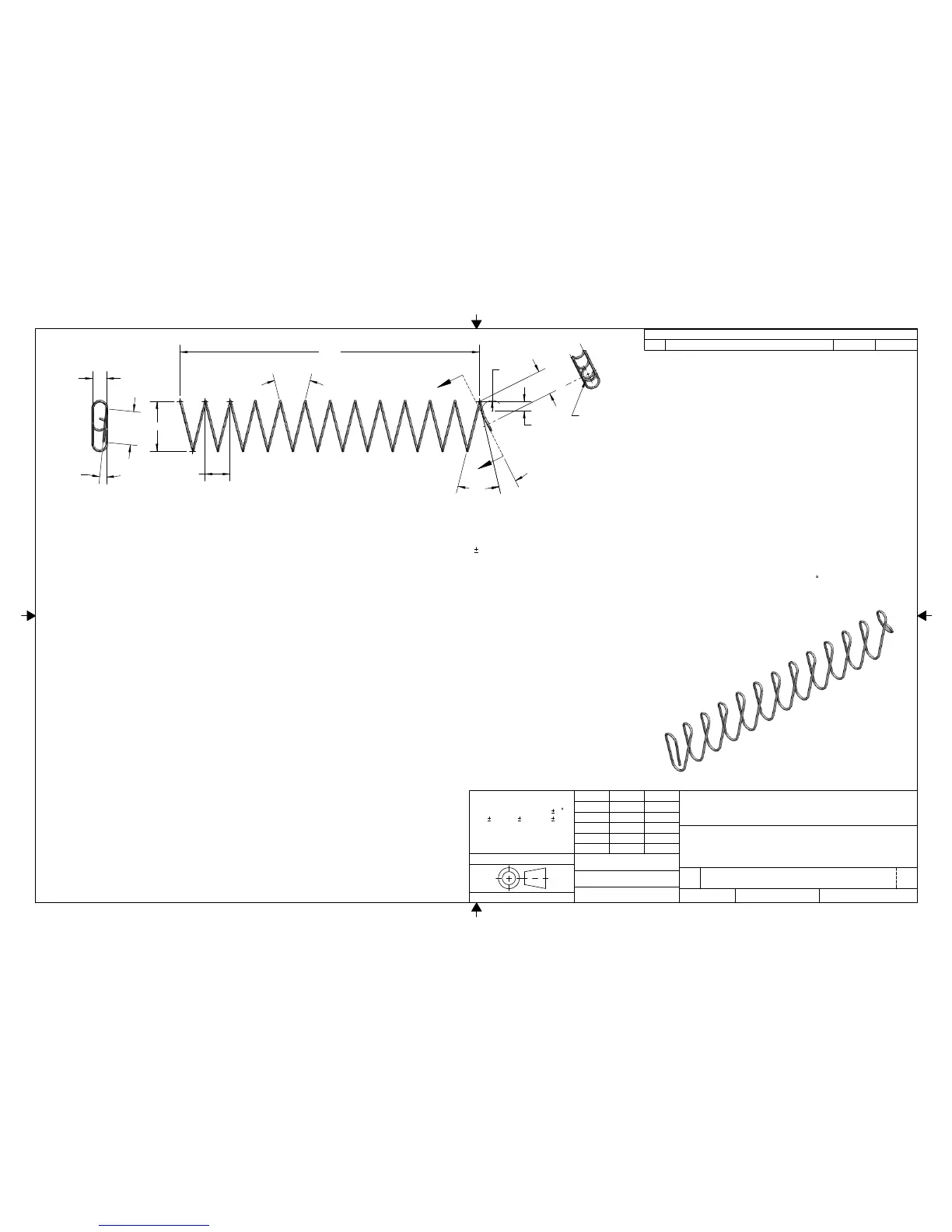

SPRING, MAGAZINE
QA
MFG
ENGRG
DRAWN
MODELED 9/29/2010
IS PROHIBITED.
SHEET 1 of 1SCALE: 3:4
1st MADE FOR: M1911-A1 REDUX
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
.
MUSIC WIRE, STEEL, ASTM A228
B
WEIGHT: 0.00 LB
10/04/2010
R Benson
R Benson
DO NOT SCALE DRAWING
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE AND INTELLECTUAL PROPERTY OF
1-704-860-1202
Benson Consulting, LLP
REV
DWG NO
SIZE
TITLE
FINISH
MATERIAL
DATEBY
-
rhbenson@earthlink.net
• •
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES.
TOLERANCE: ANGULAR .5 ,
2 PL .01, 3 PL .005, 4 PL .0005.
SYMM & CONC: 1/2 FEATURE TOL.
FAB FINISH: 125 MICROINCH.
BRK/FIL SHARP COR .01 MAX.
27°
R.25
.59
1.18
12X
28.3°12X
7.12
A
A
.79
6°
.33
SECTION A-A
R.16
