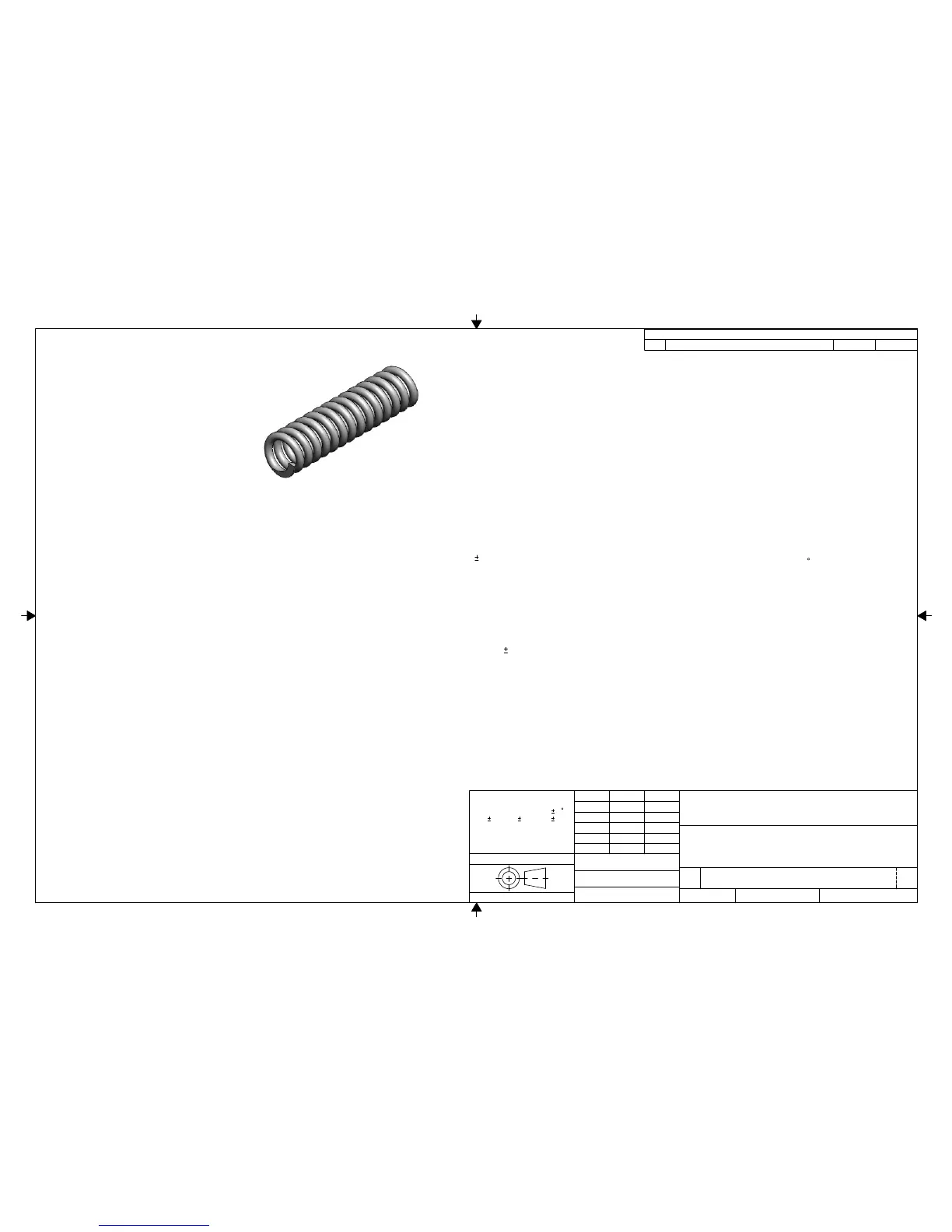

colt 1911 - Spring, Plunger

SOLID LENGTH ............................................................. .279 MAX
TYPE OF ENDS ............................................................. SQUARED & GROUND
DIRECTION OF HELIX ................................................... CCW
ROD DIA OVER WHICH SPRING SLIDES FREELY ..... ----- MAX
STRESS RELIEVE AT 450
HOLE DIA INTO WHICH SPRING FITS FREELY ......... .109 MIN
F FOR 20
SPRING RATE ............................................................... (.160 LB/INCH)
.50 LB
2.
MINUTES AFTER FORMING.
LOAD AT COMPRESSED LENGTH OF ........................ .400 = 2.50
DIAMETER OF WIRE ..................................................... .018
DIAMETER OF COIL (OD) ............................................. .104 .003
FREE LENGTH ............................................................. (.593)
ACTIVE COILS ............................................................... 12.5
TOTAL COILS ................................................................ 14.5
NOTES:
MANUFACTURE IAW TYPE 1, GRADE A, 1.
OF SAE AS 13572.
REVISION HISTORY
REV DESCRIPTION DATE APPRVD
5013194
HEAT TREAT
SEE NOTE 2
08/29/2010
R Benson
THIRD ANGLE PROJECTION
DIM & TOL IAW ASME Y14.5 - 1994.
―
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
ENGRG
DRAWN
MODELED
IS PROHIBITED.
SHEET 1 of 1
WEIGHT: 0.00 LBSCALE: 8:1
X
MUSIC WIRE, STEEL, ASTM A228
Benson Consulting, LLP
Benson Consulting, LLP.
1st MADE FOR: M1911-A1 REDUX
SPRING, PLUNGER
B
08/29/2010 R Benson
DO NOT SCALE DRAWING
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE AND INTELLECTUAL PROPERTY OF
1-704-860-1202
Benson Consulting, LLP
REV
DWG NO
SIZE
TITLE
FINISH
MATERIAL
DATEBY
QA
MFG
••
rhbenson@earthlink.net Gastonia, NC 28054
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES.
TOLERANCE: ANGULAR .5 ,
2 PL .01, 3 PL .005, 4 PL .0005,
SYMM & CONC: 1/2 FEATURE TOL.
FAB FINISH: 125 MICROINCH.
BRK/FIL SHARP COR .005 MAX.
MODEL SHOWN COMPRESSED FOR ASSEMBLY
