OPERATOR'S
&
MAINTENANCE
MANUAL
page
a.

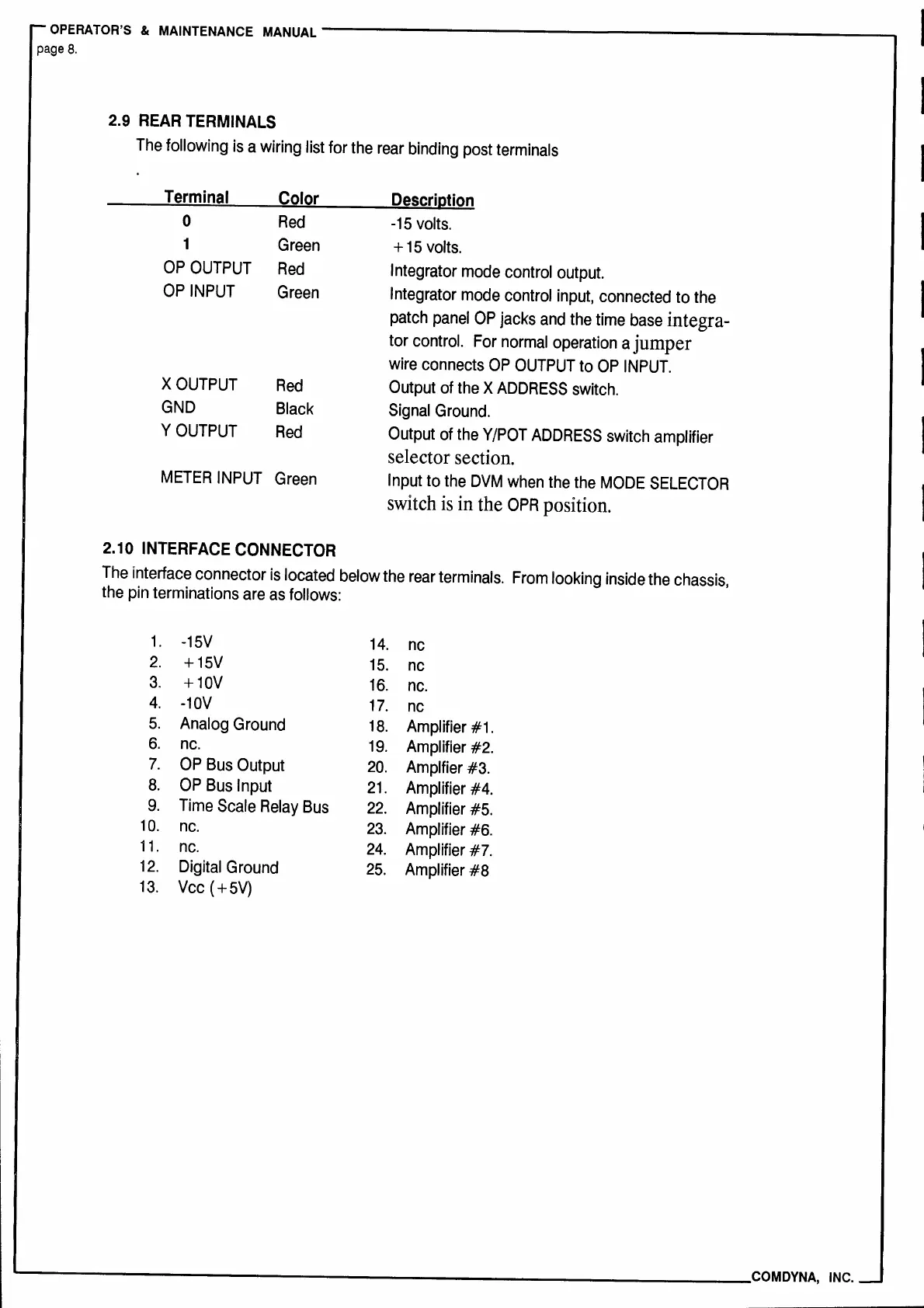

2.9
REAR
TERMINALS
The
following
is
a
wiring
list for
the
rear
binding
post
terminals
Terminal
0
1
OP
OUTPUT
OP
INPUT
Color
Red
Green
Red
Green
X
OUTPUT
Red
GND
Black
Y
OUTPUT
Red
METER
INPUT
Green
2.10
INTERFACE
CONNECTOR
Description
-15
volts.
+
15
volts.
Integrator
mode
control
output.
Integrator
mode
control
input,
connected
to
the
patch
panel
OP
jacks
and
the
time
base
integra-
tor
control.
For
normal
operation
a
jumper
wire
connects
OP
OUTPUT
to
OP
INPUT.
Output
of
the
X
ADDRESS
switch.
Signal
Ground.
Output
of
the
Y/POT
ADDRESS
switch
amplifier
selector
section.
Input
to
the
DVM
when
the the
MODE
SELECTOR
switch
is
in
the
OPR
position.
The
interface
connector
is
located
below
the
rear
terminals.
From
looking
inside
the
chassis,
the
pin
terminations
are
as
follows:
1.
-15V
14.
nc
2.
+15V
15.
nc
3.
+10V
16.
nc.
4.
-10V
17.
nc
5.
Analog
Ground
18.
Amplifier
#1.
6.
nc.
19.
Amplifier
#2.
7.
OP
Bus
Output
20.
Amplfier
#3.
8.
OP
Bus
Input
21.
Amplifier
#4.
9.
Time
Scale
Relay
Bus
22.
Amplifier
#5.
10.
nc.
23.
Amplifier
#6.
11.
nc.
24.
Amplifier
#7.
12.
Digital
Ground
25.
Amplifier
#8
13.
Vee
(
+5V)
----------------------------------COM
DYNA,
INC.
