8.3 Indications setting
The DT12EAM has 3 LEDs that each points at different indication:
1. Green LED indicates PIR detection.
2. Yellow LED indicates MW detection.
3. Red LED - alarm indication (logic AND of both MW and PIR)
The installer has an option to control LEDs operation, using the LED control on SW2
position 1, between “ON” and “OFF”. Or by apply 9.6-16v to terminal block position 3
("test")
•

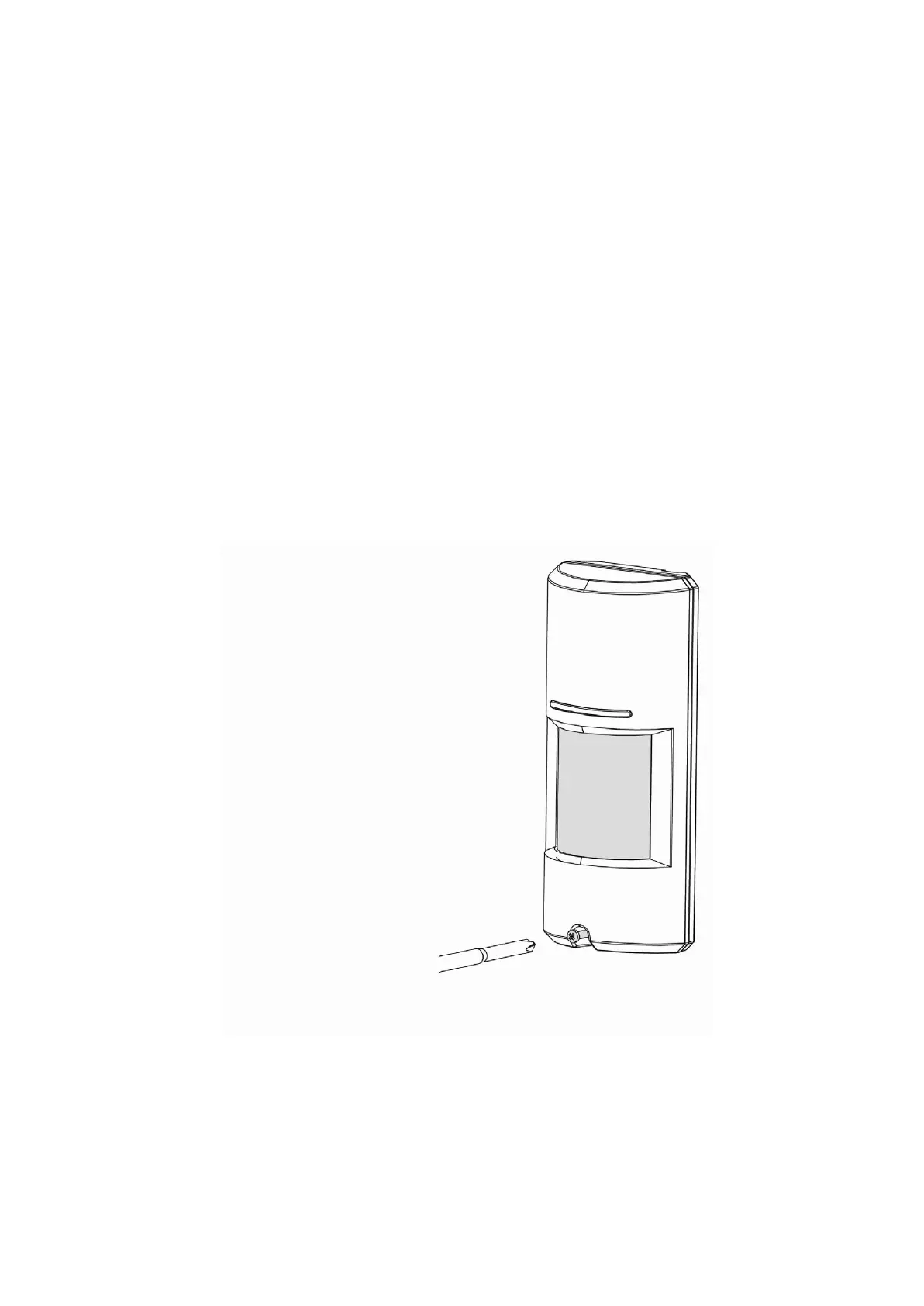

Place the top cover to the base and close it using the bottom screw.
