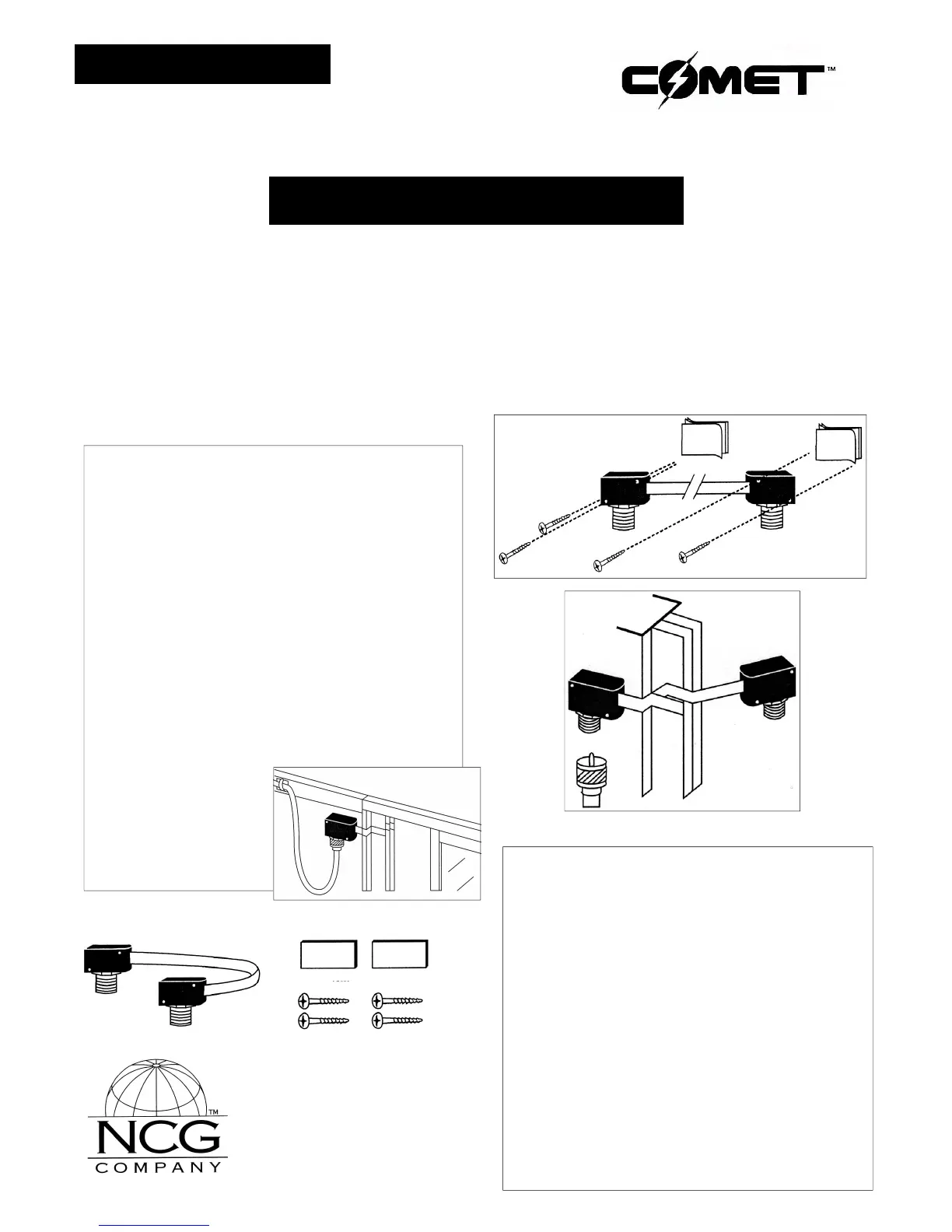

Window feed-thru jumper
CTC-50M
INSTRUCTIONS
Features:
The CTC-50M avoids drilling holes through the wall to
route coax indoors from an outside antenna
Low loss SO-239 connectors are used
Use any grade 50 Ohm impedance coax to attach to
the CTC-50M
Installation:
Installation:Installation:
Installation:
It is important to the use the double-faced tape or the
screws (or both) included with the CTC-50M to secure the
jumper to the wall before use.
Clean the surface of dust, loose paint, etc… before using
the tape.
Place the CTC-50M along the window frame and close the
window before securing the CTC-50M in place with the tape
and/or screws. Attaching the jumper and closing the win-
dow before confirming the window will close completely
may damage the jumper.
Be sure to use PL-259 (Male UHF) connectors on your coax
to screw into the SO-239 (Female UHF) connectors on the
CTC-50M
Attach your coax cable to the
wall securely making sure to
avoid any pressure on the
CTC-50M jumper.
***Warning****
***Warning*******Warning****
***Warning****
The copper-clad steel center core is highly resis-
tant to metal fatigue but is not indestructible.
Please use care when opening and closing the win-
dow or door where the CTC-50M is located
.
Specifications:
Specifications:Specifications:
Specifications:
Frequency: DC—1300MHz
Max Power: HF-50MHz 100W PEP
144MHz: 60W FM
440MHz: 40W FM
1200MHz: 10W FM
VSWR: < 500 MHz: Less than 1.3:1
> 500 MHz: Less than 1.5:1
Impedance: 50 Ohm
Insertion Loss: DC-500MHz Less than 0.5dB
500-900MHz Less than 1.3dB
900-1300MHz Less than 1.8dB
Connectors: SO-239 (Female UHF)
Cable Length: 16 inches (approx)
Parts List:
15036 Sierra Bonita Lane
Chino, CA 91710
800-962-2611
909-393-6133
Fax 909-393-6136
