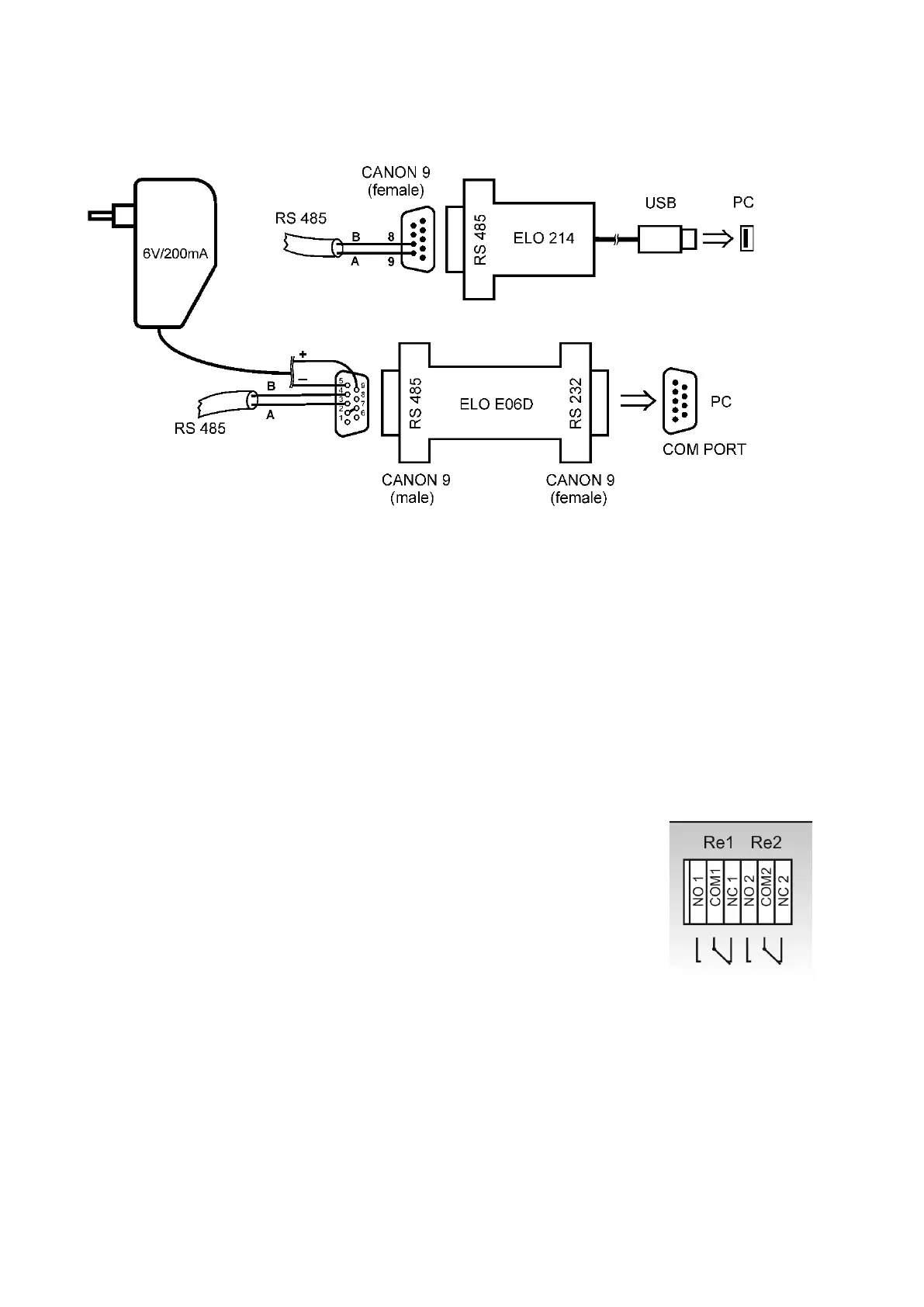

Connection of ELO E06D (RS232/RS485) and ELO 214 (USB/RS485) converters
The ELO E06D converter is an optional accessory for connection of transmitter with
RS485 interface to the PC via serial port RS232. Connect connector marked RS232 directly to the
PC, connect power to connector marked RS485. Power voltage +6V DC from an external acdc
adapter connect to pin 9, 0V connect to pin 5. Also mutually connect pin 2 and pin 7. Link RS485
is connected across pin 3 (A+) and pin 4 (B-).
The ELO 214 converter is an optional accessory for connection of transmitter with RS485
interface to the PC via USB port. Link RS485 is connected across pin 9 (A+) and pin 8 (B-).
12. Appendix B
Wiring diagram of relay contacts for devices with serial number
lower than 16981000.
