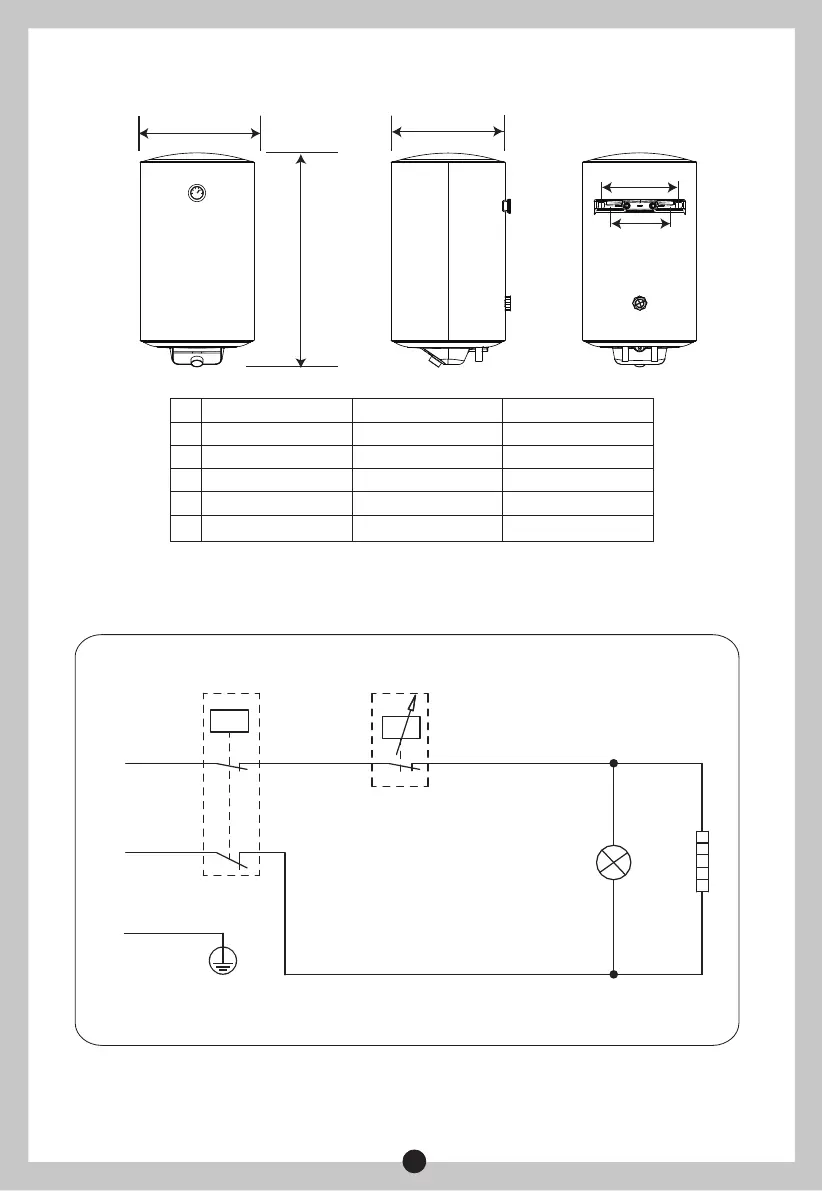

2.3 Brief introduction of product structure
2.4 Internal Wire Diagram
(Note:All dimensions are in mm)
B
A
C
WIRING DIAGRAM
E
N
L
Q
Q
Heating Element
Thermal
Cut Out
Thermostat
Brown
Blue
Yellow/Green
Heating indicator light
D1
D2
A
B
C
D1
27L
340
340
278
47L
385
385
278
74L
450
450
278
610 755 812
D2
130-310 130-310 130-310
