Commax DP2SDR2GN User Manual

3
① VOLUME CONTROL
② HANDSET
③ DOOR RELEASE BUTTON
④ S-CORD
⑤ POWER CORD
SCREW T4X50 (2EA)
(1)
(2)
(3)
1. Non polarity wiring with Sub
2. Door Release(3) should
Unit(1) and Master Unit (2).
additional power source.

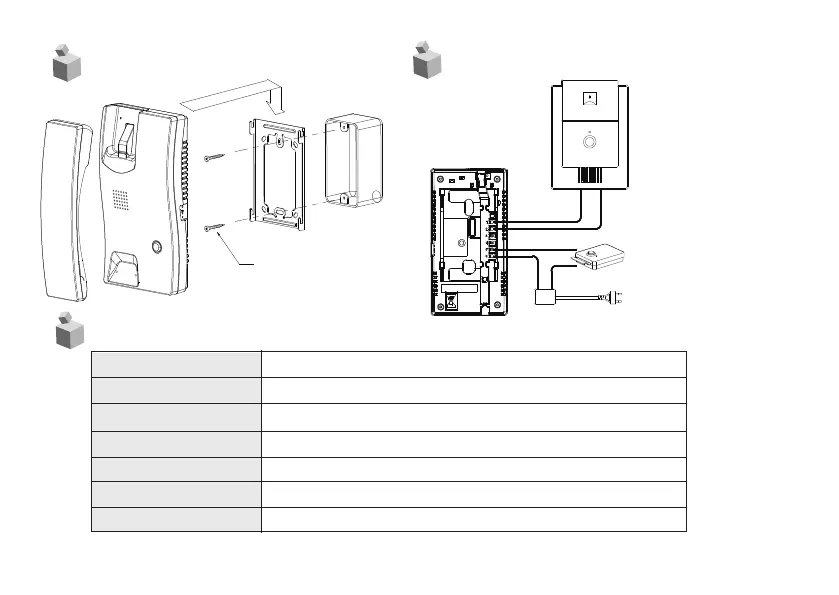

4. Installation
5. W iring
be provided with
6. Specification
Model DP-2S
Power Source 100/110/120/220/230/240V~, 50/60Hz
Consumption Power
4.5W(MAX)
Distance 100m( Ø0.65mm), 150m( Ø0.8mm)
Wiring Call : 2-wire, Door Release : 2-wire(Ø 1.6mm Copper wire)
Dimension(mm) 108(W)°X210(H)°X61.4(D)mm
Weight(g) 640g

Commax DP2SDR2GN Specifications

General

Brand	Commax
Model	DP2SDR2GN
Category	Intercom System
Language	English
