PRESSURE PAD MOUNT
READ/WRITE HEAD

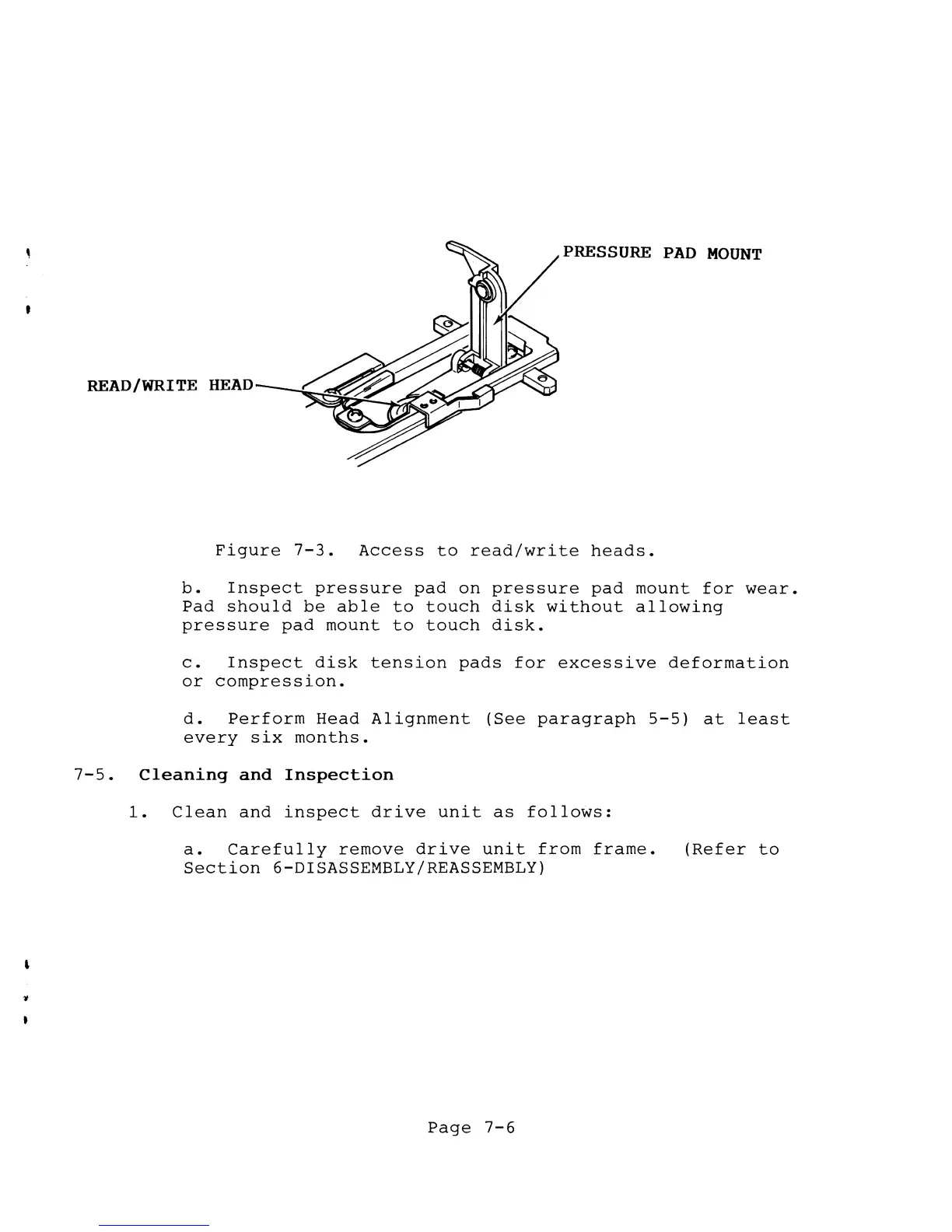

Figure 7-3. Access to read/write heads.
b. Inspect pressure pad on pressure pad mount for wear.
Pad should be able to touch disk without allowing
pressure pad mount to touch disk.
c. Inspect disk tension pads for excessive deformation
or compression.
d. Perform Head Alignment (See paragraph 5-5) at least
every six months.
7-5. Cleaning and Inspection
1. Clean and inspect drive unit as follows:
a. Carefully remove drive unit from frame.
Section 6-DISASSEMBLY/REASSEMBLY)
Page 7-6
(Refer to
