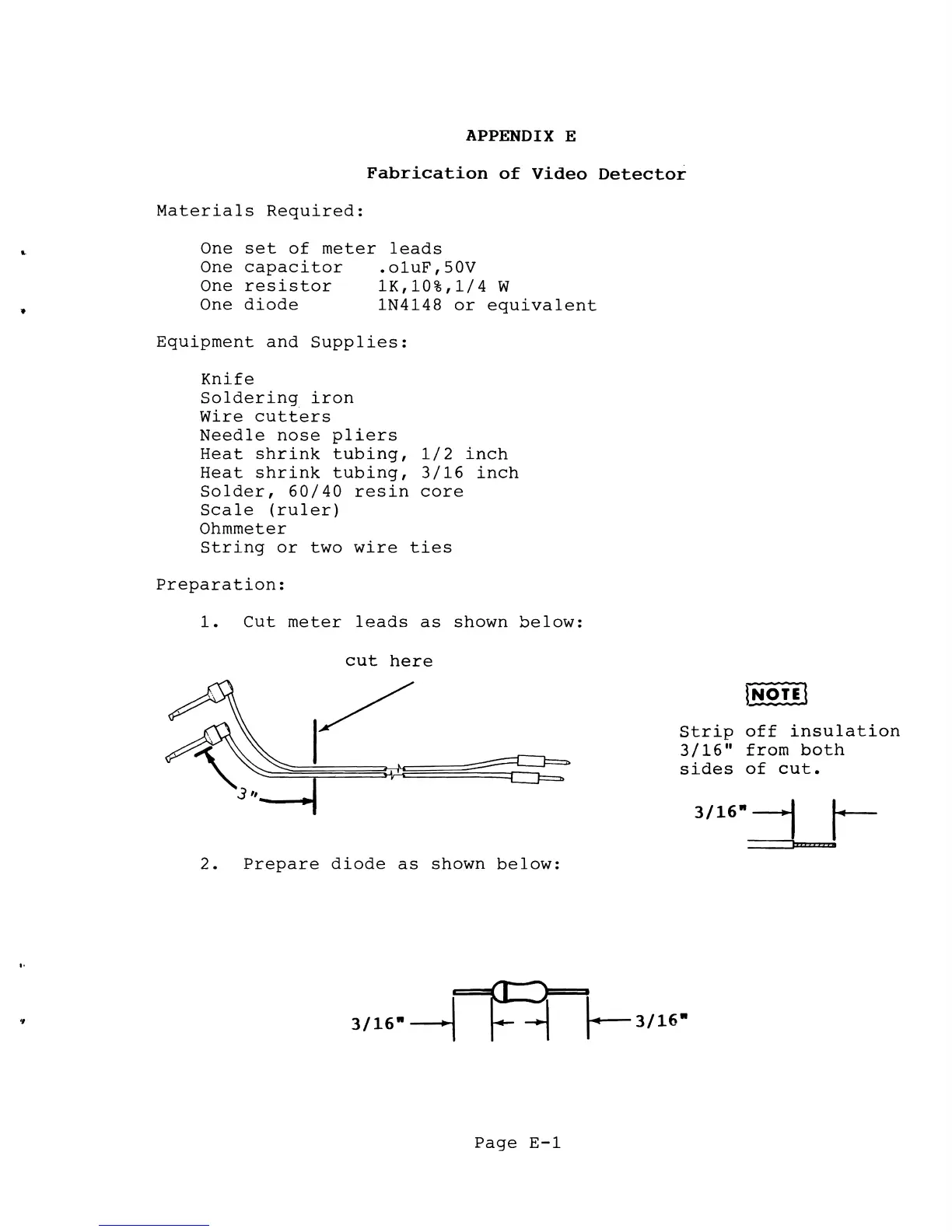

APPENDIX E
Fabrication of Video Detector
Materials Required:
One set of meter leads
One capacitor .oluF,SOV
One resistor lK,10%,1/4 W
One diode 1N4148 or equivalent
Equipment and Supplies:
Knife
Soldering iron
Wire cutters
Needle nose pliers
Heat shrink tubing, 1/2 inch
Heat shrink tubing, 3/16 inch
Solder, 60/40 resin core
Scale (ruler)
Ohmmeter
String or two wire ties
Preparation:
1. Cut meter leads as shown below:
cut here
2. Prepare diode as shown below:
Strip off insulation
3/16" from both
sides of cut.
3/16" -j
3/16"-1~~3/16"
Page E-1
