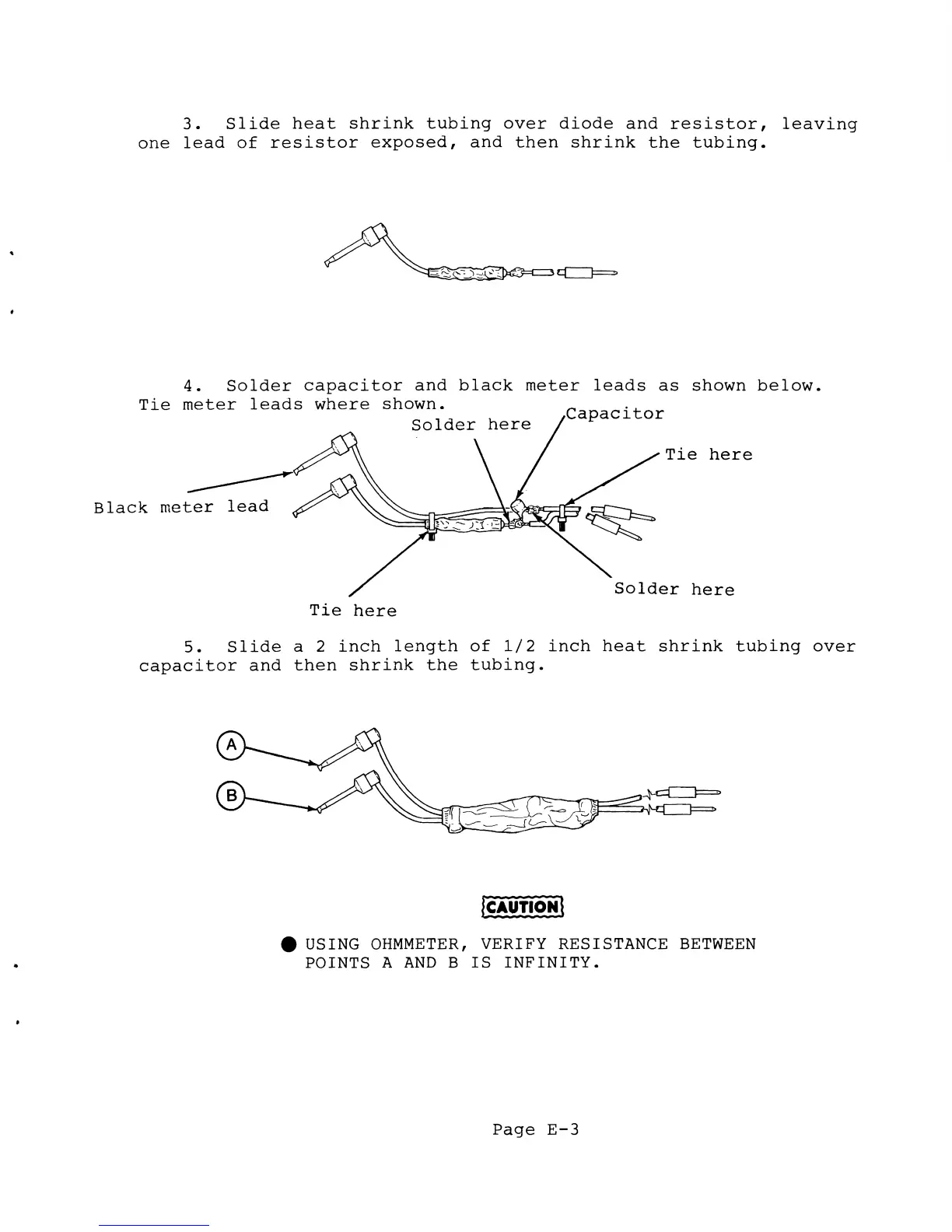

3. Slide heat shrink tubing over diode and resistor, leaving
one lead of resistor exposed, and then shrink the tubing.
4. Solder capacitor and black meter leads as shown below.
Tie meter leads where shown.
Capacitor
Black meter lead
Solder here
Tie here
Solder here
Tie here
5. Slide a 2 inch length of 1/2 inch heat shrink tubing over
capacitor and then shrink the tubing .
• USING OHMMETER, VERIFY RESISTANCE BETWEEN
POINTS A AND BIS INFINITY.
Page E-3
