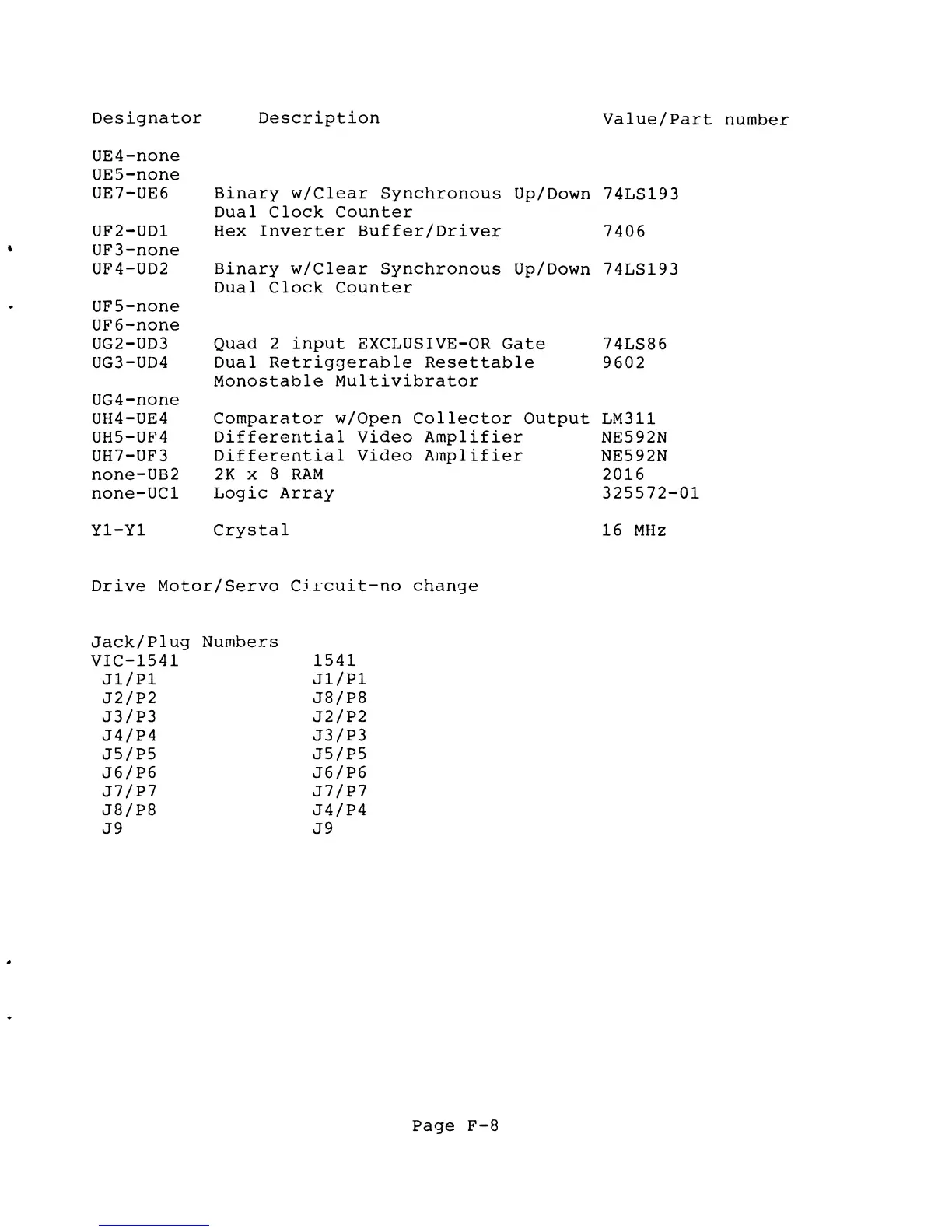

Designator
UE4-none
UE5-none
UE7-UE6
UF2-UD1
UF3-none
UF4-UD2
UF5-none
UF6-none
UG2-UD3
UG3-UD4
UG4-none
UH4-UE4
UH5-UF4
UH7-UF3
none-UB2
none-UCl
Yl-Yl
Description
Value/Part number
Binary w/Clear Synchronous Up/Down 74LS193
Dual Clock Counter
Hex Inverter Buffer/Driver 7406
Binary w/Clear Synchronous Up/Down 74LS193
Dual Clock Counter
Quad 2 input EXCLUSIVE-OR Gate
Dual Retriggerable Resettable
Monostable Multivibrator
Comparator w/Open Collector Output
Differential Video Amplifier
Differential Video Amplifier
2K x 8 RAM
Logic Array
Crystal
74LS86
9602
LM311
NE592N
NE592N
2016
325572-01
16 MHz
Drive Motor/Servo Cjrcuit-no change
Jack/Plug Numbers
VIC-1541
Jl/Pl
J2/P2
J3/P3
J4/P4
J5/P5
J6/P6
J7/P7
J8/P8
J9
1541
Jl/Pl
J8/P8
J2/P2
J3/P3
J5/P5
J6/P6
J7/P7
J4/P4
J9
Page F-8
