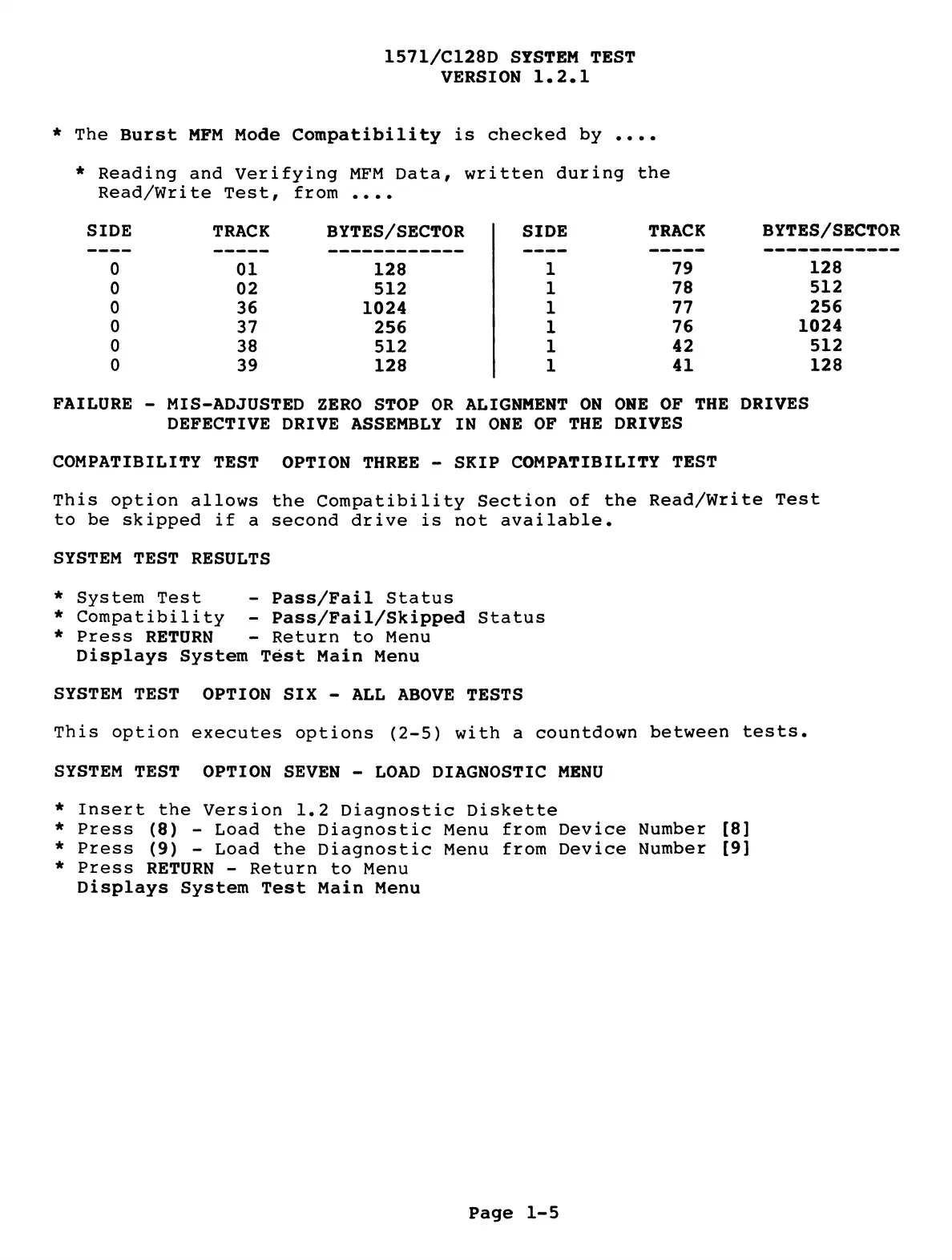

1571/C128D SYSTEM TEST
VERSION 1.2.1
* The Burst MEM Mode Compatibility is checked by ....
* Reading and Verifying MFM Data, written during the
Read/Write Test, from ....
SIDE
TRACK
BYTES/SECTOR
SIDE
TRACK BYTES/SECTOR
0
01 128
1
79
128
0 02 512 1
78
512
0 36
1024
1 77
256
0
37
256 1
76
1024
0
38 512
1
42
512
0
39 128
1
41
128
FAILURE - MIS-ADJUSTED ZERO STOP OR ALIGNMENT ON ONE OF THE DRIVES
DEFECTIVE DRIVE ASSEMBLY IN ONE OF THE DRIVES
COMPATIBILITY TEST OPTION THREE - SKIP COMPATIBILITY TEST
This option allows the Compatibility Section of the Read/Write Test
to be skipped if a second drive is not available.
SYSTEM TEST RESULTS
* System Test - Pass/Fail Status
* Compatibility - Pass/Fail/Skipped Status
* Press RETURN - Return to Menu
Displays System Test Main Menu
SYSTEM TEST OPTION SIX - ALL ABOVE TESTS
This option executes options (2-5) with a countdown between tests.
SYSTEM TEST OPTION SEVEN - LOAD DIAGNOSTIC MENU
* Insert the Version 1.2 Diagnostic Diskette
* Press (8) - Load the Diagnostic Menu from Device Number [8]
* Press (9) - Load the Diagnostic Menu from Device Number [9]
* Press RETURN - Return to Menu
Displays System Test Main Menu
