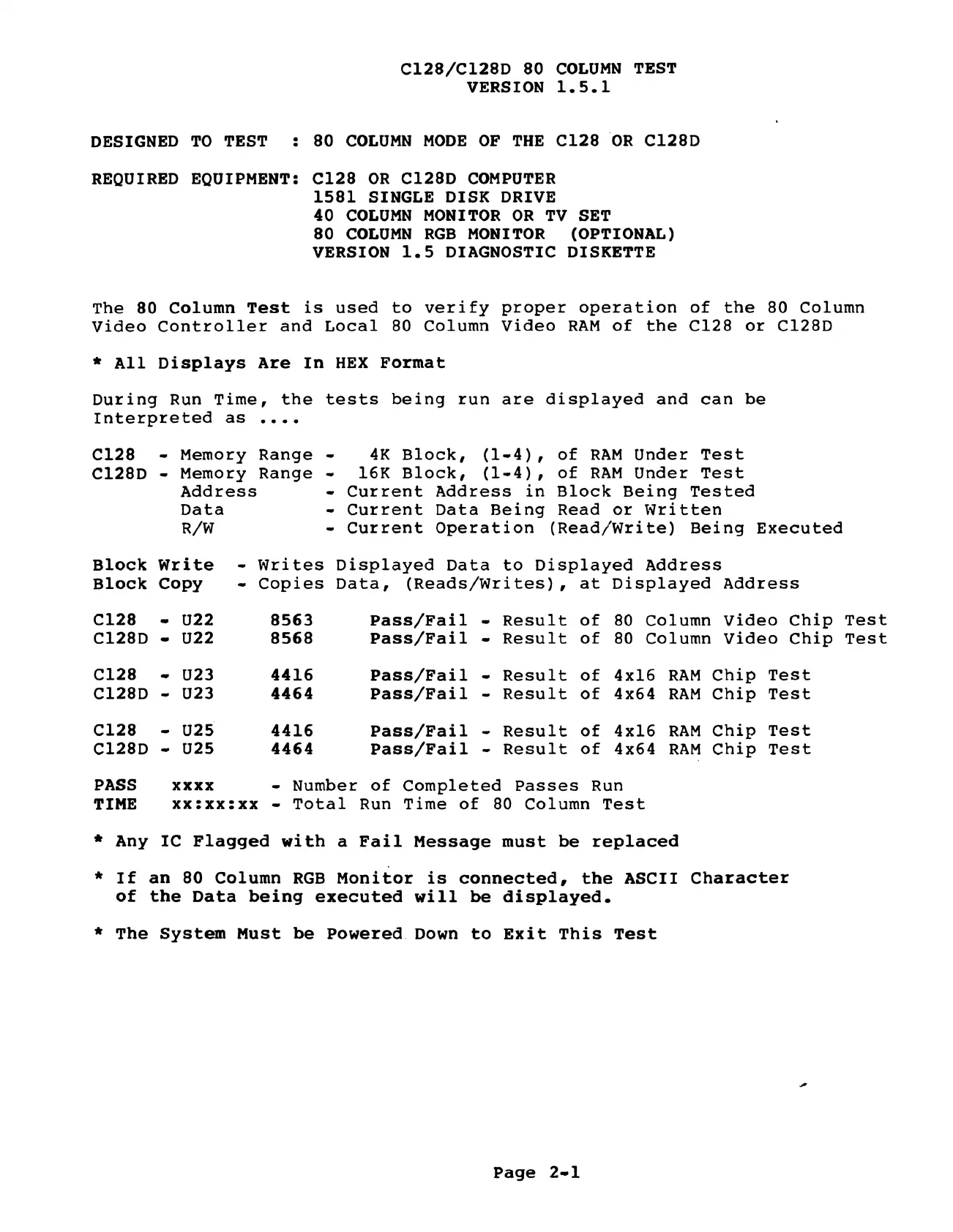

C128/C128D 80 COLUMN TEST
VERSION 1.5.1
DESIGNED TO TEST : 80 COLUMN MODE OF THE C128 OR C128D
REQUIRED EQUIPMENT: C128 OR C128D COMPUTER
1581 SINGLE DISK DRIVE
40 COLUMN MONITOR OR TV SET
80 COLUMN RGB MONITOR (OPTIONAL)
VERSION 1.5 DIAGNOSTIC DISKETTE
The 80 Column Test is used to verify proper operation of the 80 Column
Video Controller and Local 80 Column Video RAM of the C128 or C128D
* All Displays Are In HEX Format
During Run Time, the tests being run are displayed and can be
Interpreted as ....
C128 - Memory Range
C128D - Memory Range
4K Block, (1-4), of RAM Under Test
16K Block, (1-4), of RAM Under Test
Address - Current Address in Block Being Tested
Data - Current Data Being Read or Written
R/W - Current Operation (Read/Write) Being Executed
Block Write - Writes Displayed Data to Displayed Address
Block Copy ~ Copies Data, (Reads/Writes), at Displayed Address
C128 - U22 8563 Pass/Fail - Result of 80 Column Video Chip Test
C128D - U22 8568 Pass/Fail - Result of 80 Column Video Chip Test
C128 - U23 4416 Pass/Fail ~ Result of 4x16 RAM Chip Test
C128D - U23 4464 Pass/Fail - Result of 4x64 RAM Chip Test
C128 - U25 4416 Pass/Fail - Result of 4x16 RAM Chip Test
C128D - U25 4464 Pass/Fail - Result of 4x64 RAM Chip Test
PASS XXXxX - Number of Completed Passes Run
TIME xxexx2xx - Total Run Time of 80 Column Test
* Any IC Flagged with a Fail Message must be replaced
* If an 80 Column RGB Monitor is connected, the ASCII Character
of the Data being executed will be displayed.
* The System Must be Powered Down to Exit This Test
