INSTALLATION
38
INSTALLATION
1. Solar Pump Inverter Graph
1.1 Power Range 0.75-30kw

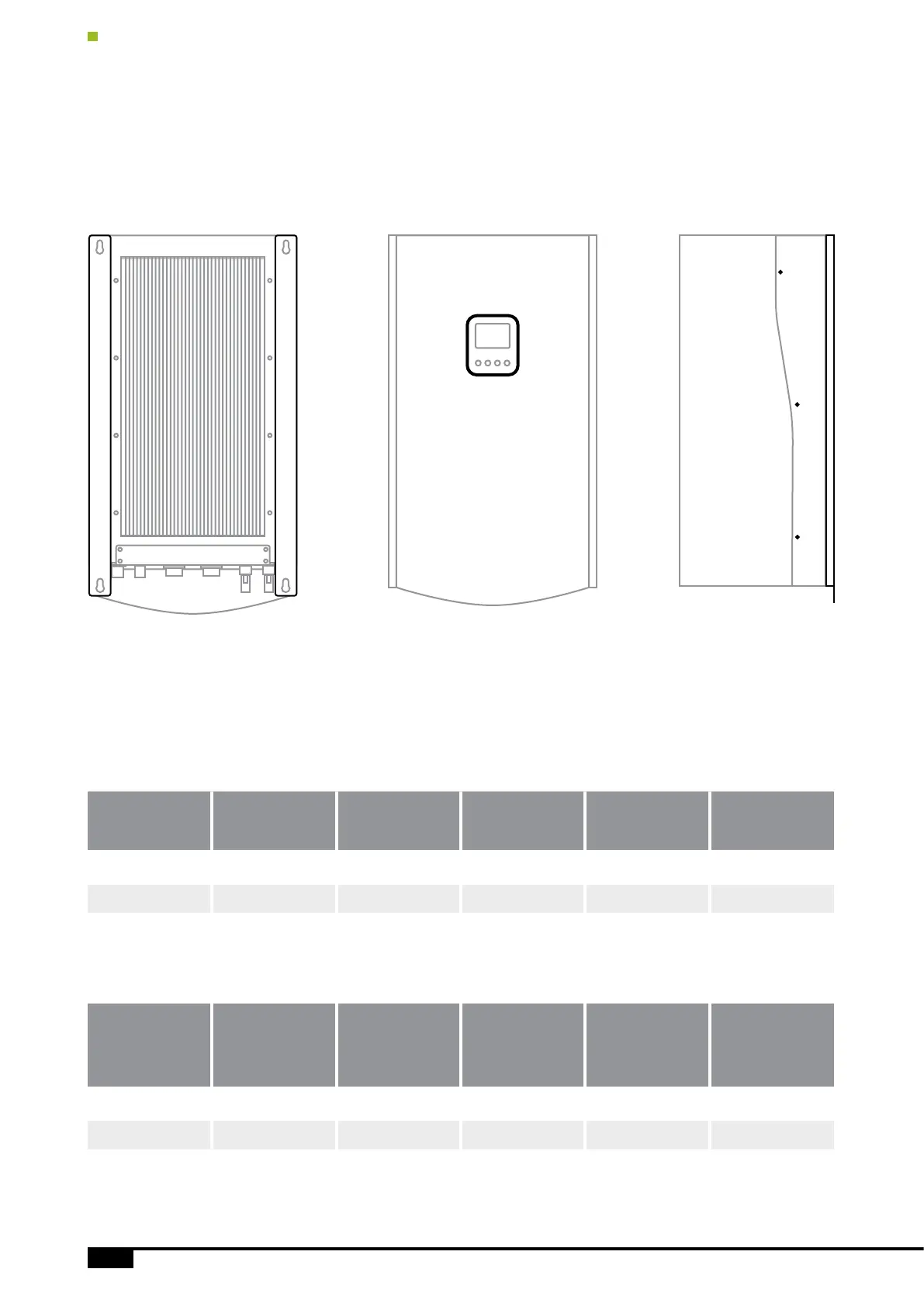

0.75-30kw solar pumping inverter box structure
Power L (mm) W (mm) H (mm)
Fix Hole L1
(mm)
Fix Hole
W1 (mm)
0.75kw 420 240 152 390 207
1.5-15kw 465 274 185 435 240
18.5-30kw 420 240 150 390 207
Dimensions:
Power
DC Input
Connector
Ac Input
Connector
AC Output
Connector
Tank
Sensor
Connector
Well
Sensor
Connector
0.75kw-2.2kw 1 pair +- 1 1 1 1
3.7-15kw 2 pairs +- 1 1 1 1
18.5-30kw 3 pairs +- 1 1 1 1
Accessories:
